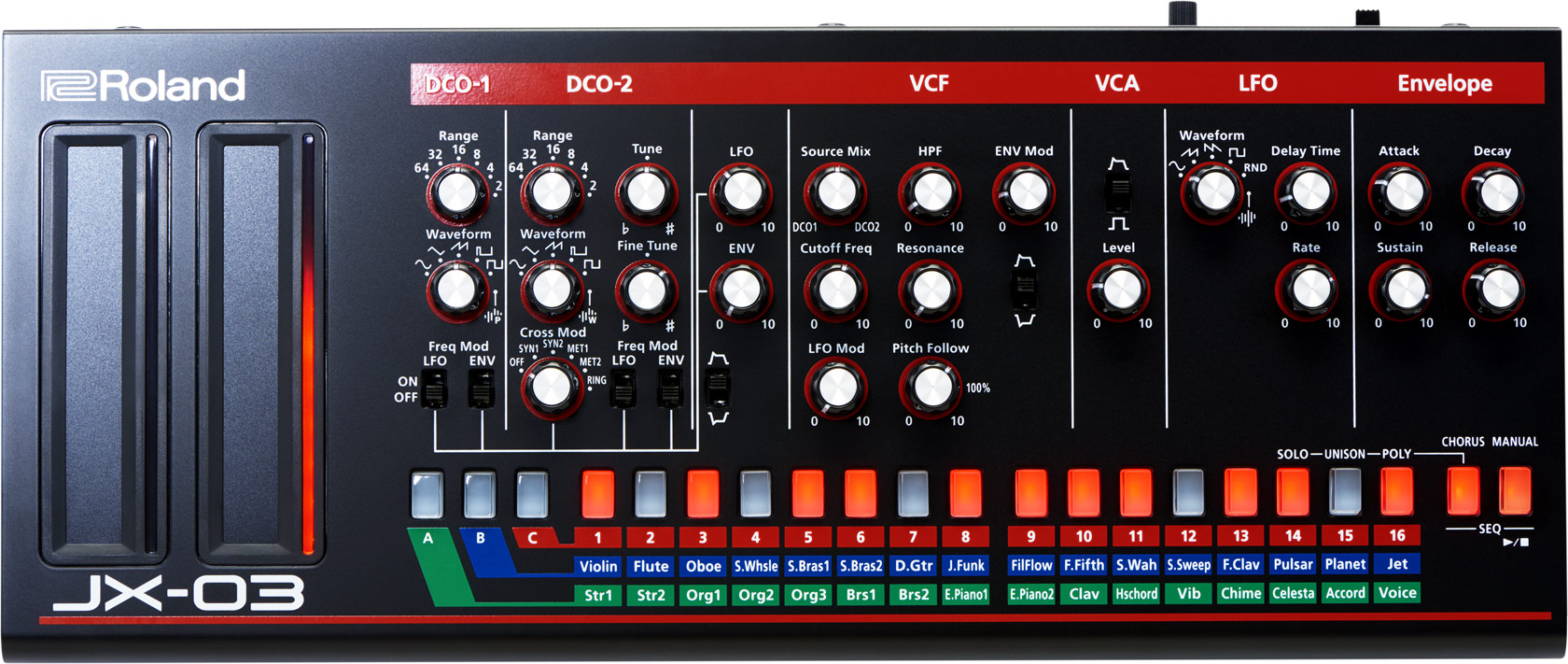

Roland | Boutique JX-03
The Roland Boutique JX-03 module continues the legacy of the JX-3P synth. The original model was launched when button-driven interfaces were popular, so it was designed to give immediate access to preset sounds. It was actually highly programmable though, especially when used with the optional PG-200 controller that added 24 rotary knobs for instant sonic sculpting.
Develop Your Ideas with a 16-Step Sequencer
It is possible to play 2 sounds simultaneously on the JX-03. (Dual function).
The CC # 80 activates the dual mode for values greater than 63.
Once the layer is selected with CC # 81 it is possible to choose which patch to use and to edit it with the JX-03 panel.
|LFO||1 Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle|
|Engine Detailed||2 OSC, Sine, Triangle, Saw up, Square, Pulse, noise.|
|Filter (VCF)||1 High Pass, Low Pass, Resonance|
|Sequencer||16 step, 16 patterns|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
