Roland | Boutique JU-06

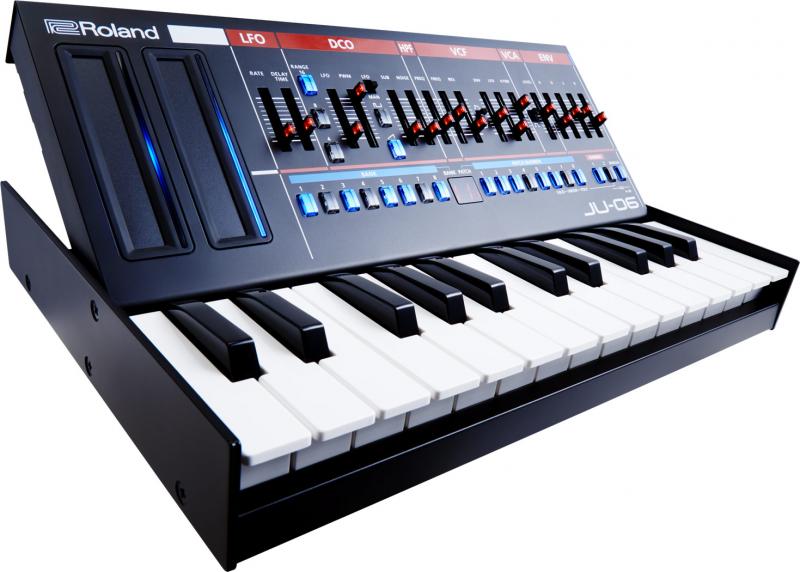

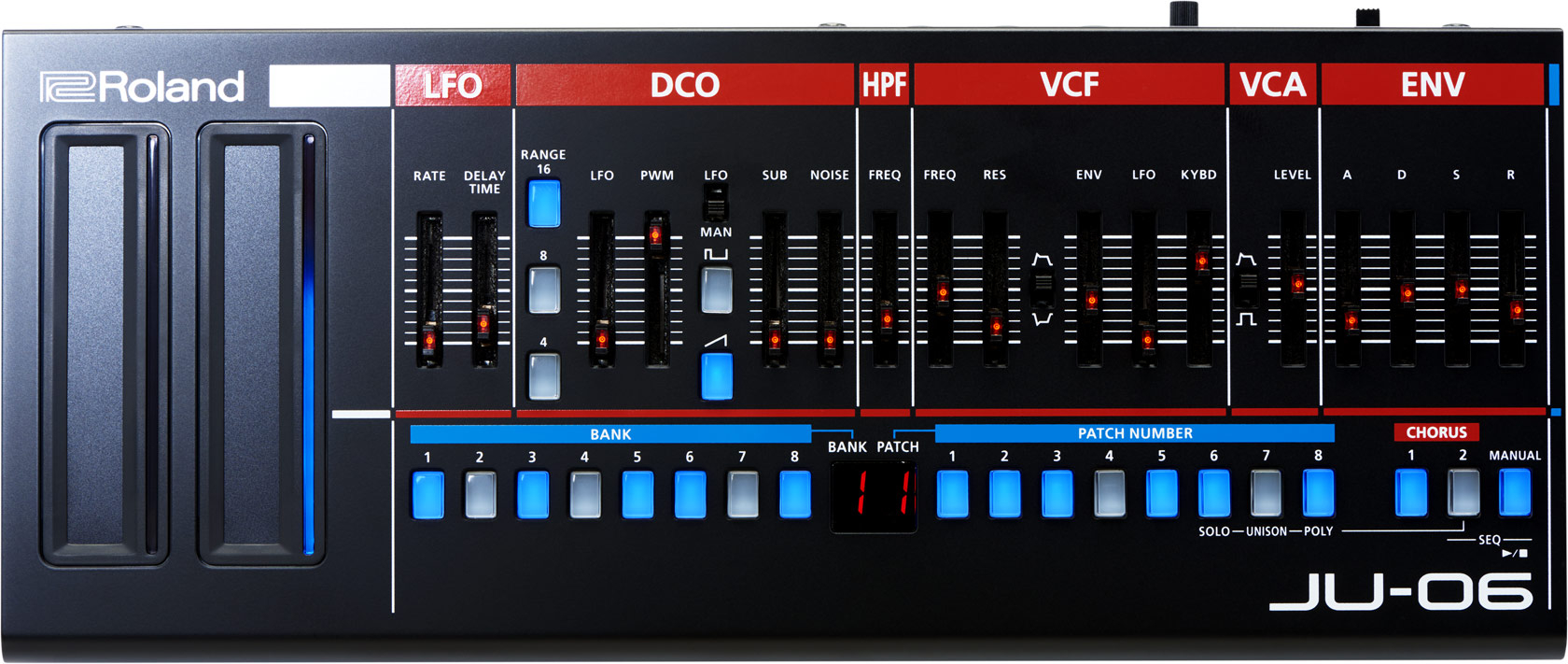

The new 4-voice JU-06 module continues this approach, with 23 parameters controllable via the front panel and that classic JUNO sound – complete with the much-loved JUNO chorus effect. There are some new additions too, including a faster LFO and continuously variable hi-pass filter (HPF). You can even slide the JU-06 into the optional K-25m keyboard unit for a self-contained, go-anywhere synth experience.
It is possible to play 2 sounds simultaneously on the JU-06. (Dual function).
The CC # 80 activates the dual mode for values greater than 63.
Once the layer is selected with CC # 81 it is possible to choose which patch to use and to edit it with the JU-06 panel.
|LFO||1 Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle|
|Engine Detailed||1 OSC, Saw Down, Saw Up, Square, Sub Oscillator, White Noise|
|Filter (VCF)||1 High Pass, Resonance|
|Envelope (VCA)||1 ADSR|
|Sequencer||16 step, 16 patterns|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
