RSF | Modular Model 11 |
|

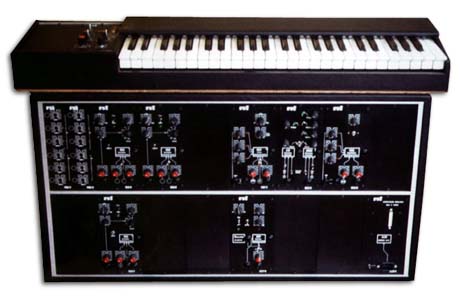

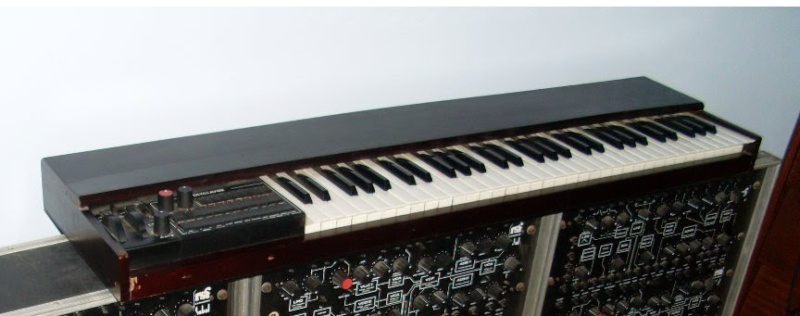

Description | This is quite a rare analog modular synth and as a result, little is known about this classic analog. RSF is a French synthesizer company named after Ruben & Serge Fernandez. The Modular Model 11 is a towering modular system very similar to the common ARP 2600. Its basic specs are 3 oscillators in an analog monophonic synth which makes for some great bass, growls and blippy sounds. There's at least 1 LFO, VCF and VCA section with the classic sets of features for editing. A remote 61 note keyboard controls the Modular 11 via CV/Gate--no Midi here. There is a cool phaser effect for thickening your sounds for nice lead synths or wobbly sounds. It also has generous overdriven sounds and punchy ADSR and filter sections. It has 3 audio inputs which can be used to run external sounds through its filters and other modules. Pretty cool, but too rare to ever find. |
| Brand | RSF |
| Model | Modular Model 11 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 3 |
| LFO | 1 |
| Engine Detailed | 3 VCO's |
| Filter (VCF) | 1 |
| Envelope (VCA) | 1 |
| Keys | 61 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| CV-gate | CV/Gate |
| Produced: | 1976 - 1976 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
