RSF | Kobol Expander


The rack version came in four different components.

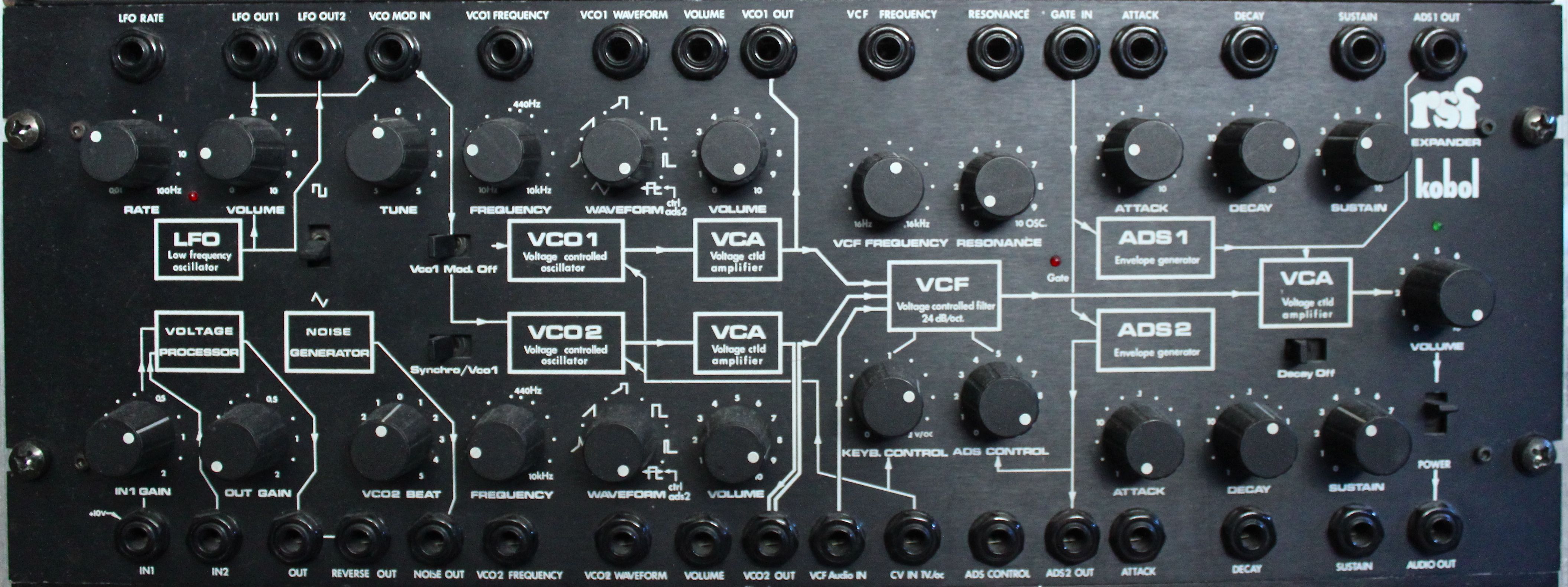

The Kobol Rack (Expander I) was essentially only the VCO/VCF/VCA/LFO sections of the Kobol in a rack module.  It features 2 VCOs with sweepable, waveforms, 2 ADS envelopes, an LFO, a VCF,Noise Generator, reversible voltage processoer, decay on/off, a self-oscillating 24db low pass filter, and 1 volt Ocatve CV/Gate inputs.

The Expander 2 was an add-on to the Kobol that added some new processing modules. The 19" 3 U space unit features a Ring Modulator, Envelope, a VCA, an LFO, Mixer with 3 inputs and 1 output. Additionally it has a Sample & Hold module with internal or external clock, a Noise Generator, Voltage processor that is delectable Linear or Logarithmic, Voltage Inverter, Gate Delay, an Envelope Follower, Lag Generator, and finally 2 multiples.

The Programmer rack module contained the memory circuits for storing patches and sequencing.

And the KM8 was an 8-channel rack-mount mixer.

The connections between modules were normalized but could be bypassed by external patches, similar to other semi-modulars like the ARP 2600 and Korg MS-20.

ModelKobol Expander
Engine TypeAnalog
Voices (max)1
LFO1 LFO, triangle, square waveforms, rate knob
Engine Detailed2 VCO's; triangle, square, saw, pulse; variable sweep
Filter (VCF)1VCF 24db low pass
Envelope (VCA)2 ADS envelopes
Key typeN/A
CV-gateCV/Gate 1 volt / octave
Produced:1979 - 1979
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
