Quasimidi | Raven

Description

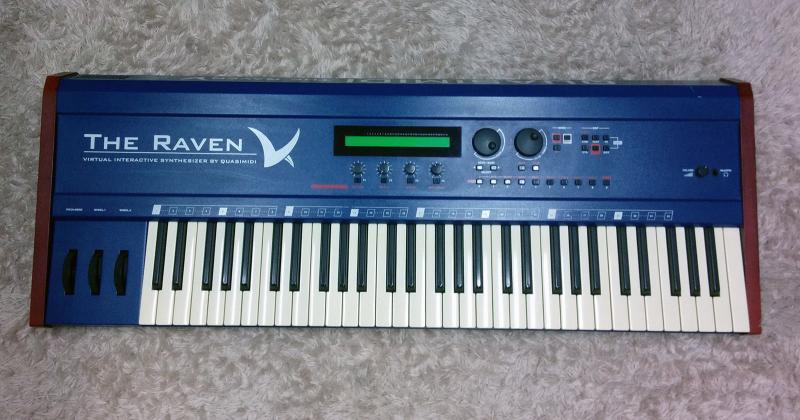

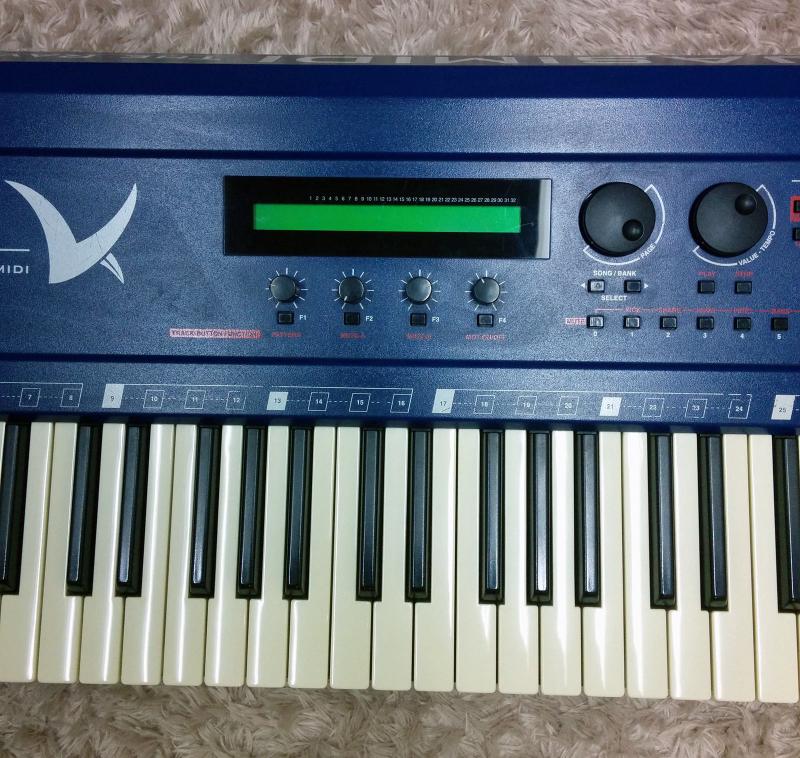

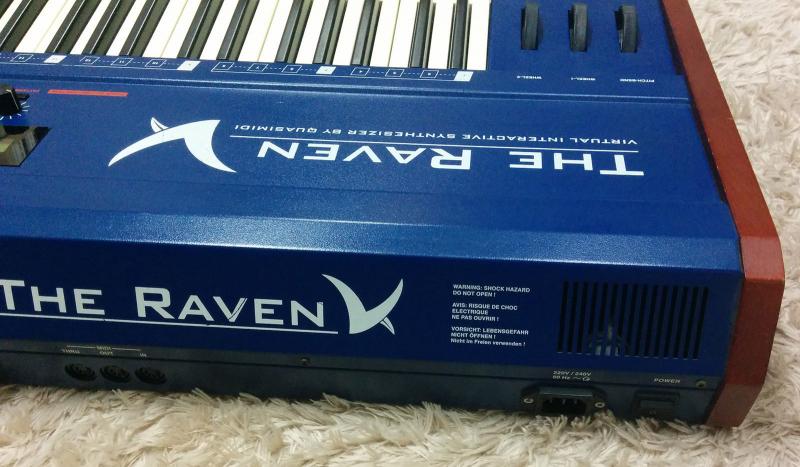

The Raven is a great quality German made performance synthesizer for creating pumpin' dance tracks - live or in the studio (or at home)! In essence the Raven is like having a Rave-O-Lution 309inside a professional keyboard with a sleek look and interface. Strongly aimed at the dance music genre, the Raven offers up great sounds including: Basses, LeadSynths, SynthPads, Natural Sounds, Organs, FM-Percussion, Effects, Drumsets, Tuned Drums and multitimbral Performance patches. An on-board interactive 8-track sequencer, arpeggiators, real-time control knobs and effects equip this nice synthesizer for any electronic musical venture.

The Raven can be upgraded with the RavenMAX card. This increases the sample wave memory from 6 to 14 MB. There are tons of new sounds emphasizing drums, percussion, synths and effect sounds. "Motivator" real-time tweaks can be recorded into the on-board sequencer and there are about 100 "motifs" from other artists and users for instant groove patterns! Note however that the Raven has only 24 voices of polyphony which usually means your songs may be sparse in their arrangement. But creative planning and tricks can still get you by the Raven's limited polyphony, live and in the studio. If you're planning to shake some dance floors, the Raven makes a great all-in-one dance studio, and it looks really cool too!

BrandQuasimidi
ModelRaven
DeviceSynth
TypeKeys
Engine TypeDigital
EnginePCM
Voices (max)24
Multitimbral16
Oscillators3
LFOY
Engine Detailed3 osc: M.A.S.S. (6 MB Samples-In-Memory or 14 MB with RavenMAX expansion card)
Filter (VCF)1
Envelope (VCA)ADSR
FX2 effects units including reverb
Memory2 effects units including reverb
Sequencer8 track pattern sequencer with unique features
Arpeggiatorfull arpeggiator
Keys61
Key typeKeys
VelocityY
AftertouchChannel
MidiI-O-T
Produced:1996 - 1996
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
