Pin Electronics | The Hornet |
|

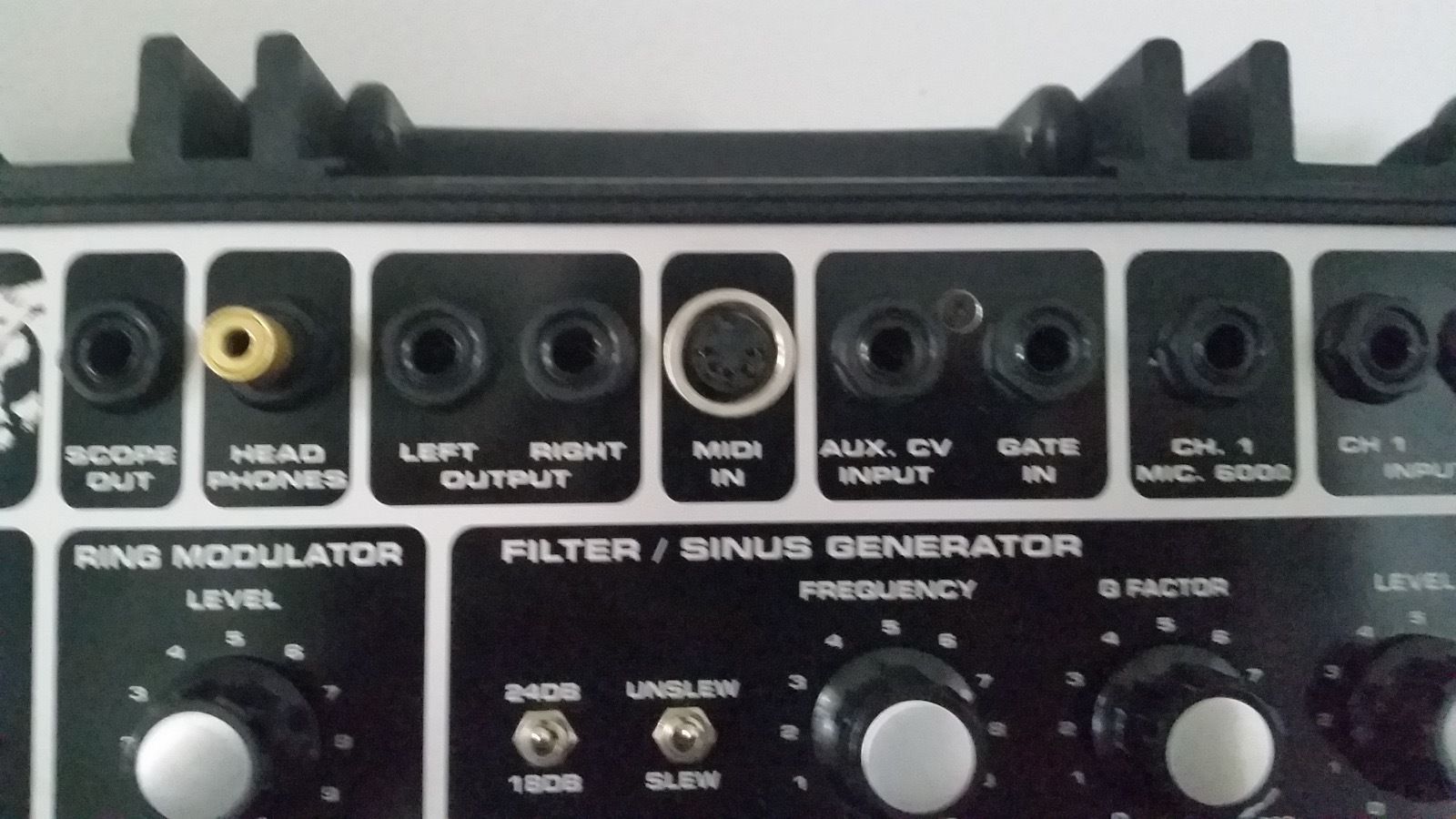

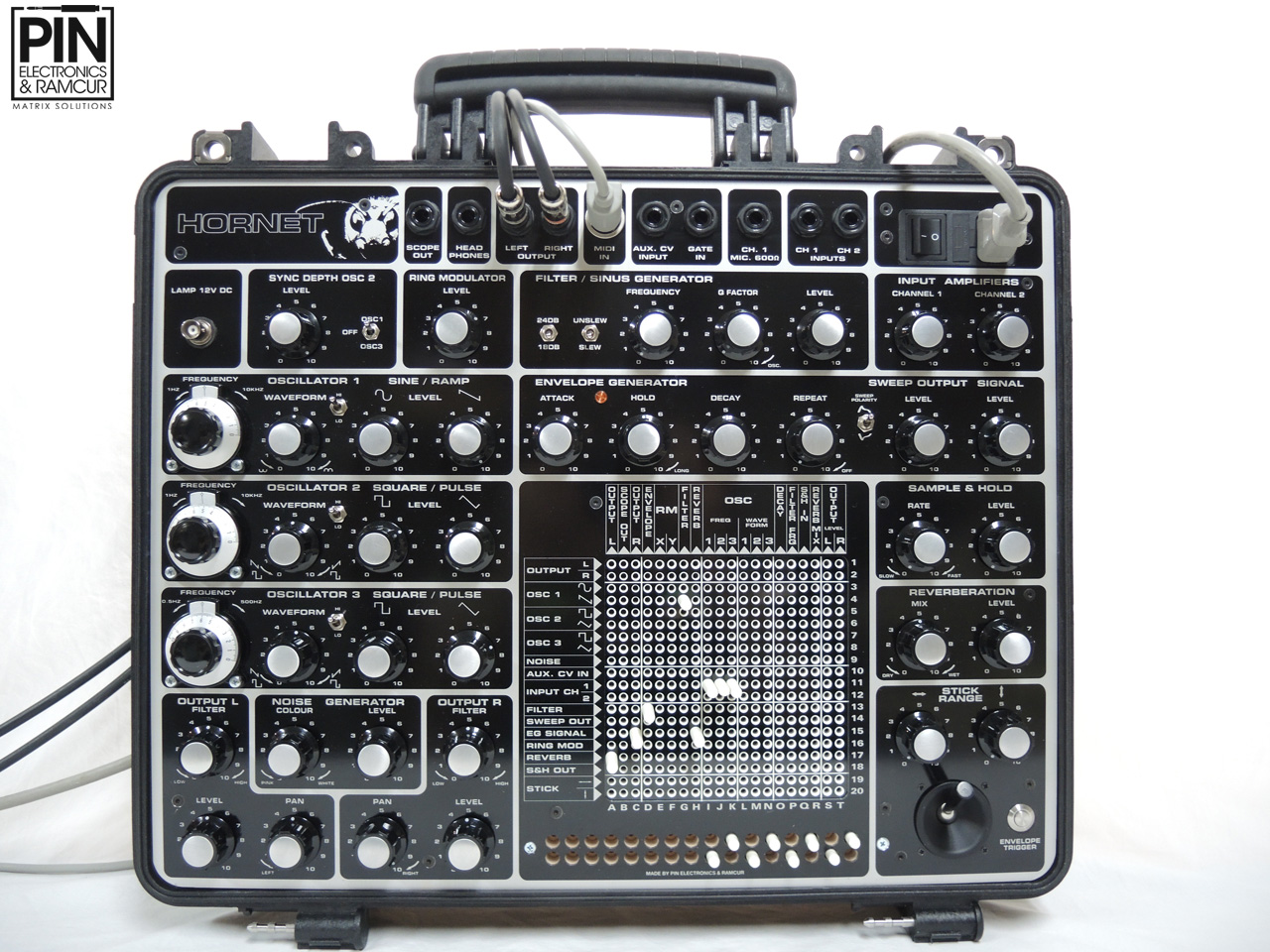

Description | Hornet modular synthesizer, handmade classical portable modular synthesizer with subtractive / FM analogue synthesis. Based on Derek RevelI's putney PCB boards FEATURES OSCILLATOR 1 Switchable Range: 0.025Hz – 500Hz or 1Hz – 10KHz Outputs: sine/ramp, shape control via matrix (sine only) OSCILLATOR 2 Switchable Range: 0.025Hz – 500Hz or 1Hz – 10KHz Outputs: square/pulse, shape control via matrix Mod. OSC Sync to OSC 1 & OSC 3, variable sync depth OSCILLATOR 3 Switchable Range: 0.025Hz – 500Hz or 1Hz – 10KHz Outputs: square/pulse, shape control via matrix NOISE GENERATOR White and Coloured SAMPLE & HOLD MODULE Source input via matrix DUAL CV MIDI INTERFACE by midimplant.com FILTER/OSCILLATOR A multi-purpose filter and sine oscillator Range: 5 Hz – 10KHz Cut off: switchable 18/24 dB/oct. Slew/Unslew switch. RING MODULATOR Transformerless integrated circuit (TAB101) SPRING REVERB Decay: 2.75 – 4.0 sec. Springs: 3 Voltage control of mix “wet/dry” via matrix. ENVELOPE GENERATOR Attack: 2ms – 1 sec Hold: 0 – 2.5 sec Decay: 3ms – 15 sec Repeat/Off: 10ms – 5sec. (w/ recycle function) Gate/Trigger input: +4V Inverter switch. INPUTS 2 x 2.5 VDC (max) into 50Kohm) 1 x 5 mVAC into 600 ohms (Mic. Input) OUTPUTS 2 x Mono sockets 1 x Headphones 1 x Scope out INPUT CONTROLS 1 x Dual CV Ch. Midi Interface 1 x CV/Gate Interface with AUX CV (uncalibrated) 12V DC BNC lamp connector (lamp optional) The 20×20 621 Ghielmetti matrix comes with 16 pins (available in different colors and values) and vintage Sealectro look black w/white lines. We are using Explorer hard cases from the leader in technical case manufacturing. All Hornet modular synthesisers & modules are available directly from Pin Electronics / Germany. |
| Brand | Pin Electronics |
| Model | The Hornet |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | Modular |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 3 |
| LFO | 1 Sample & Hold |
| Noise | Y |
| Engine Detailed | 3 OSC, Pink Noise, Saw Down, Saw Up, Sine, Square, White Noise |
| Filter (VCF) | 1 18dB Slope, 24dB Slope (4-pole), Low Pass, Resonance |
| Envelope (VCA) | 1 ADS |
| FX | Spring reverb |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I |
| CV-gate | CV/GATE in |
| Produced: | 2016 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
