PPG | System 300

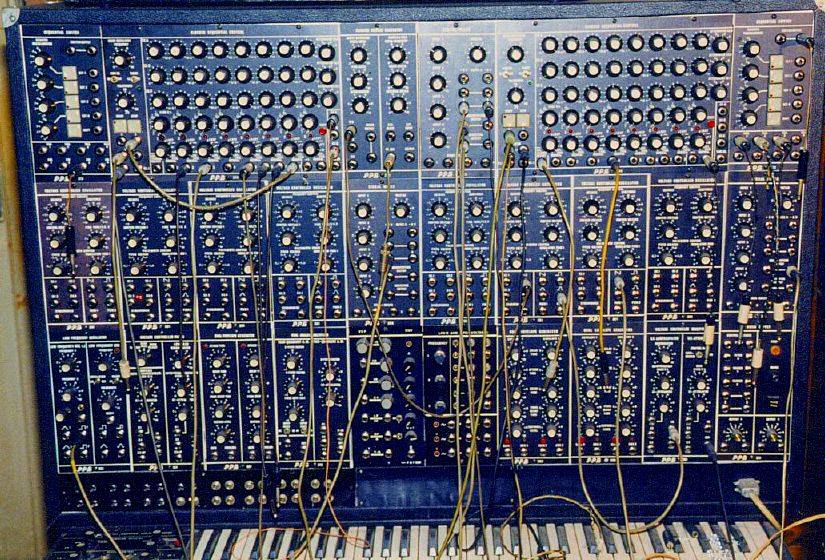

Very little is known about these systems. It would seem that Palm was aiming to compete with the Moog Modular system, offering a similar range of modules. Though it was designed to compete with the moog system, it had its own unique sound. Description First Row: 313 Sequential Switch, 314 Clocked Sequential Control, 310 Random Voltage Generator, 309 Signal Mixer, 314 Clocked Sequential Control, 313 Sequential Switch Second Row: 301 Voltage Controlled Oscillator (4 times), 309 Signal Mixer, 301 Voltage Controlled Oscillator (4 times), 309 Signal Mixer Third Row: 305 Low Frequency Oscillator, 317 Voltage Controlled Filter, 307 Dual Envelope Generator, 315 Dual Analog Multiplier, (VCF-ENV/FBY02) not PPG, (LFO'S AND PITCH VOLTAGES) not PPG, 308 Dual Envelope Generator (2 times), 303 Voltage Controlled Modifier, 311 Power Supply 322 Duophonic Digital Keyboard
ModelSystem 300
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
