PAiA | Proteus I

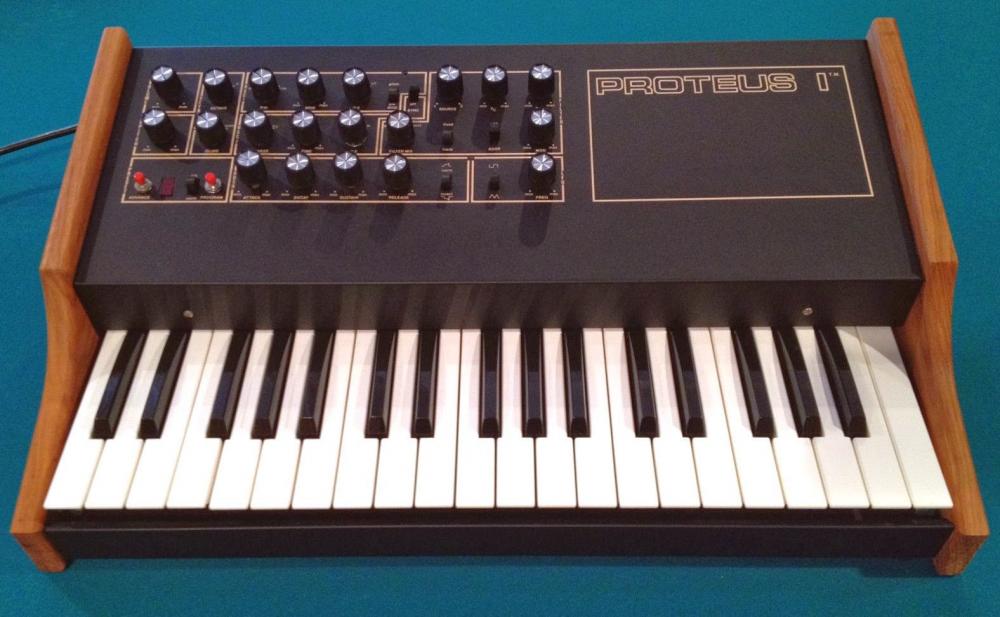

This ultra-rare analog monosynth is called the Proteus 1, but should not be confused with E-mu's Proteus/1. This is a monophonic analog synth with 16 memory locations! It's based on CEM chips (as used in the Sequential Circuits Pro-One and many other classic vintage synths). Its got two oscillators with oscillator sync, an envelope generator, LFO, lowpass resonant filter, glide and noise-gen. This synth is unique for a vintage monosynth in that it has patch memory which can be programmed by the user and also has a series of lights to show when knob settings match internal patch settings.

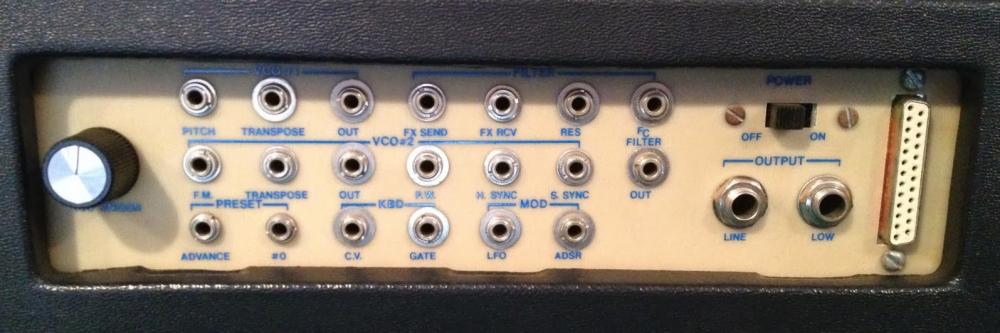

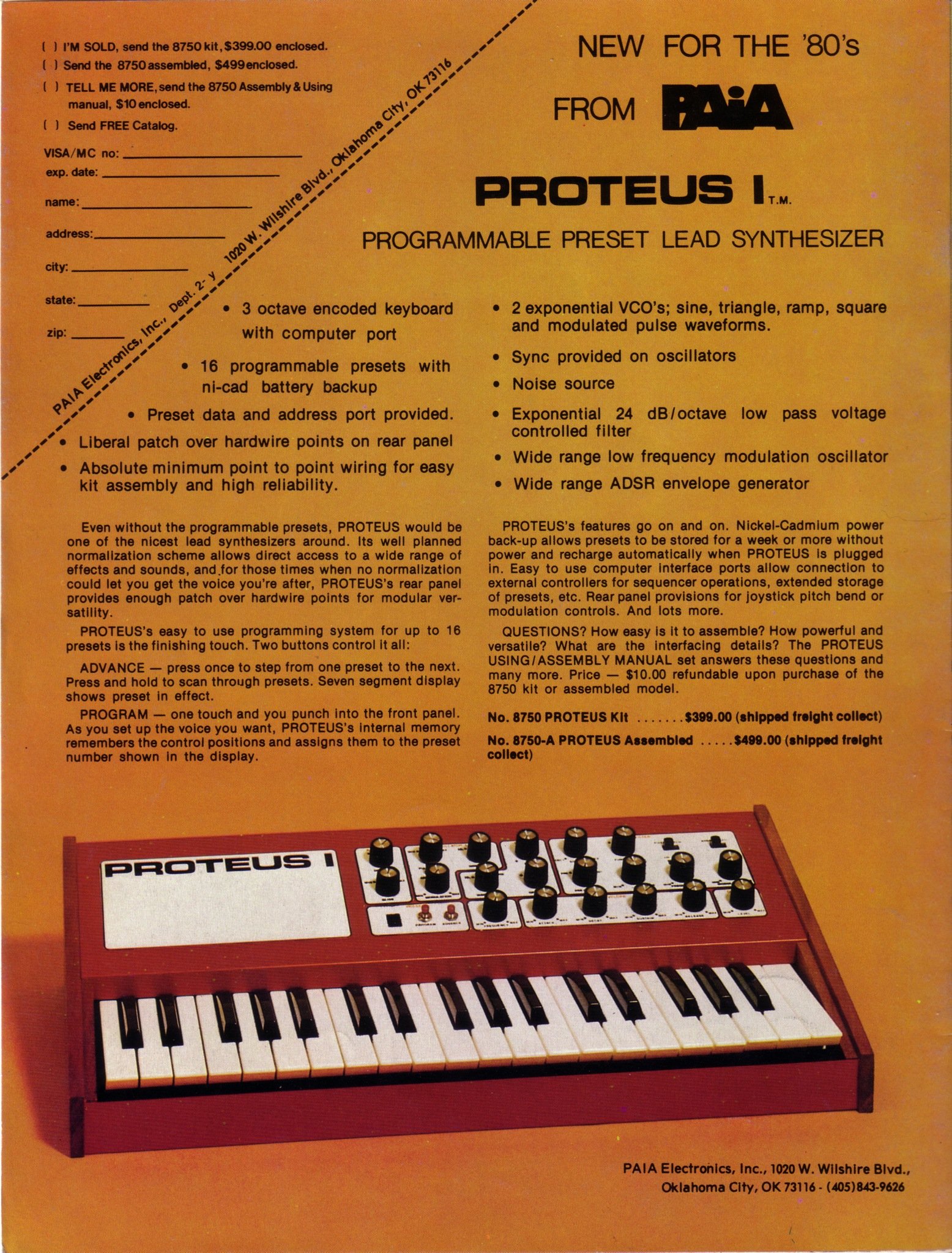

There's also a patchbay on the back of the synth with control voltage inputs for MANY of the synth's parameters using external voltages, just like you can do on modular synths like the ARP 2600. This really increases your options. There are jacks for: VCO1 pitch, transpose, out. VCO 2: FM, transp, out, pulse width control, hard sync and soft sync ins. VCF: cutoff freq, resonance, out, fx send and receive. Preset: advance. Keyboard CV and gate. MOD: LFO and ADSR. Hi and low outs. You can use another modular synth, CV / analog sequencer or a MIDI to CV convertor to control any of the CV inputs. Ultra rare! Only 70-80 of these synths were produced. Like most PAiA gear, it was a D.I.Y kit that originally retailed between $400 to $500 in the late seventies.

ModelProteus I
Engine TypeAnalog
Voices (max)1
Engine Detailed2 VCOs + Noise-Gen.
Filter (VCF)1 Lowpass, resonant filter
Envelope (VCA)1 Envelope
Memory16 patches
Key typeKeys
Extra infoDIY kit
Produced:1978 - 1982
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
