PAiA | OZ |

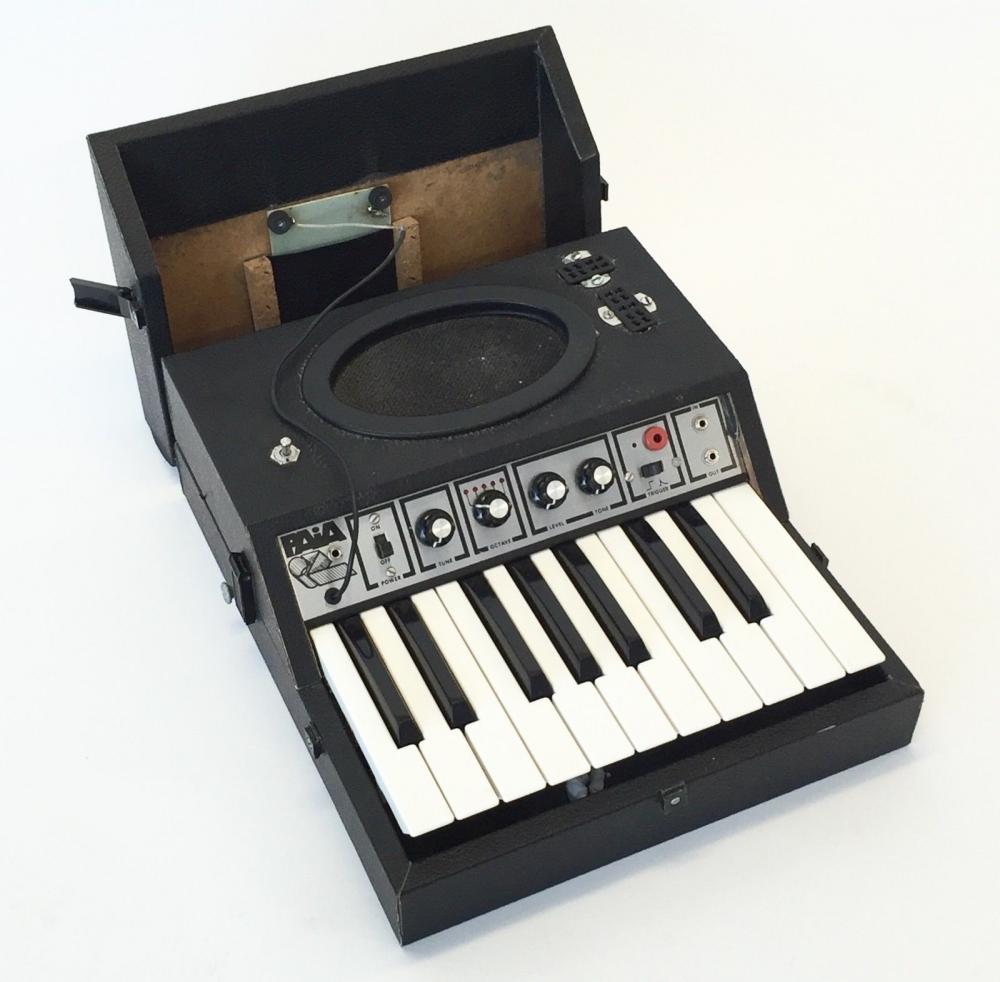

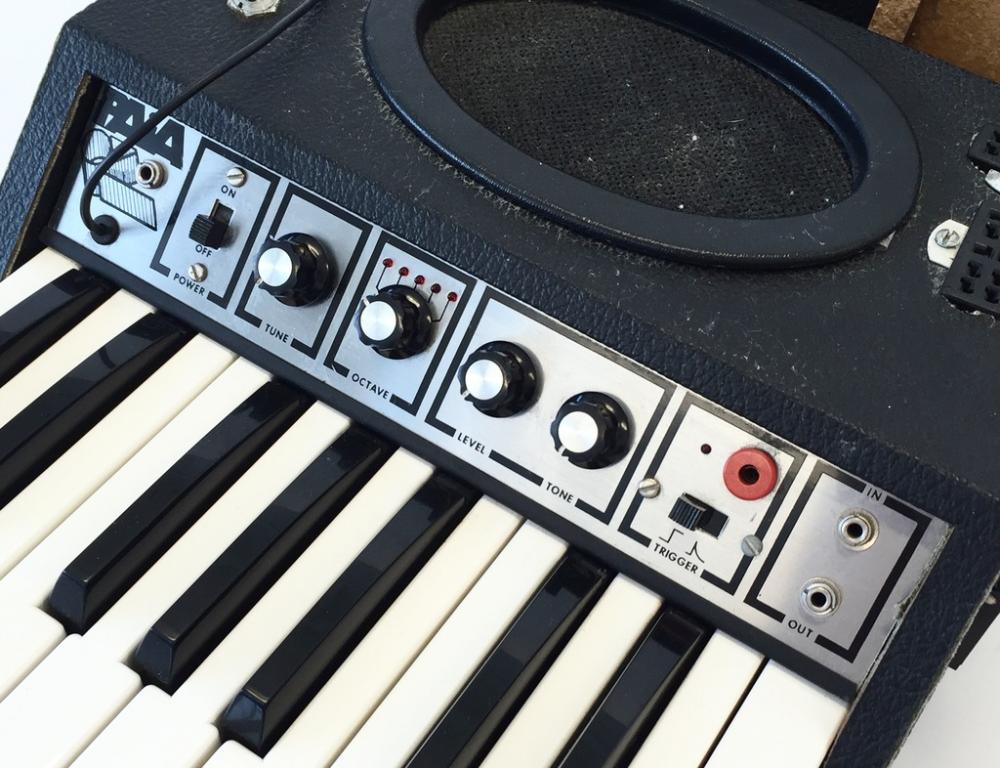

Description | OZ is polyphonic with over 6.5 octaves total range from it specially manufactured 1.5 octave keyboard. A built in speaker and amplifier make OZ a truly self-contained instrument. Large Scale Integration and CMOS technology allow batter operated portability. OZ has a single tuning knob (no internal adjustments) and a mixing input that allows other instruments to play through the amplifier. Output jack and switch selective step or multi pulse trigger provides simple synthesizer interface, LEDs indicate: power on, octave setting and trigger status. A unique pressure sensitive pitch bender chromatically transposes single notes or whole chords up to a full ocative. The entire package closes into an extremely portable, rugged vinyl covered wood case. |
Brand | PAiA |
Model | OZ |
Device | Synth |
Type | Keys |
Engine Type | Analog |
Engine | VCO |
Voices (max) | 18 |
Oscillators | 1 |
Engine Detailed | 1 VCO, Square, Divide Down |
Keys | 18 |
Key type | Keys |
Velocity | N |
Aftertouch | N |
Extra info | DIY kit |
Produced: | 1977 - 1983 |
Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
