Oberheim | OB-Xa |
|

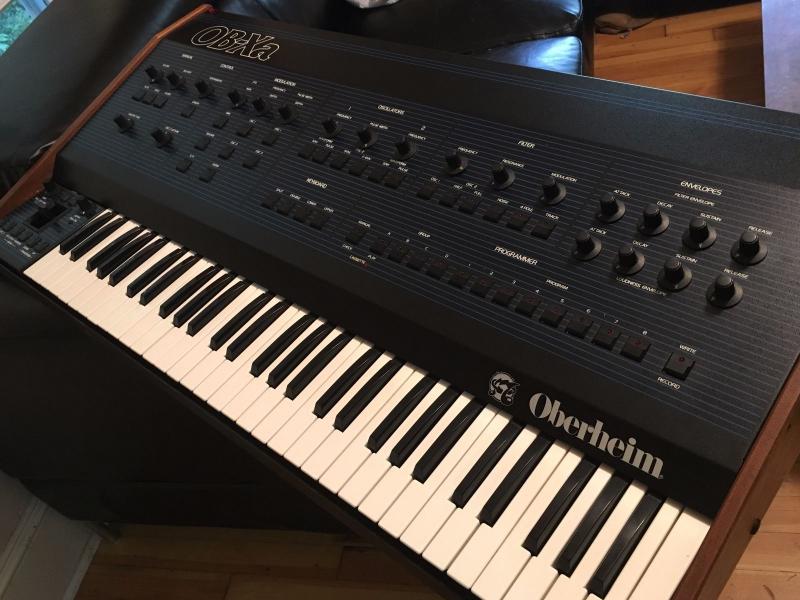

Description | The OB-Xa is a massive analog synthesizer with a very familiar and classic Oberheim sound. Its sound, size and power are very similar to the Prophet 5 from Sequential. However this one has up to 8 voices which can be split, layered and stored! The OB-Xa was available in four, six or eight voice polyphonic models. They all featured patch memories, also in varying degrees. A minimum of 32 patches were available on early models (4 banks of 8). The maximum amount of patch memory storage found on many OB-Xa's is 120 patch memories. All models of OB-Xa, however, featured the new Curtis chips which offered great stability for an analog synth and they are attributed to its great filters and sounds. The OB-X was very similar to the OB-Xa except that its voices could not be split or layered and, more significantly, the OB-X had a lowpass-only discrete SEM 12dB/oct state variable filter, which had a great and classic Oberheim sound. The OB-Xa changed that in an attempt to economize manufacturing and increase stability by switching to CEM3320 Curtis chips for its filters. The Xa offered two switchable filter modes: 12 dB/oct (2-pole) or 24 dB/oct (4-pole). This hardware change resulted in a more agressive sound, not quite as creamy as the OBX original, but what still became a "bread and butter" sound of the Oberheim line. Splitting the keyboard mode separates the OB-Xa into two 4-voice synths with two available patches. The Layer mode plays the two patches simultaneously. There are also some added effect sources, perfect for any analog polysynth, including portamento, unison, sample & hold, chord memory and three LFO's! However none of the original OB-Xa's have MIDI, unless otherwise having been modified. The OB-Xa is a classic and fat analog machine. It will give you thick analog pads and drones, punchy bass and cyclic analog effects. |
| Brand | Oberheim |
| Model | OB-Xa |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 8 |
| Oscillators | 2 |
| LFO | 1 |
| Engine Detailed | 2 VCO's per voice (sawtooth or pulse) |
| Filter (VCF) | 4-pole filter with ADSR envelope and switchable 12dB/oct or 24dB/oct slope |
| Envelope (VCA) | 1 ADSR VCA envelope |
| FX | Portamento, sample & hold, chord memory |
| Memory | 32 patches to 120 with voice cards expanded |
| Keys | 61 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |

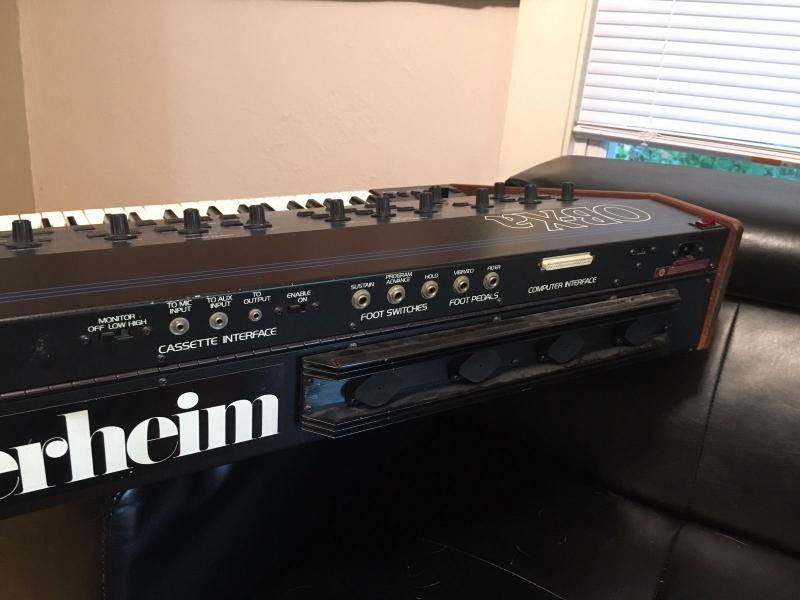

| CV-gate | "Oberheim System" digital interface |
| Extra info | Standard 4 voices, expandable to 6 or 8 voices |
| Produced: | 1981 - 1981 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
