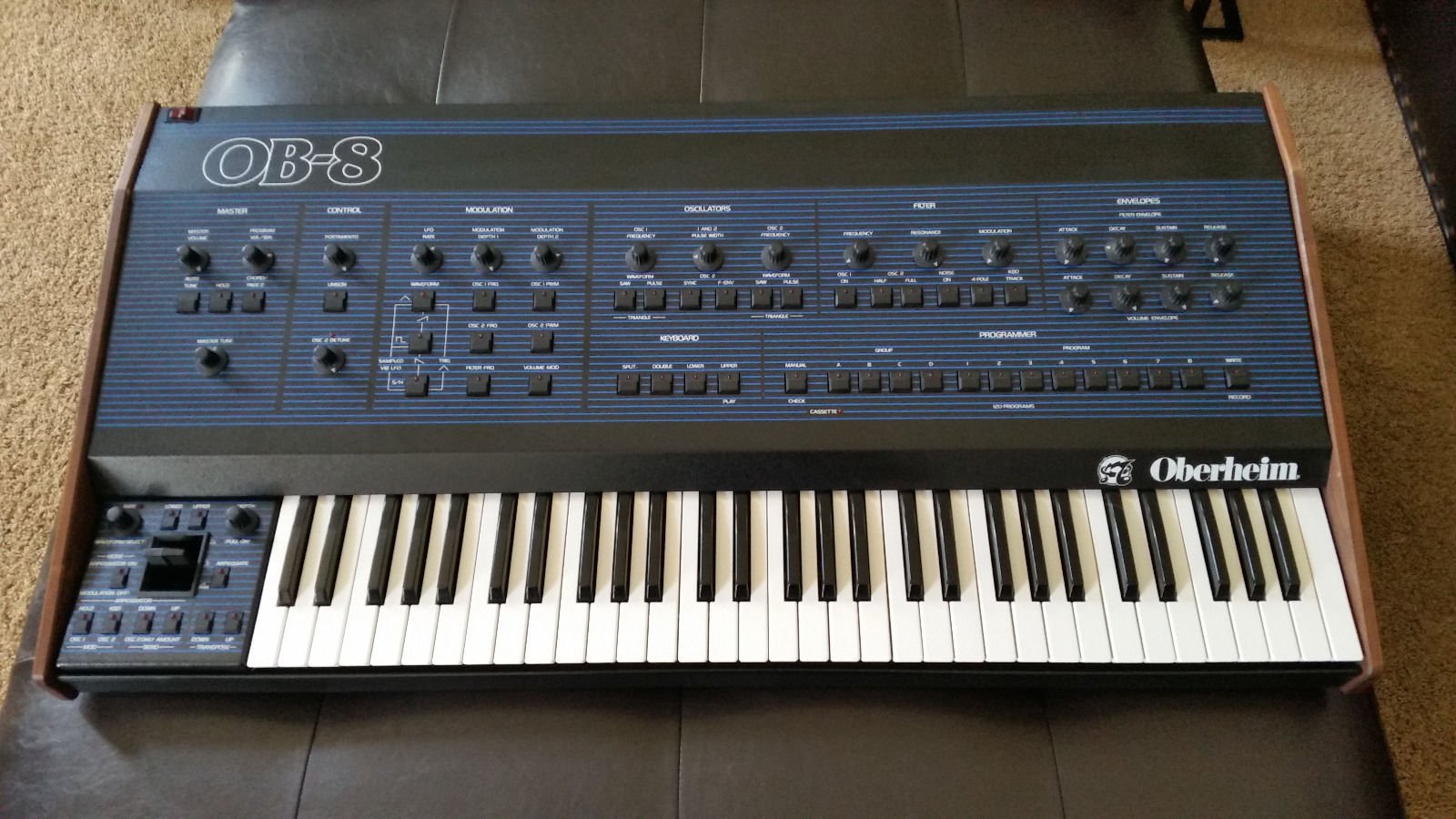

Oberheim | OB-8
The OB-8 was the last of the classic OB series that included the OB-1, OB-Xa and OB-X. The OB-8 is a very warm and rich sounding eight voice polyphonic synthesizer with that classic Oberheim sound. Because it was released just before MIDI debuted, the OB-8 had no MIDI implementation originally, but some models were retrofitted with 9-channel MIDI implementation. The OB-8 did use Oberheim's very own digital buss system making the OB-8 the center-piece of your OB-studio, allowing it to connect to the DSX polyphonic sequencer, DMX drum machine and other OB-synths. In a time before MIDI, this type of instrument connectivity was truly awesome!
The OB-8 is totally programmable and loaded with powerful analog sounds and style. Dedicated knobs, sliders and a traditional layout make programming a snap and very hands-on. Each individual voice can be de-tuned for a very thick (or weird) sound. Syncable VCOs and a nice 8-note arpeggiator are also on-board on this cool analog synth. It has the OB-Xa's switchable 2 or 4-pole VCF (filter) with ADSR. Tons of LFO modulation controls and effects are possible. The OB-8 also introduced a second layer of programming functions - hit the "Page 2" button and all front panel controls were assigned to an entire second set of parameters! The earliest models did not label these hidden "Page 2" functions on the front panel, but that was rectified on later models.
Up to 120 patches of memory storage were also available to keep your amazing sounds around. And 24 additional patches are available for doubled/layer presets. A full 61-note keyboard with Oberheim's unique pitch/modulation benders only sweetens this synth's deal.
|LFO||1 Triangle, Square, Ramp, Samp+Hold|
|Engine Detailed||2 vco's per voice: saw, pulse, triangle|
|Filter (VCF)||Switchable 2-pole or 4-pole VCF w/ ADSR|
|Memory||120 patch programs, 12 split programs, and 12 double programs; external cassette storage;|
|Arpeggiator||8-note arpeggiator with external sync source|
|Produced:||1983 - 1985|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
