Oberheim | Martix 6R


The Matrix 6 was one of the last few synthesizers from Oberheim to come out during the mid-eighties following the classic OB-series. The Matrix 6 utilized high-tech but less expensive digital and midi features and still retained a totally analog sound. It did this by using DCOs (digitally controlled oscillators) to provide stability, programmability and more. All the Matrix synthesizers featured Matrix Modulation which allows for extremely wild virtual patching for almost unlimited range of sounds and modulation capabilities!

The Matrix 6 is a very popular synthesizer today because it offers access to the legendary sounds and power of the Matrix 12, though not as meaty but at a fraction of the cost. The Matrix 6 is also like the Xpander, but with only 6 voices of polyphony and slimmer programming. Each of its 6 voices has a pair of DCOs, a low pass filter, 2 VCA's, 3 envelope generators, 2 LFO's, and 2 ramp gens for a variety of complex analog pads, basses and sounds.

The programmability is vast, but it can be very tedious. As was the growing trend in synthesizers during this time, knobs and sliders were replaced by just a few membrane buttons and a simple data slider. This is accompanied by gobs of programming and patch data written across the face of the unit. Fortunately Midi SysEx is fully supported so you can get patches on-line and transmit them into the Matrix. Access, makers of the Virus, used to make the Matrix Programmer which gives you much more user friendly hands-on controls too. And software editors such as Unisyn make graphic editing possible for much easier programming.

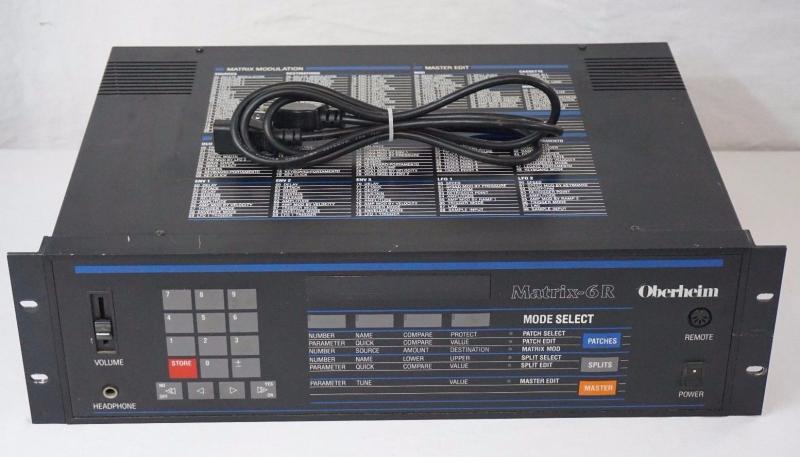

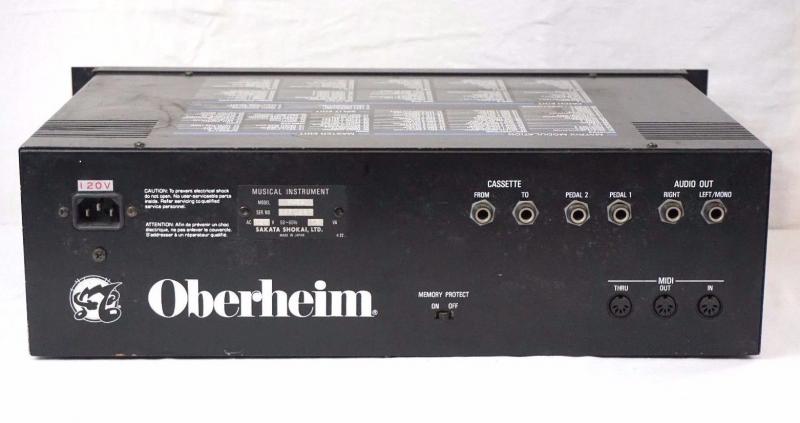

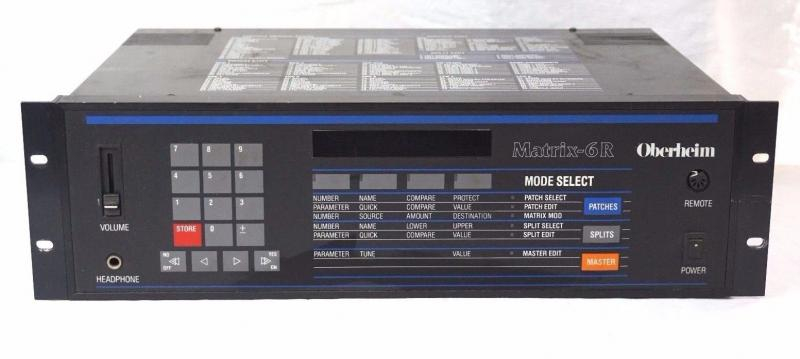

The Matrix 6R is the Matrix 6 without a keyboard, retaining its membrane programming interface. Oberheim later produced the Matrix 1000, which is essentially 1000 patches from the Matrix 6 in a 1-unit rack-module, preset and editable only through SysEx. For professional studio work or live on stage, both the Matrix 6 keyboard and rack-mount are excellent and versatile synths that make a great source of bright and punchy sounds, vintage analog pads, textures and ambient sounds.

ModelMartix 6R
Engine TypeAnalog
Voices (max)6
LFO2 (+1 for vibrato)
Engine Detailed2 DCO's
Filter (VCF)1 lowpass resonant filter
Envelope (VCA)2 VCA + 3 Multimode Envelopes
Memory100 patches, 50 splits
Key typeN/A
Produced:1986 - 1988
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
