Oberheim | 8 Voice

Description

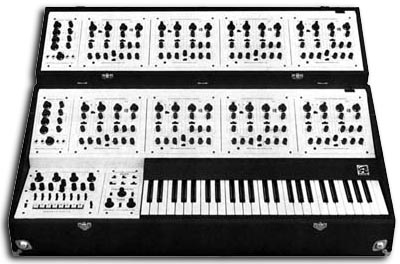

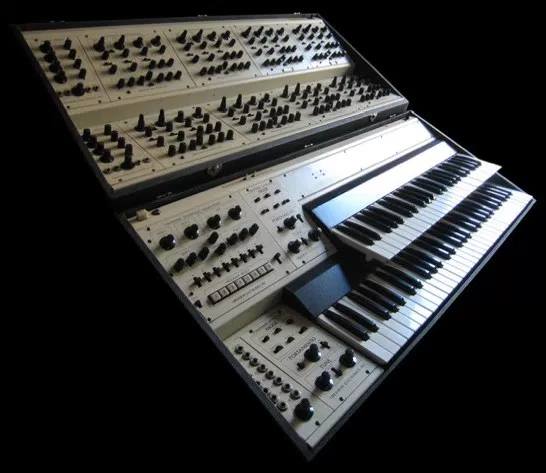

The immensely fat and analog Eight Voice from Oberheim is truly a Vintage Synth. It is essentially eight classic Oberheim SEM modules stacked together alongside the Polyphonic Synthesizer Programmer for memory, a simple analog mixer, and a 49-note keyboard. This gives you an eight voice polyphonic/polytonal synthesizer with 16 VCO's, 8 VCFs, 16 ADR envelope generators and more. In the late '70s a really cool 2-tier keyboard version was released with a larger 61 note keyboard added below the standard 49 note keyboard.

Because the Eight Voice derives its polyphony from having eight mono-synth modules hard-wired together, it has some pros and cons. What is cool is that this was a lot of simultaneous voices for the mid-seventies. And the ability to craft a different sound on each voice led to some diverse and complex sounds. However, it also meant you have to program each voice independently. Fortunately the Polyphonic Synthesizer Programmer stores 16 patches per voice (all of which can be different) so you can save all that hard work spent programming sounds.

The Eight Voice was the pinnacle of Oberheim's first synth system, completely based around the simple little SEM. But a need for truly polyphonic circuit designs would soon lead to Oberheim's legendary OB-series, leaving the SEM based poly-synths behind in the 1970's...

BrandOberheim
Model8 Voice
DeviceSynth
TypeKeys
Engine TypeAnalog
EngineVCO
Voices (max)8
Oscillators8
LFO1 Triangle
Engine Detailed2 VCO's (per voice) with sawtooth or variable-pulse waveforms
Filter (VCF)Low, band, high, notch filter w/ resonance
Envelope (VCA)2 ADR (Attack, Decay and Sustain) Envelope Generators
SequencerMini Sequencer (with 8 steps and 8 voices)
Keys49
Key typeKeys
VelocityN
AftertouchN
CV-gateCV/Gate
Produced:1977 - 1980
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
