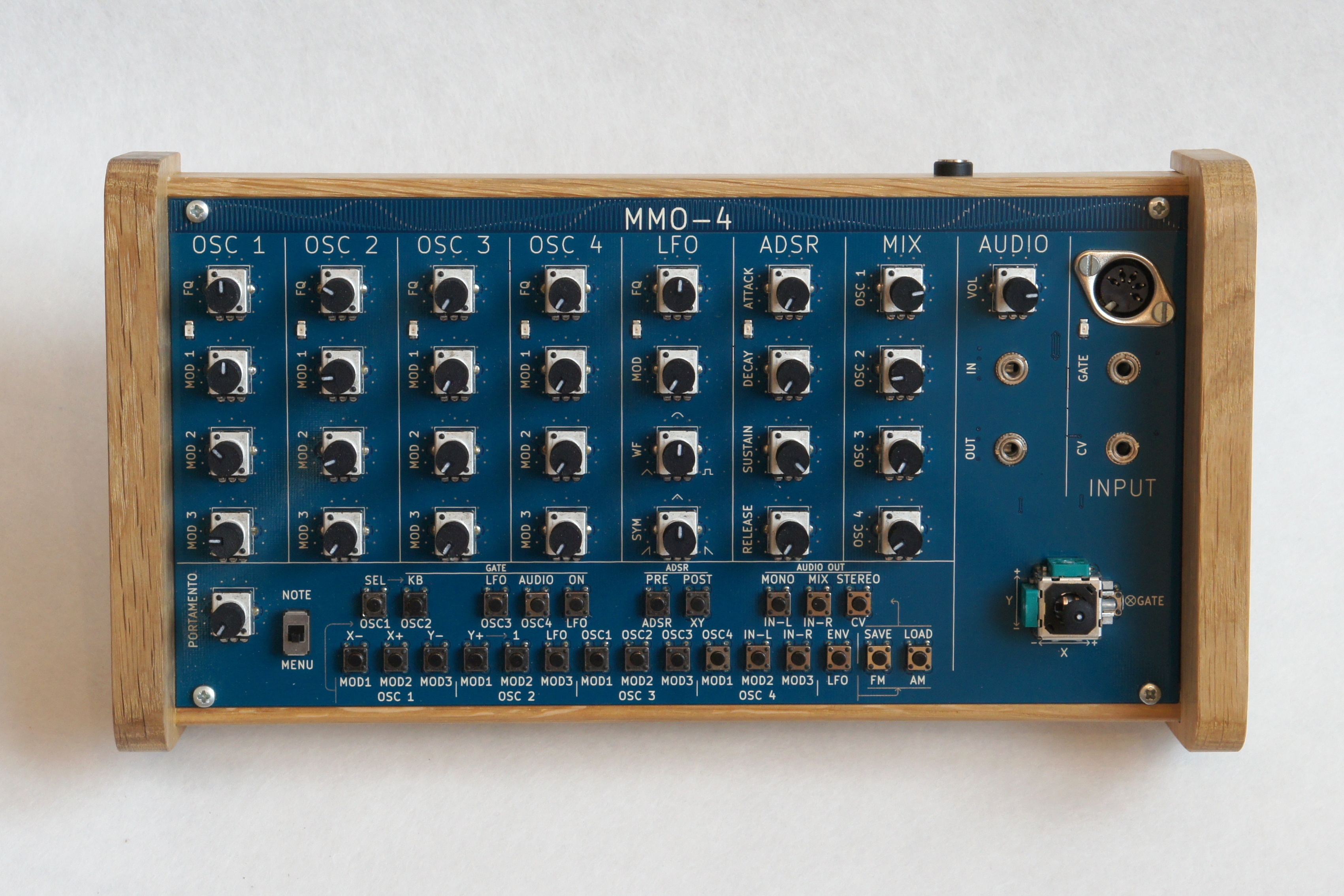

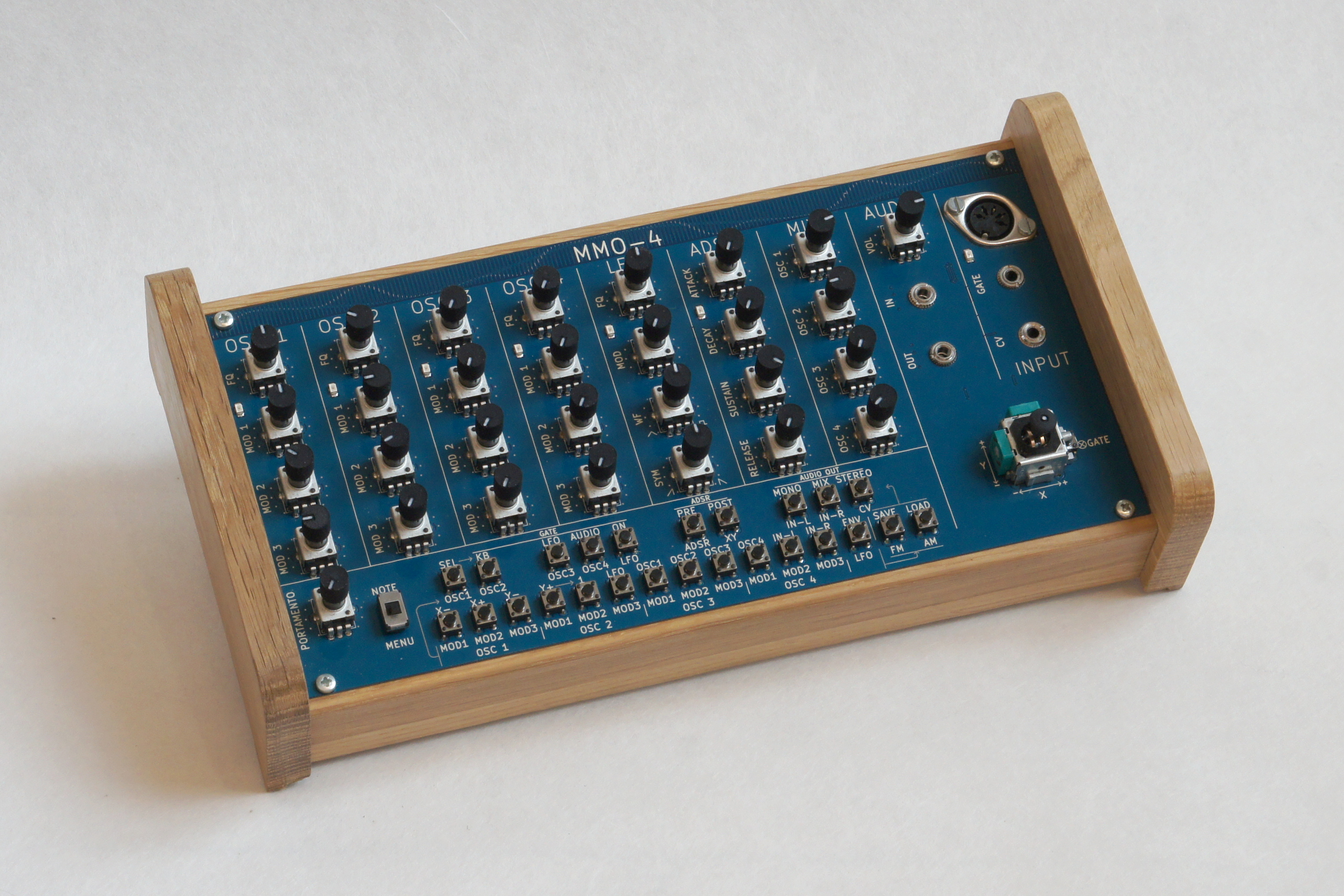

Nozoid | MMO-4
|MMO-4 is a digital, semi-modular, analogue style synthesizer. Built around Frequency Modulation Synthesis (FM), this synthesizer is mostly dedicated to atonal sound generation. From fat drones to percussive noise, MMO-4 offers a rich and complex timbre control. Unlike most FM synthesizers, the MMO-4 is not limited to specific modulation routing. All four oscillators can modulate/be modulated by all other oscillators. Modulation parameters are accessible thanks to 12 knobs for a continuous adjustment of the timbre.
It also offers a custom amplitude modulation technique where each oscillator amplitude can be modulated prior to a wave shaper in order to add harmonics without frequency variation. Also, a joystick allows for easy manipulation of most parameters, for a fast and expressive control of the sound.
What is inside?
30 control knobs
A joystick to control modulation parameters
1 MIX (4 channels)
FM and Wave shaping modulation
1 LFO with configurable waveform and modulation control
A very powerful digital connection matrix
2 octaves keyboard with portamento
1 digital matrix to control oscillator modulations
1 Stereo line IN with envelope follower and gate control
1 Stereo audio OUT
1 MIDI input (note / velocity / pitch wheel / control change)
1 analog CV IN and 1 GATE IN
|2 Saw Up, Saw Down, Sine, Square, Triangle
|4 OSC, Sine for FM
|Y: Yes, N: No, N/A: Not Applicable
|Voltage Controlled Oscillator
|Digital Controlled Oscillator
|Low Frequency Oscillator
|Voltage Controlled Filter
|Voltage Controlled Amplifier
|As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
|Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
