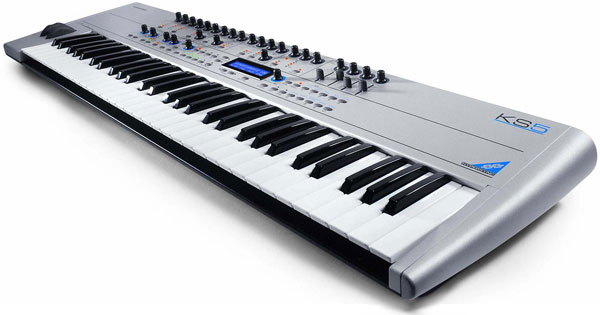

Novation | KS5

Description

Using an enhanced version of the K-Station sound engine, the KS4 (four octave keyboard) and the KS5 (five octaves) offer many additional features and benefits.

The keyboards have aftertouch, are semi-weighted, and each of the 33 knobs and sliders transmit MIDI. There is four part multi-timbral operation with four individual assignable outputs. A big plus is a separate effects section for each part - a unique Novation feature from the Supernova. Also featured are 4 Arpeggiators and 16 note polyphony with a 16 band Vocoder.

The KS-synths have 3 oscillators which provide sawtooth, triangle, sine, pulse width modulation and other waveforms. There's even a simple FM synth engine which can be dialed in for sharpening the sound. Oscillators may be set to Unison or Sync'd operation and a Noise source is also included in the waveform engine. There is a nice low-/band-/high-pass resonant filter with switchable 12 or 24dB/oct slopes and ADSR controls. A second ADSR envelope is available for the amp, as well as two LFOs with sample-and-hold and MIDI sync.

On-board effects include reverb and delay/chorus/flanger. Their send levels can be controlled by the Mod wheel which is a nice effect. A 12-band vocoder is also on-board for processing external mono sounds such as drum loops or vocals. Pads sound great when vocoded with external sounds. External sounds can also be used as an oscillator, run through the filters, envelopes, etc. with much better results than were possible on the original Bass Stations.

The K-Station was a great little keyboard, and the newer KS4 and KS5 offer a much more professional package to stage and studio musicians!

BrandNovation
ModelKS5
DeviceSynth
TypeKeys
Engine TypeDigital
EngineVA
Voices (max)16
Multitimbral4
Oscillators3
LFO2 LFOs: sine, triangle, saw, square, sample-and-hold, panning, with speed and delay parameters. Cyclic or 1-shot.
NoiseY
Engine Detailed3 osc with Square / Saw / Variable Pulse / Tri / Sine / Double Saw / Double Tri / Double Sine waveforms. Osc 1-2 sync, FM, Ring Mod, Noise and external audio in (mono).
Filter (VCF)low/high/band, 12/24 dB switchable
Envelope (VCA)ADSR envelope generators
FX6 simultaneous FX per program: Reverb, Distortion plus tempo-locked Chorus, Phaser, Delay, Panner & Enveloped Filter with EQ, 12-band Vocoder
Memory200 preset programs, 50 preset performances, 100 drum sounds; 200 user programs, 100 user drum programs, 50 user performances.
Arpeggiator4 independent in multi mode; up, down, random, chord modes; 32 preset patterns; range and latch mode saved per program.
Keys61
Key typeKeys
VelocityY
AftertouchChannel
MidiI-O-T
Produced:2003 - 2003
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
