Multivox | MX-20 |
|

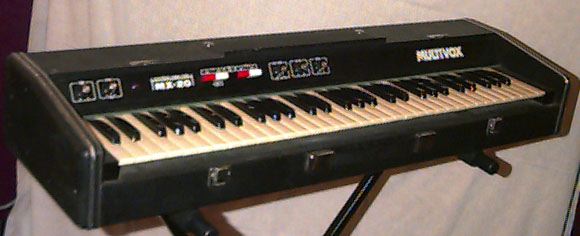

Description | The MX-20 was an electric piano produced from 1977 to 1978. Had five presets (high/low piano and clavichord and 'honky tonk') and a bass split with independent volume control. 61 key keyboard. Tune, Sustain and vibrato controls. |
| Brand | Multivox |
| Model | MX-20 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO Preset |
| Voices (max) | 61 |
| Multitimbral | 2 |
| Oscillators | 2 |
| LFO | 1 Sine |
| Engine Detailed | 2 Divide down OSC. 5 Presets |
| Envelope (VCA) | 1 Sustain |
| Memory | 5 Presets: Low Piano, High Piano, Honky Tonk, Low Clavichord, High Clavichord |
| Keys | 61 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Audio | 2 mono out |
| Produced: | 1977 - 1978 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
