Moog | Micromoog

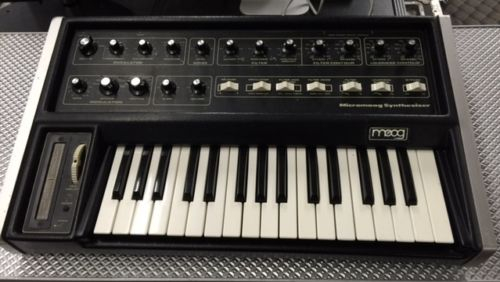

It's a tiny Moog. But don't underestimate it. Sure, it's just a single-oscillator mono-synth, designed as a budget performance Moog. But it's an inexpensive alternative to the Minimoog. In fact, it is often used as just a stand-alone filter processor since it has a filter that is virtually identical to the one found in the Minimoog, and it accepts external sounds for processing through itself (all at a fraction of the price for a Mini)! It also employs a ribbon controller (which was a cool new feature) for pitch bending. Notice that there are still plenty of knobs to give you access to the shape of your sounds! Unfortunately the construction feels kind of cheap. It has an early form of something like MIDI called Open System that allowed Moog synthesizers to connect and play together. It features 32 keys with audio processing through it's filter and VCA.

Engine TypeAnalog
Voices (max)1
Engine Detailed1 VCO
Filter (VCF)24 dB/oct lowpass (w/ ring modulation)
Envelope (VCA)1 VCA w/ attack, decay, sustain, release
ArpeggiatorSample & Hold
Key typeKeys
CV-gateMoog 'Open System'
Produced:1975 - 1975
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
