Moog | Liberation

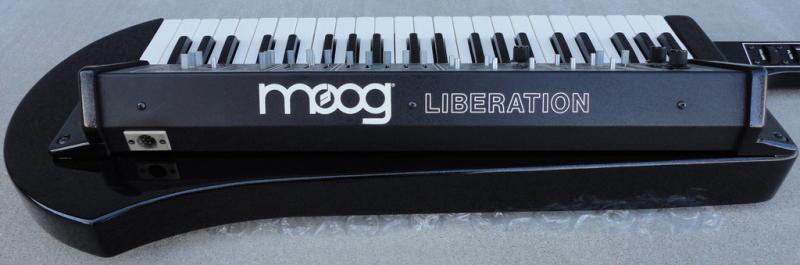

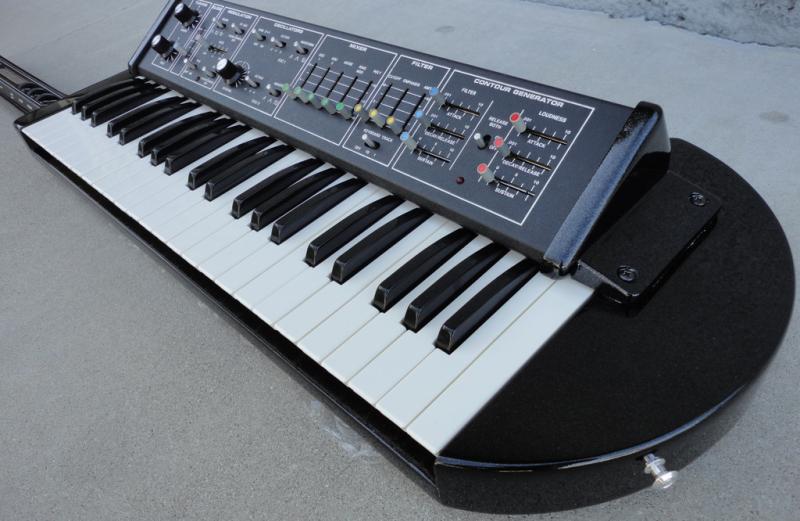

The Liberation was Moog's unique strap-on keytar style portable performance synthesizer. Being a dual-oscillator monophonic analog synth it is often considered comparable to Moog's other two-oscillator synths such as the Rogue or Concertmate MG-1, but in actuality the Liberation is most similar to Moog's most popular dual-vco synth, the Prodigy. The actual synth controls of the Liberation are nearly identical to the Prodigy, with the addition of Ring Mod, Noise and Polysynth controls in the Mixer section. The Liberation also uses sliders and toggle switches instead of the Prodigy's knobs and slide switches.

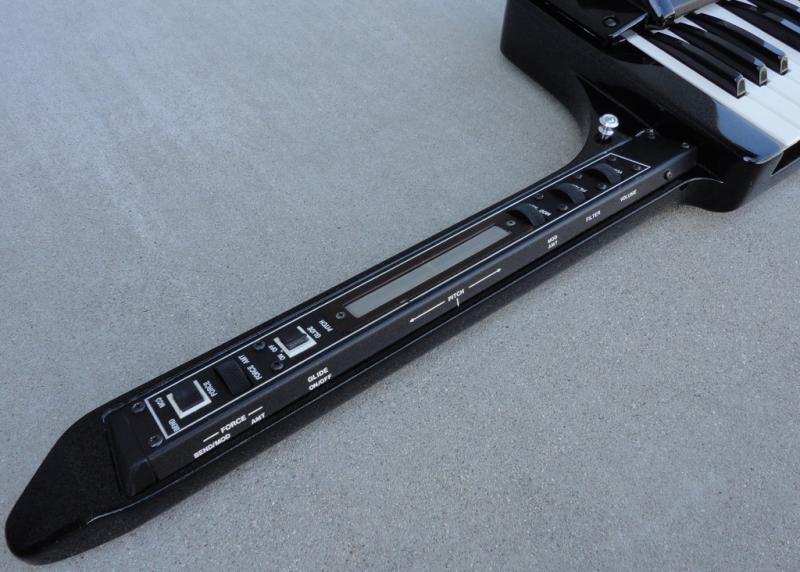

The Liberation is fairly simple to use and has that unique monophonic Moog sound. Its two analog oscillators are combined to produce a monophonic, single-note output. Each oscillator features sawtooth, triangle and square shapes (waveforms can be selected independently on each VCO) adjustable over three octave ranges each, and they can be mixed together to produce a variety of tones. There is also a simple polyphonic section that can be useful for playing organ-type sounds. There is the traditional 24 dB/oct Moog filter section with its own cutoff, resonance (emphasis) and envelope controls (attack, decay/release, sustain), and a Loudness amp with attack, decay/release, sustain envelope controls. Some other nice on-board features include a Ring Modulator, Noise Generator, and syncable VCO's. But one of its great features is its ribbon controller, located in the hand-grip portion of the synth which can be used for pitch bending and modulation effects.

If you're looking to perform with a cheap (by Moog standards) analog synth strapped on like a guitar then the Liberation should be right up your alley. Otherwise there's always the Prodigy.

Engine TypeKeytar
Voices (max)1
Engine Detailed2 VCO: OSC 1: Pitch: 32', 16, '8'; Wave: Sawtooth, Triangle, Rectangle. OSC 2 : Pitch: 16', 8', 4'; Wave: Sawtooth, Triangle, Square.
Filter (VCF)one 24dB/oct lowpass; cutoff, emphasis, env amount; Attack, Decay/Release, Sustain.
Envelope (VCA)Attack, Decay/Release, Sustain
FXRing Modulator
Key typeKeys
Produced:1980 - 1981
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
