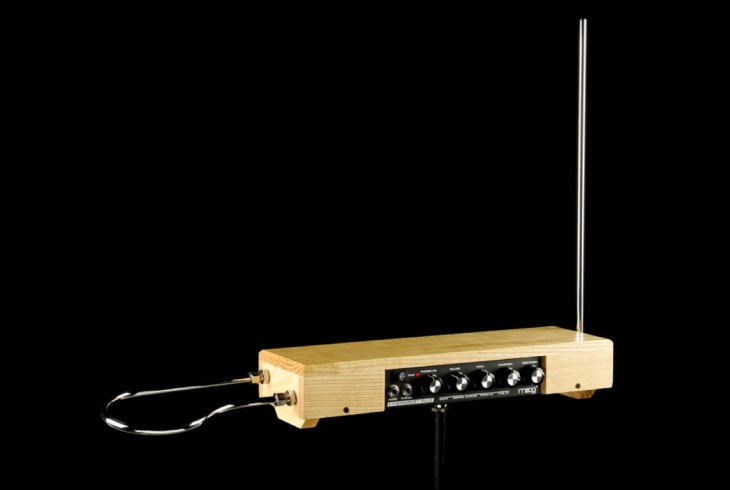

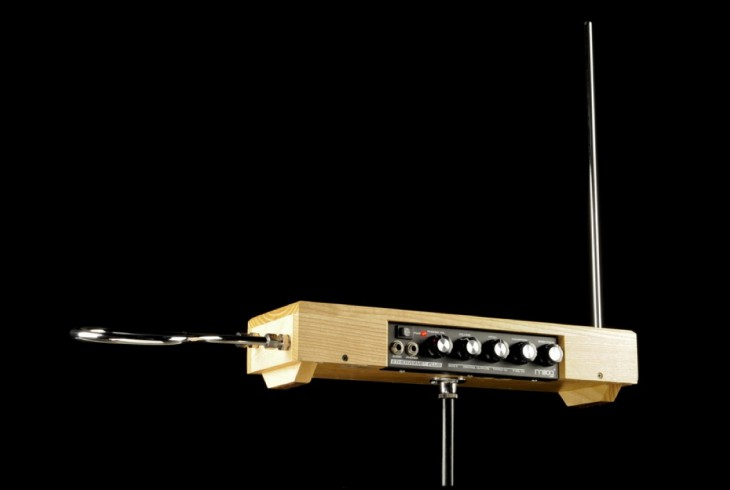

Moog | Etherwave Plus

Description

The newest member of the Moog Etherwave Theremin family is also the newest member of our Controller family. The Etherwave Plus extends the Theremin’s gestural playing technique to the world of analog synthesis and beyond. Control synthesizers and effects while playing the Theremin or use as a stand-alone CV (Control Voltage) controller.

The CV outputs control signals are proportional to the pitch and volume of the Theremin’s audio signal. Connect to the pitch and volume CV inputs of a Little Phatty, Voyager or other analog synthesizer for a completely new way to play your synth. These CV signals are not limited to pitch and volume control. Route them to any CV destination and create a new world of expression. Control anything from the cutoff frequency of a Moog Ladder Filter or the LFO Amount on a Moogerfooger Ring Modulator to the stereo panning on a Minimoog Voyager.

Already own an Etherwave Standard? If so, no problem. Moog is making this great addition to the Etherwave available for existing Etherwave theremin owners.

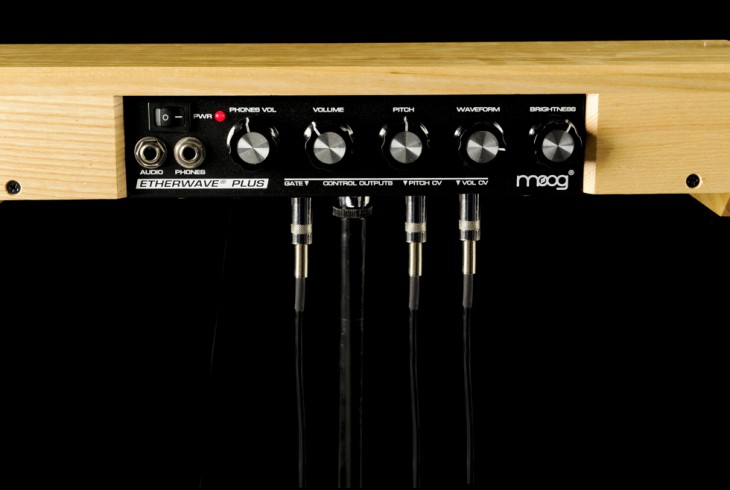

The Factory Upgrade let's Moog do the work and we'll check your Etherwave as well, or you can choose the Field Upgrade and do it yourself. Either way, the result will be your Etherwave with the addition of all the great 'plus' features: Pitch Preview, Headphone volume knob, separate headphone or pitch preview output, on/off switch with LED indicator, two Control Voltage outputs and one gate output.

BrandMoog
ModelEtherwave Plus
DeviceSynth
TypeTheremin
Engine TypeAnalog
EngineVCO
Voices (max)1
Oscillators1
Engine Detailed1 VCO Sine
Controllers2 Antennae
Keys0
Key typeN/A
VelocityN/A
AftertouchN/A
CV-gateCV out
Produced:2009
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
