|The Modal 002R is an 8 or 12 voice analogue-digital hybrid synthesizer. with two high-resolution NCO oscillators per voice (plus two sub oscillators), Modaldesigned four-pole transistor ladder filter with real analogue morphing, VCA, two LFOs, 2 modulation matrices and very powerful Sequencer and Arpeggiator.

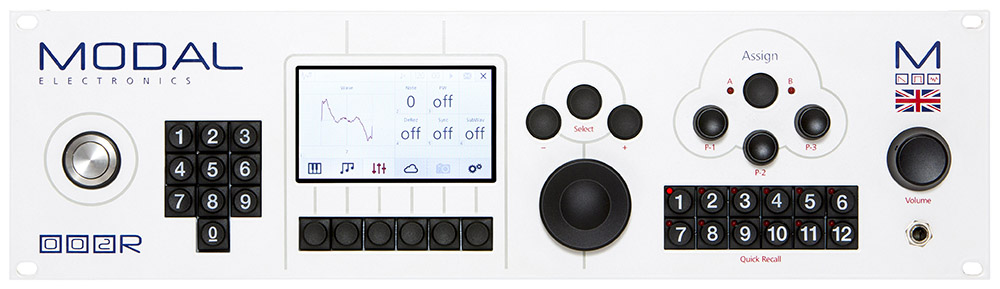

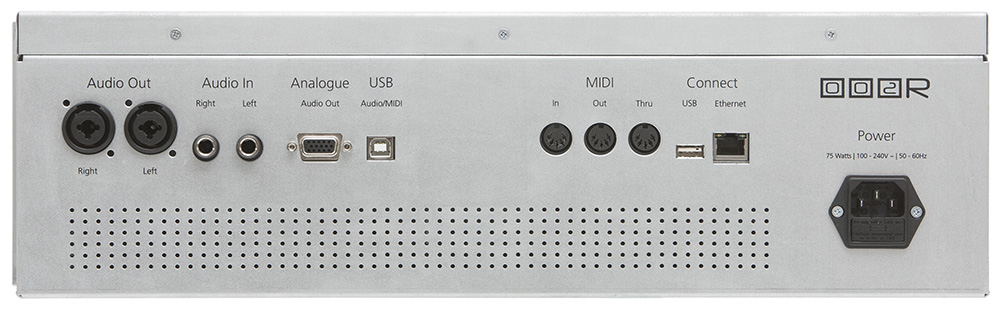

The hardware has been manufactured to fit in a 3U 19” rack and features a high quality steel chassis, aluminum turned encoders and high quality 4.3” LCD screen. Among the many connections, Modal 002R features an ethernet port to connect your synth to your network and enable updates via the internet (no need for MIDI sysex dumps) and also access to the Modal cloud features an HTML Web User Interface.
|LFO||2 Sample & Hold, Saw Up, Saw Down, Sine, Square|
|Engine Detailed||2 NCO and 2 sub per voice|
|Filter (VCF)||1 24dB Slope (4-pole), Low Pass, Resonance|
|Envelope (VCA)||2 ADSR|
|Sequencer||32 step plus Animator|
|Arpeggiator||‘fwd1’, ‘bck1’, ‘pen1’, ‘pen2’, ‘shuf’ and ‘rand|
|Extra info||Ethernet for direct internet acces for updates. 8 voice version available too|
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
