Macumbista | Benjolin |
|

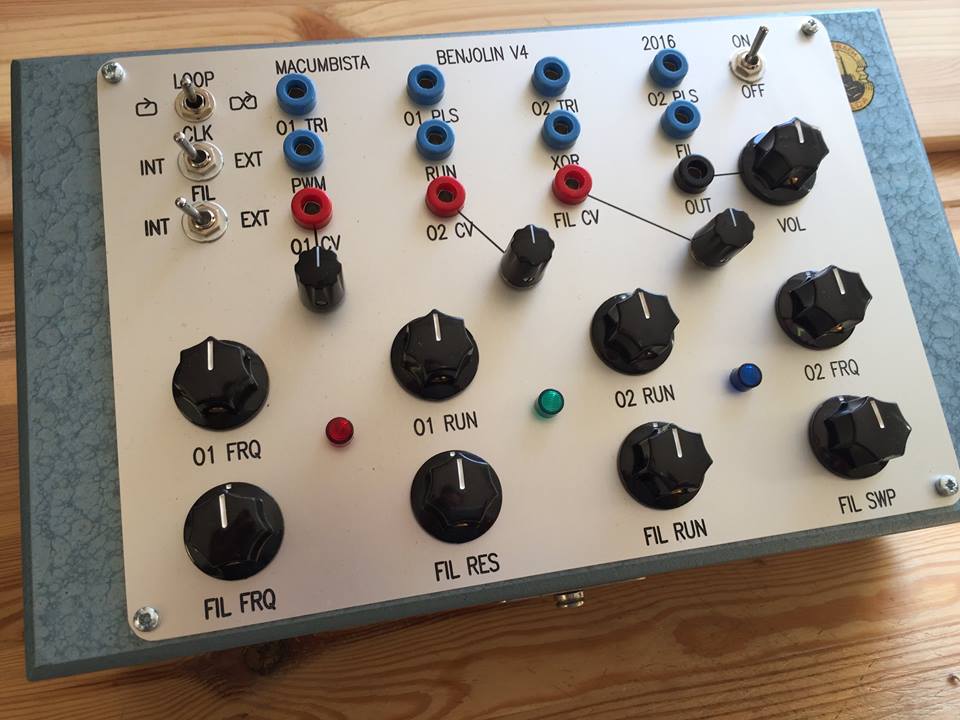

Description | The Benjolin is a standalone synthesizer designed by Rob Hordijk from the Netherlands. It contains two oscillators (one LFO and one VCO), a voltage controlled filter and a circuit called a “Rungler”, which allows chaotic cross-modulation possibilities between the different parts of the circuit. Hordijk refers to the Benjolin as a circuit which has been “bent by design.” These hand-made Macumbista Benjolins have been further customized with a patchbay, which can be used to interface with other modular synthesizers or to setup further control voltage feedback systems within the Benjolin itself, attenuators on the three control voltage input and LEDs displaying the internal state of the Rungler. FEATURES The patchbay of these Benjolins has banana jack connections for the square and triangle waveforms of each of the two oscillators, the Pulse Width Modulation output of the two oscillators, the Rungler output, the XOR (exclusive/or) logic operation of the two oscillators and the output of the filter. There are also banana jack control voltage inputs with attenuators for the frequency of each of the two oscillators and the filter cutoff frequency. The layout of the panel is designed to be both intuitive and playable (unlike many EuroRack modules, for example…). And finally, the three output bits of the Rungler have been visualized with red, green and blue LEDs. All Benjolins use a Neutrik 6.3mm (1/4″) output jack , an additional GROUND banana jack to interface with other modular systems and a 12 VAC “wall wart” power supply (mainland European and North American versions available). These Benjolins are produced under licensed agreement with Rob Hordijk. CUSTOM OPTIONS Additionally, there are a number of customizations available for PRE-ORDER ONLY: LOOP SWITCH: The LOOP switch locks the otherwise chaotic pattern of the Rungler into a loop. The UP position is a loop of 4 steps going forward, the MIDDLE position is the normal chaos of the Rungler, and the DOWN position is a loop of 4 steps forwards and 4 steps backwards. EUR 25 (incl. 19% EU VAT) / EUR 21 (shipped outside the EU) EXTERNAL INPUT SWITCH: The external input 6.3mm jack on the back of this Benjolin allows a signal from another source to be sent through the Low Pass Filter of the instrument. Selecting “EXT” on the FIL INPUT switch sends this signal to the FIL input, where the cutoff and resonance controls of the filter can be used to affect it. When the FIL INPUT switch is in the “INT” position, the PWM signal, mixed with a small amount of RUN voltage, is sent to the FIL (this is the normal Benjolin signal path). EUR 25 (incl. 19% EU VAT) / EUR 21 (shipped outside the EU) EXTERNAL RUNGLER CLOCK:: A jack of your choice (banana, mini-jack or 6.3mm jack) on the back panel of the instrument provides a switchable clock source for the Rungler of the instrument. The DOWN switch position clocks the Rungler from OSCILLATOR 2 of the intrument, the UP switch position clocks it from the external clock input. EUR 35 (incl. 19% EU VAT) / EUR 30 (shipped outside the EU) RUNGLER BITS OUT: Three colored banana jacks on the back match the colored LEDs on the front, and give a +5.6V gate voltage when the corresponding LED lights up. These are the individual bits of the Rungler, which are summed together through a simple Digital-to-Analog Converter to provide the RUN control voltage. EUR 25 (incl. 19% EU VAT) / EUR 21 (shipped outside the EU)Named after a vicious dinosaur, its sound is no less aggressive. TherapSid has evolved to create roaring noises that will cut through your mix like razor-sharp claws through a mammoth steak. So why do you need another synth, since they already take 90% of the space in your room and your significant other keeps complaining about it? Well, what sets TherapSid apart from other SID based synths is its focus on control. Instead of getting confused by lcds and damaging your eyesight trying to read tiny sub menu fonts, this instrument features no less than 35 knobs and 31 buttons to give you full power over your sound. TherapSid is lovingly handcrafted in the south of France and features a backlit front panel, walnut side-panels and comes with 100 presets to get you started. You can assign LFOs to knobs with one push of a button or sequence “snapshots” of knob positions using the flexible 16 step sequencer, enough to keep you busy until the next ice age.TherapSid is available either with pre-installed and tested 6581 or without SID (if you already have your own). |
| Brand | Macumbista |
| Model | Benjolin |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 1 |
| LFO | 1 Square, Triangle |
| Engine Detailed | 1 VCO, Pulse Variable, Triangle |
| Filter (VCF) | 1 24dB Slope (4-pole), Low Pass, Resonance |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | CV I-O |
| Produced: | 2014 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
