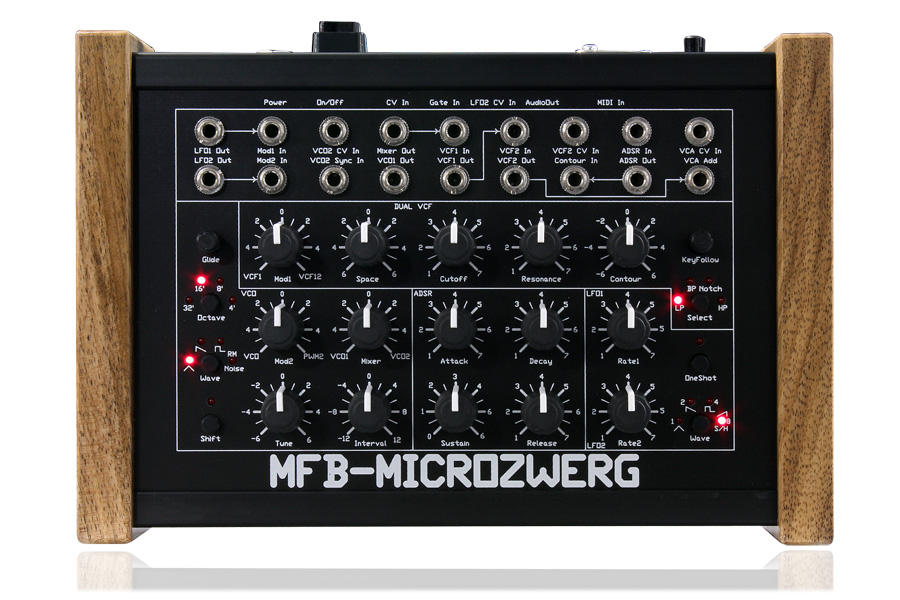

MFB | Microzwerg

Description

MICROZWERG not only bridges the gap between NANOZWERG and KRAFTZWERG. Due to its dual multimode-filter, it also offers an individual signal-path with specific sound potential. MICROZWERG’s numerous patch connections are simply inviting to be modulated by our flexible step-sequencer URZWERG or to interact with the multifunctional MEGAZWERG.

Individually operated and due to its dual oscillators and dual multimode-filter, MICROZWERG offers a lot more than typical analogue basses and lead sounds. Prepare yourself for some special timbres. The signal path and modulations are quickly reconfigured using a few patch chords with the result of an enormous boost in sonic variety. Combined with other members of MFB’s ZWERG synthesizer family or even a modular system, MICROZWERG’s possibilities grow further.

A brief overview to the sections of MICROZWERG:

Both oscillators offer triangle, saw tooth and rectangle waveform shapes. Where oscillator 1 also offers a needle impulse, VCO 2 has a built-in noise generator. VCO 2 can be detuned by plus minus one octave in reference to VCO 1. Both oscillators can also be synced, using a patch connection. In addition, the separate output of VCO 2 can be used to modulate the filter. Finally, ring modulation is possible in combination with MEGAZWERG, where the ring modulated output can be fed back into MICROZWERG.

The two state-variable multimode-filters run with 12dB slope per octave and offer lo-, hi- and bandpass-modes as well as notch-filtering. The filters are prewired in series to increase the slope when used in same operation mode. Here, the slope is variable because both cutoff-controls can be shifted against each other using the slope control. Combining a lo- and hipass-filter result in a variable band pass with adjustable bandwidth and individually controllable resonances. When preferred, a parallel routing is possible using a patch connection, too. In this case, MICROZWERG allows two separate shifted bandpass-filters, notch-filtering with variable bandwidth or a combination of bandpass-filter with followed lo- or hipass-filter. Resonance can reach up to self-oscillation for both filters. The cutoff-frequencies are manually controlled simultaneously or by envelopes. They can be shifted against each other using the space-control. Modulations by LFO or CV can address either filter 1 or both filters.

A simple patch from Key CV to the contour- or mod-input can achieve pitch-dependent cutoff-frequency control. Because both filters offer independent in- and outputs, MICROZWERG is also destined to be used as an effective dual-filter for external sound sources.

The ADSR envelope is internally prewired to control the filters’ cutoff-frequency. MEGAZWERG or any modular system can jump in via patch chords whenever a second envelope is needed.

The two LFO offers four waveform shapes each and a one-shot-function, where the selected waveform is played only once after a gate-trigger, thus imitating a simple envelope that might be used for pitch or VCA control. LFO 2 includes a sample & hold.

Internal modulation wirings offer LFO control over the filters’ cutoff as well as the oscillators’ pitch or VCO 2’s pulse width. LFO 2’s speed can be modulated by an external control voltage, allowing increasing or decreasing the speed by a factor of 30. Using this feature, MICROZWERG is capable of extreme slow and fast modulations.

The control signals of the envelope and both LFOs are available as CV-outputs and can therefore be used to control other functions of MICROZWERG as well as in other analogue synthesizers and modular systems.

The signal-path VCO 1/2-VCF 1/2-VCA as well as the common main modulations is internally prewired, so that MICROZWERG can be played immediately. All further routings are created using the patch jacks. These can be used or controlled by MICROZWERG itself or any compatible external device.

MICROZWERG can be controlled by MIDI from any compatible keyboard or DAW. Note commands are received as well as pitch-wheel (+/- 2 semitones) and modulation-wheel data, the latter controlling the filter’s cutoff frequency.
BrandMFB
ModelMicrozwerg
DeviceSynth
TypeDesktop
Engine TypeAnalog
EngineVCO
Voices (max)1
Multitimbral1
Oscillators2
LFO2 Sample & Hold, Saw Up
NoiseY
Engine Detailed2 VCO, Saw Up, Square, Triangle, White Noise
Filter (VCF)2 12dB Slope (2-pole), Band Pass, High Pass, Low Pass, Notch, Resonance
Envelope (VCA)1 ADSR
Keys0
Key typeN/A
VelocityN/A
AftertouchN/A
MidiI
CV-gateCV/Gate I-O
Produced:2012 - 2014
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
