MAM | FreeBass 383 |
|

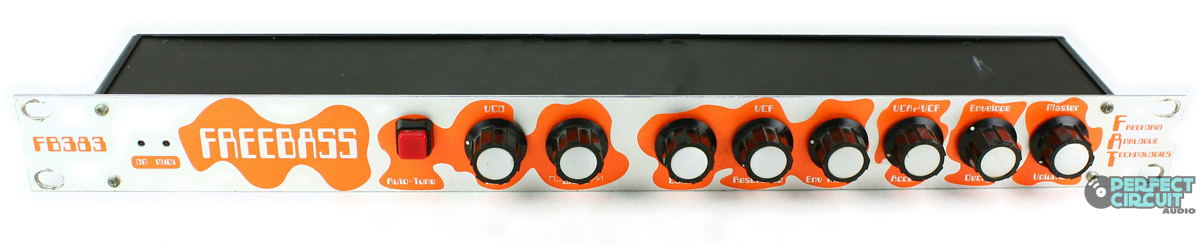

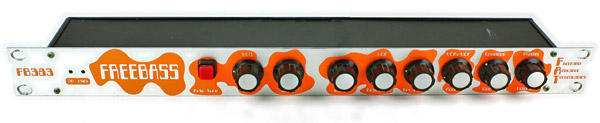

Description | Another monophonic analog TB-303 clone! The FB 383 is a re-packaged version of the MB 33 with a special front-panel design as part of an exclusive deal with Turnkey music shop UK. Just like the MB 33, the FB 383 offers all the same basic sounds and controls as the original TB-303 in a 1-unit rack module. It has just 8 basic knobs for the same basic 303-like control: tune, filter cutoff, resonance, envmod, accent and decay. Unlike the 303 however, the oscillator can be varied from sawtooth to square from a knob on the front! Also featured is an external audio input to the filter for processing other elements. The FB-383 makes a decent 303 sound however it lacks too many functions that should be there. Controls do no send or receive MIDI and there is no memory for storage of your own sounds. However, at its low price tag, you get what you pay for and for a quick and easy 303 the FreeBass comes in handy! |
| Brand | MAM |
| Model | FreeBass 383 |
| Device | Synth |
| Type | Rack |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 1 |
| Engine Detailed | 1 VCO with mixable sawtooth and square waveforms. |
| Filter (VCF) | 24 dB/oct lowpass filter with cutoff-frequency, resonance, ENV-modulation controls |
| Envelope (VCA) | Decay-time (200 ms - 2,5 sec.) VCA separate ENV-generator with non controllable voltage assignment. ACCENT pot for accent-intensity; can be activated at velocity parameters greater than 120. |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
| Extra info | re-packaged version of the MB 33 |
| Produced: | 1996 - 1996 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
