Korg | X-911

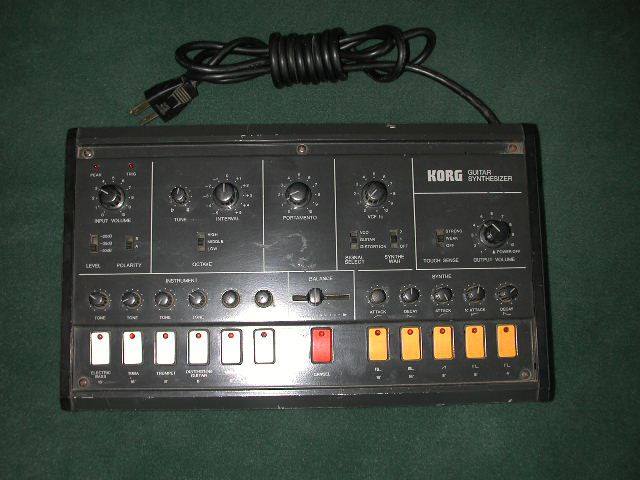

The Korg X-911 is a very underestimated synth. What it was intended to be, was a stand alone guitar synthesizer. What it now represents, in these enlightened times, is an all analog, quite unique, signal processor/effects unit. Whereas a true guitar synth really requires its own dedicated pickup arrangement, this unit simply accepts a standard 1/4" jack input. Just patch your guitar, microphone, or other instrument into the X-911 and play one note at a time. Sporting both CV/Trigger inputs AND outputs, these features alone, make it quite a useful little toy.
The front panel is divided conveniently into semi-preset traditional sounds, called "Instrument", and more adventurous sounds with the nomenclature "Synthe". The Instrument sounds are named Electric Bass, Tuba, Trumpet, Dist. Guitar, Violin and Flute. The Synthe sounds are designated as graphical waveform icons (Pulse, Ramp, Square). Every voicing has adjustable parameters, with most of the Instrument sounds having a filter control, bar the Violin, which has an envelope control. The Synthe sounds all have envelope controls, namely Attack and Decay.
The two sections may be overlaid or used separately, with control via the central balance slider. Many features such as Portamento, Interval, Hold etc. are foot switchable via inputs on the front panel. Naturally, the all important Voltage Controlled Filter is in residence, as is a Portamento control. Velocity Response/Touch Sensitivity is controlled by a 3 way switch. All in all, this unit is ideal for those Soundmeisters seeking to distance themselves from the all too common sameness of the modern digital era.
|Engine Detailed||2 (Instrument and Synthe)|
|Filter (VCF)||1; Tone, VCF cutoff|
|Envelope (VCA)||1; Attack, Decay|
|Memory||6 Instrument patches: Electric Bass, Tuba, Trumpet, Dist. Guitar, Violin and Flute|
|Controllers||FM in; VCF in; 4 fx input|
|CV-gate||Cv/Hz in/out; Trig in/out;|
|Produced:||1980 - 1980|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
