Korg | Wavestation EX
When Sequential Circuits finally went belly-up, their research and development into vector synthesis was picked up at Korg. This led to the hugely successful Wavestation Synthesizer which was based on Sequential's ProphetVS. The Wavestation incorporated the 2-dimensional vector joystick of the ProphetVS which allowed the user to alter and animate sounds.
Korg added to this a second break-through form of synthesis: wave sequencing, by which short segments of sampled audio waveforms could be played one after the other and cross-faded into each other for some complex and unusual tones, pads, textures and rhythms. The Wavestation had 2MB of ROM based samples at your disposal. Programming is not exactly easy but this great digital synth is capable of lush ambient sounds and strange effects. It has the obligatory lowpass filter, though it is non-resonant and digital sounding. Also on-board are some multi-effects which are pretty nice. This synth is easily upgraded and expandable with PCM cards too.

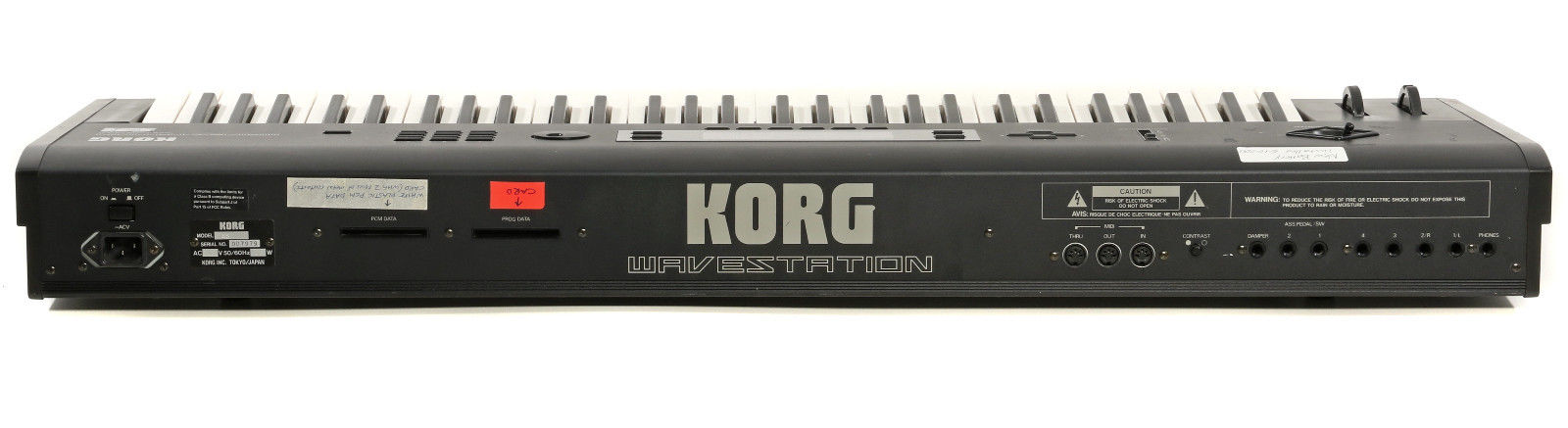

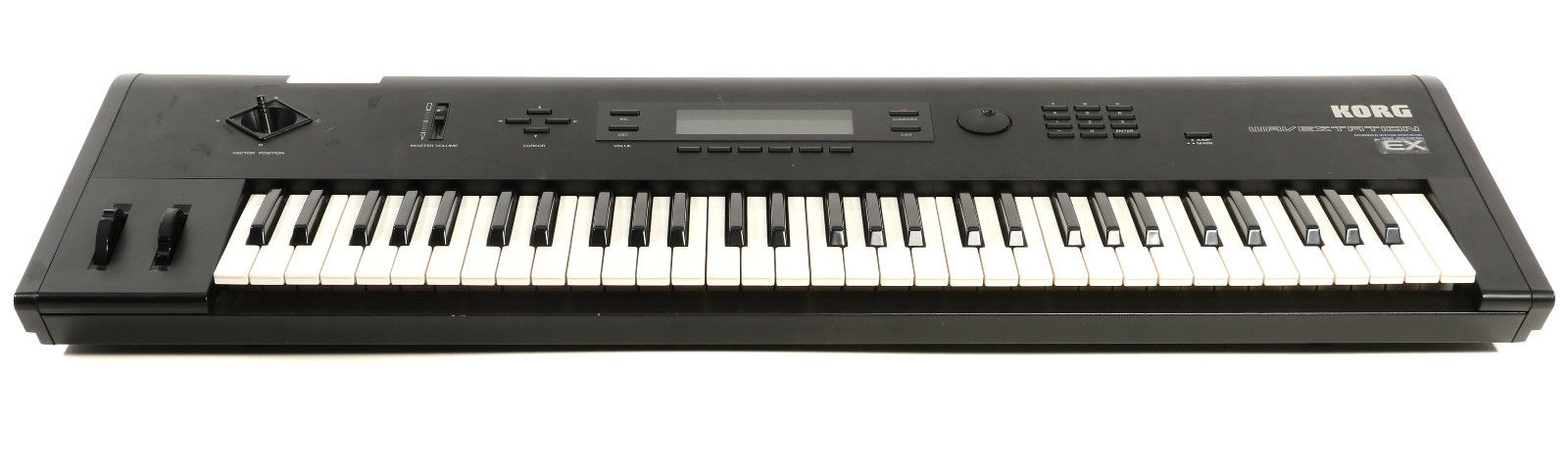

In 1991 the Wavestation EX, also called EXK-WS, was released (pictured above). The EX added 150 more waveforms (4MB) including acoustic instruments and drums. The EX also adds 8 multi-effects including: Mod Pitch Shift-Delay, Stereo Compressor-Limiter/Gate, Vocoder, Overdrive and Distortion effects, transposable keyboard and added MIDI implementation and control.
|Engine Detailed||Digital synth with 4MB ROM samples, Vector Synthesis, Wave Sequencing|
|Filter (VCF)||1 LowPass filter per voice|
|Memory||105 patches, 150 performances|
|Produced:||1991 - 1994|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
