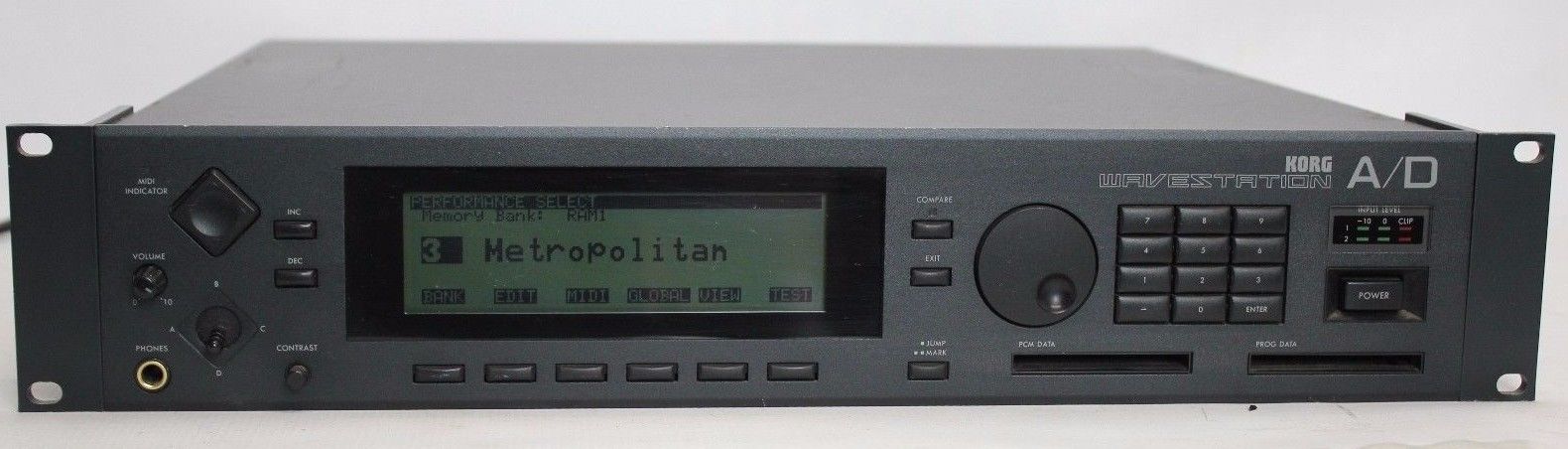

Korg | Wavestation A/D |
|
Description | The Wavestation A/D is essentially a compact rackmount module of the Wavestation EX. It has the 4MB of advanced Vector Synthesis and Wave Sequencing synthesis and editing capabilities. The A/D also has a joystick controller to aid editing the Vectors. A new feature is a stereo analog input for filtering and modulating any external audio sources. They can even be used as part of the vector wave shaping, vocoder and more to incorporate it into your sound. The Wavestation A/D also has a wealth of on-board digital multi-effects for sweet synth sounds and pads! |
| Brand | Korg |
| Model | Wavestation A/D |
| Device | Synth |
| Type | Rack |
| Engine Type | Digital |
| Engine | Wave |
| Voices (max) | 32 |
| Multitimbral | 8 |
| Oscillators | 4 |
| Engine Detailed | Digital synth with 4MB ROM samples, Vector Synthesis, Wave Sequencing |
| Filter (VCF) | 1 LowPass filter per voice |
| FX | 55 |
| Memory | 140 patches, 200 performances |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

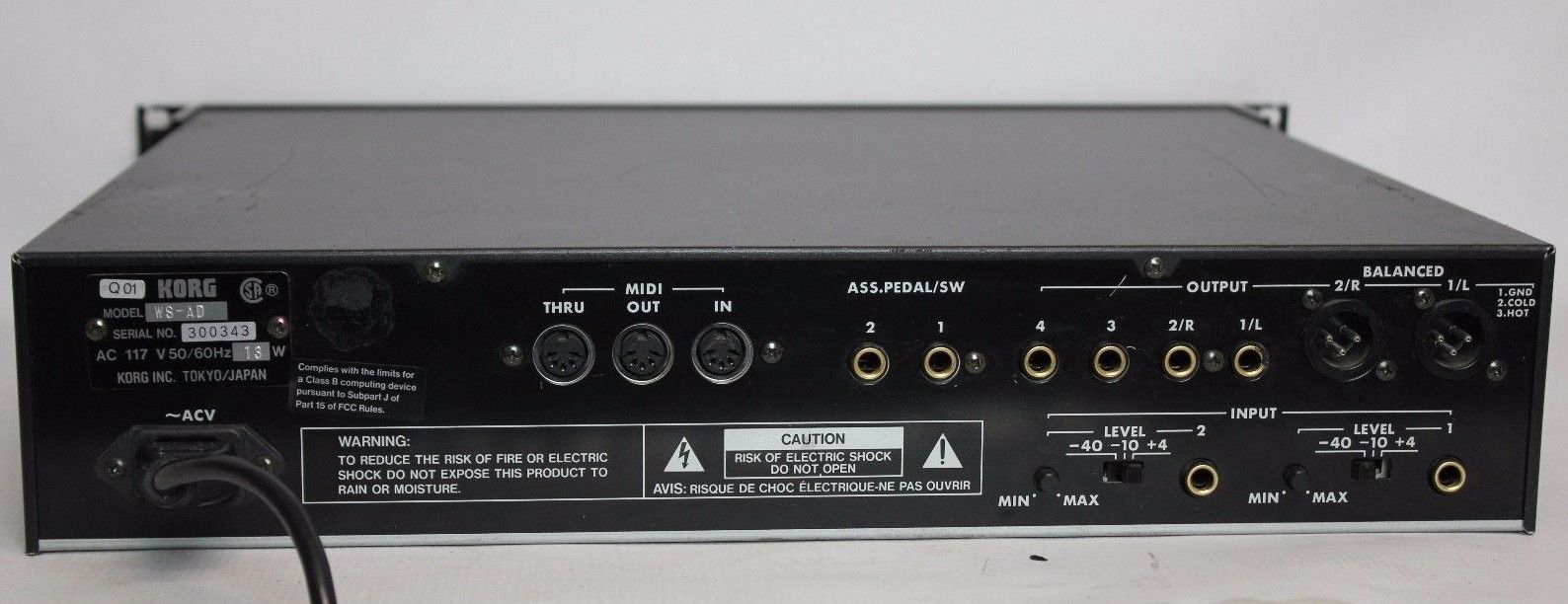

| Audio | Stereo analog in |
| Midi | I-O-T |
| Produced: | 1991 - 1991 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
