Korg | Trinity (V1) |
/Korg-Trinity-61-1.jpg)
/Korg-Trinity-61-2.jpg)
/Korg-Trinity-61-9.jpg)
|

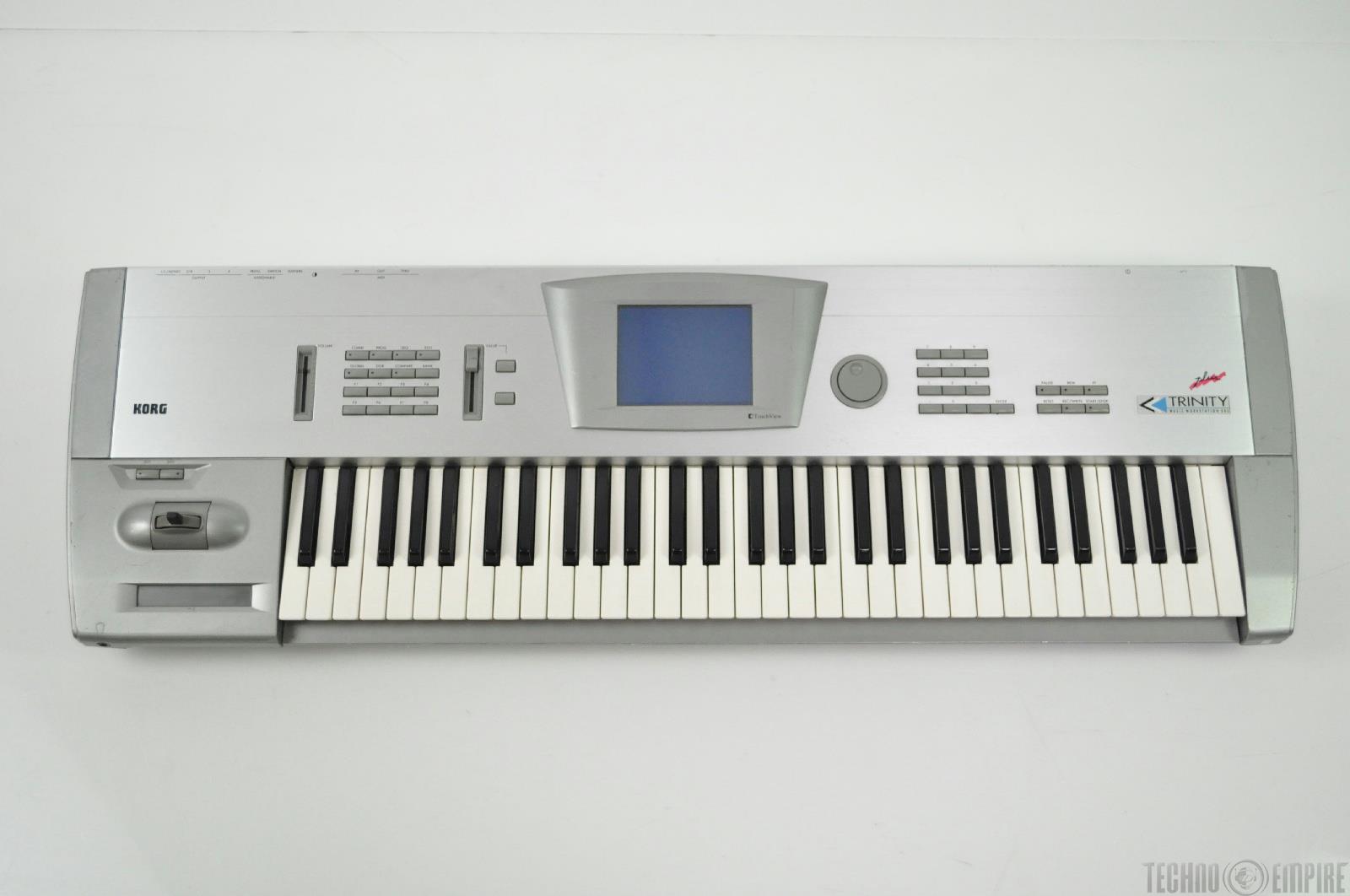

Description | The Trinity was a major break-through synthesizer for Korg. It is a beautiful, state of the art and superb sounding music workstation which first appeared in 1995. Its most notable new feature to the synthesizer industry is the super-cool 320 x 240 TouchView Graphical User Interface....which is also the heart of the instrument! This workstation seamlessly combines excellent digital sounds, in-depth yet intuitive programming, real-time controllers, upward expandability and elegant design to create the perfect all-around synthesizer. The Trinity's sounds come out of a 24MB ROM chip with 48kHz multi-samples of about 375 sounds and 258 drums. You can even add an expansion board of Prophecy sounds and Z1 sounds! There's a good digital multi-mode filter with hi/low/band pass, band reject, resonance and more. There's also 110 effects for adding life to your sounds...up to 8 simultaneous insert effects and 2 master effects. The Trinity has an excellent on-board sequencer allowing it to be the center of your music studio...it's that good! And it's fun to use the touch-screen. It's a 16-track sequencer with an 80,000 note capacity, 100 patterns and 20 songs. With the 32 voices and plenty of drum sounds, you can use the Trinity as your all-in-one music studio! Great in the studio, or live there are plenty of real-time controllers including a Joystick, Ribbon controller and 2 assignable knobs and multiple sound outputs. Expandability includes a SCSI port, Internal Hard Disk Recording, 8Mb Flash Rom Playback-Sampler Option (which reads all Korg and Akai sound libraries), Digital ADAT I/O option and the SOLO-TRI Prophecy expansion board. Later the MOSS-TRI expansion as well. The Trinity has a 61 key keyboard with velocity and aftertouch. |
| Brand | Korg |
| Model | Trinity (V1) |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 32 |
| Multitimbral | 16 |
| Oscillators | 1 |
| LFO | 2 |
| Engine Detailed | ACCESS (Advanced Combined Control Synthesis System): 24 Mbyte PCM ROM, with 375 different PCM multi-samples and 258 drum samples; |
| Sampler | Optional Add-On: 8MB Sample Playback, reads Akai and Korg sample libraries. |
| Filter (VCF) | 1 12dB Slope (2-pole), 24dB Slope (4-pole), Band Pass, Band Reject, High Pass, Low Pass, Resonance |
| Envelope (VCA) | 2 Initional Level, Delay, Attack, Decay, Decay 2, Sustain, Sustain Level, Release |
| FX | Stereo digital multi-effect system - 2 master effects and 8 insert effects simultaneously. 14 effects algorithms for master effect and 100 effects algorithms for insert effect |
| Memory | 256 programs/256 combinations for ACCESS, 64 programs for MOSS, additional 256 programs/256 combinations for ACCESS plus 64 programs for MOSS are available when PBS-TRI optional board is installed |
| Sequencer | 100 patterns |
| Recording | 20 songs, 1/192 resolutions, 80,000 notes, 16 tracks, reads and writes Standard MIDI File |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Midi | I-O-T |
| Extra info | Expandability includes a SCSI port, Internal Hard Disk Recording, 8Mb Flash Rom Playback-Sampler Option (which reads all Korg and Akai sound libraries), Digital ADAT I/O option and the SOLO-TRI Prophecy expansion board. |
| Produced: | 1995 - 1995 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
