Korg | MiniKorg-700S

Description

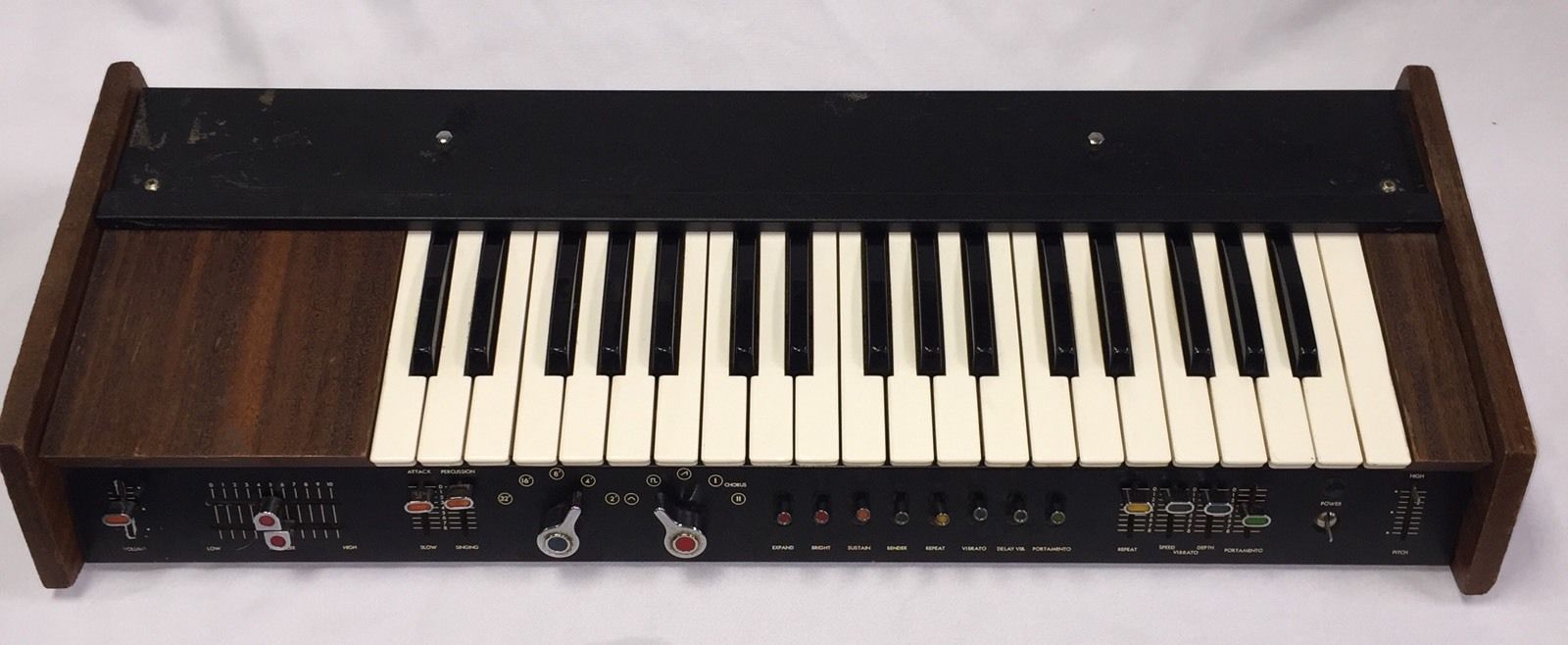

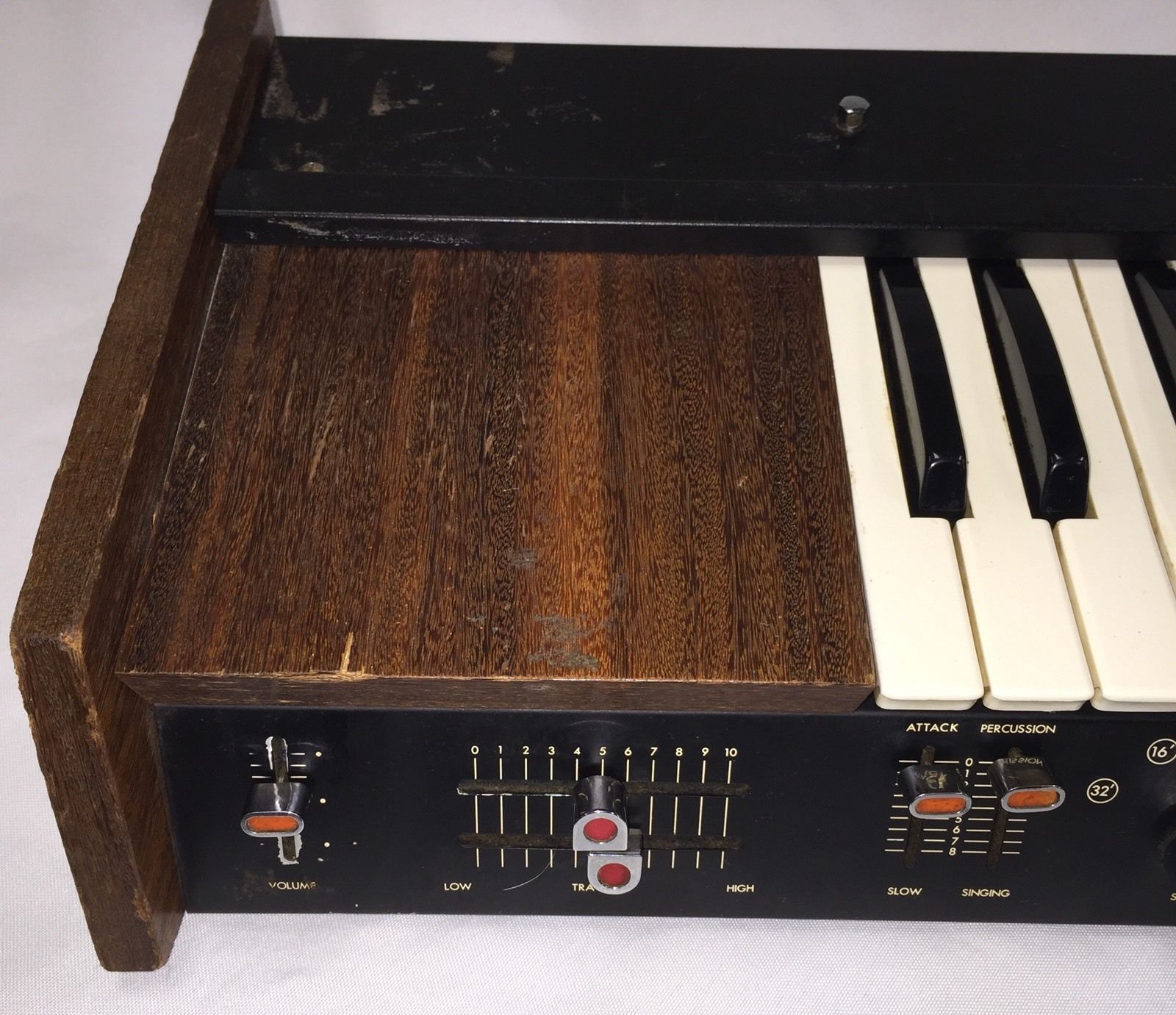

The MiniKorg-700S is an old and simple monophonic analog keyboard from Korg. It is a dual-oscillator synth related to Korg's first monosynth, the single oscillator MiniKorg-700. Most of the controls are located in an odd place beneath the keyboard so as to make room above the keyboard for a sheet-music stand. Some controls have bizarre names like Bender, Traveler and Expand for the auto-bend, filter and envelope, respectively.

It has three ring modulators for some strange sounds and noises. Sometimes a decent bass sound for techno music can be achieved using the MiniKorg's hi-pass and low-pass filters. The two oscillators can be de-tuned and they offer triangle, sawtooth and square waveforms. There are some strange analog effects built-in as well such as portamento, a rudimentary repeat-delay, auto-bend (bender), vibrato and Chorus and Noise waveforms.

This limited and quirky little synth is a nice collectors item but rarely seen or used anymore. It has relatively no performance controls like pitch/mod, but for ancient analog technology, this synth is quite stable and reliable. It is still quite capable of generating a very analog bass sound, thud, thump, growl or squeal. The wood side-panels and large primary colored knobs and sliders are a sure sign of Vintage status.

BrandKorg
ModelMiniKorg-700S
DeviceSynth
TypeKeys
Engine TypeAnalog
EngineVCO
Voices (max)1
Oscillators2
LFOY
NoiseY
Engine Detailed2 VCOs (sawtooth triangle, square)
Filter (VCF)High-pass and Low-pass filters
FX3 Ring modulators, Portamento, auto-bender, Vibrato, Repeat, Chorus
Keys37
Key typeKeys
VelocityNo
AftertouchNo
Produced:1974 - 1974
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
