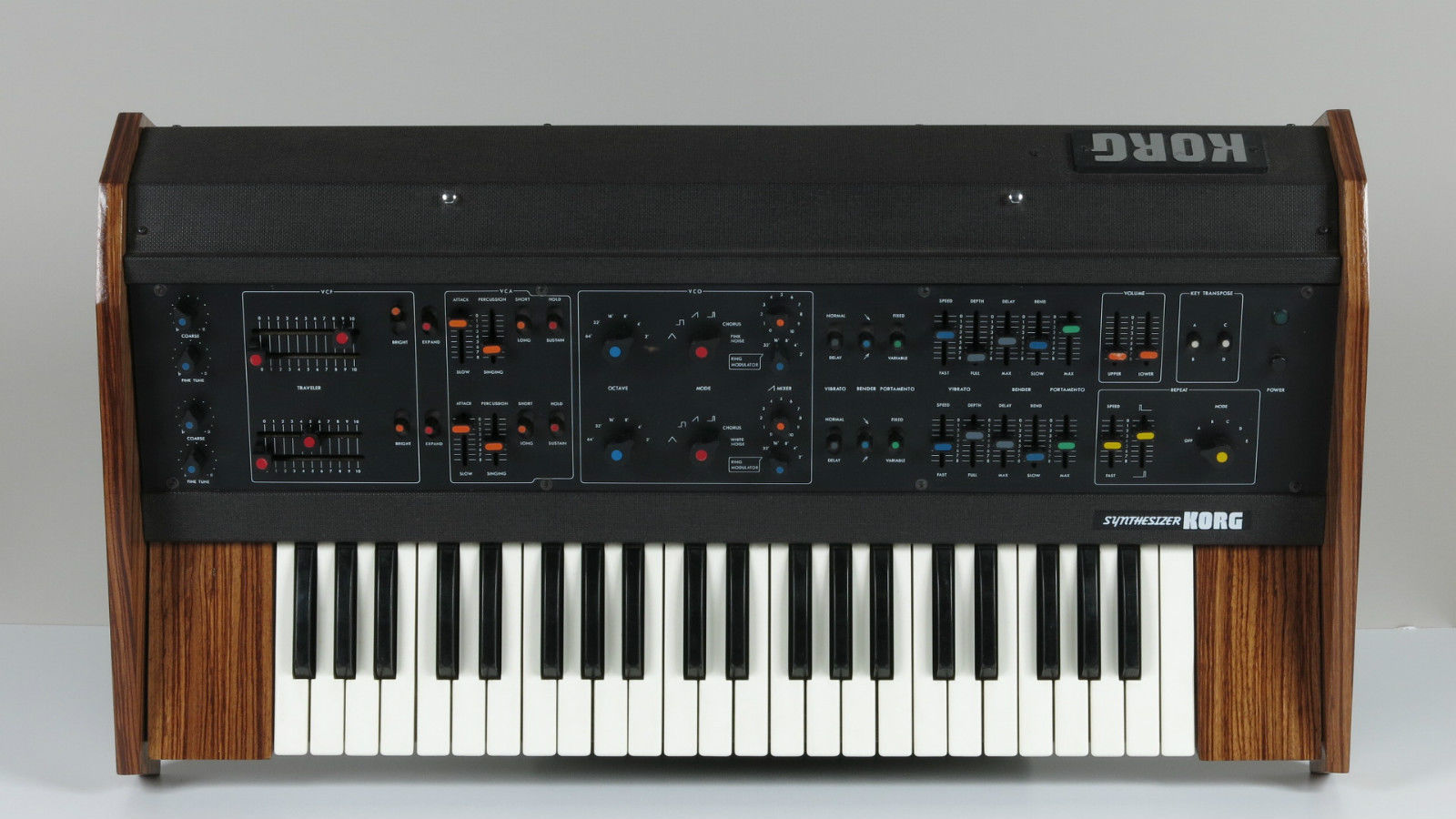

Korg | Maxi-Korg 800DV


A popular duophonic/monophonic classic from Korg. It's got 2 analog oscillators that can be used for one fat monophonic sound or 2 VCO's per voice for a fat duophonic sound. Flexible design with 2 voltage controlled filters and even a ring modulator. The Maxi-Korg is a great source of early Korg sound that rivals competitors like the OSCar and Roland SH-synths. No MIDI, no memory, but good bass and screechin' leads! It has no CV input either, though it can be modified to accept externnal control from the less standard Hz/V protocol (also used by Yamaha).

Most people usually understand it best as two separate MiniKorgs inside one keyboard with all the controls to both. Most people will stack both voices as the triggering can be tricky as duophonic. It has the very effective ability to delay one voice before it triggers when played mono.

ModelMaxi-Korg 800DV
Engine TypeAnalog
Voices (max)2
LFOLFO x2: PWM + Vibrato
Engine DetailedVCO x2: Scale (64', 32', 16', 8', 4', 2'), Waveform (triangle, square, sawtooth, pulse, PWM), Pink Noise, White Noise; SUB OSC x2: Scale (32', 16', 8', 4', 2')
Filter (VCF)VCF x4: Traveler (High Pass, Low Pass)
Envelope (VCA)VCA x2 + ENVELOPE GENERATOR x2: Attack Time, Singing Level, Range Selector, Mode Selector
Key typeKeys
Produced:1975 - 1975
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
