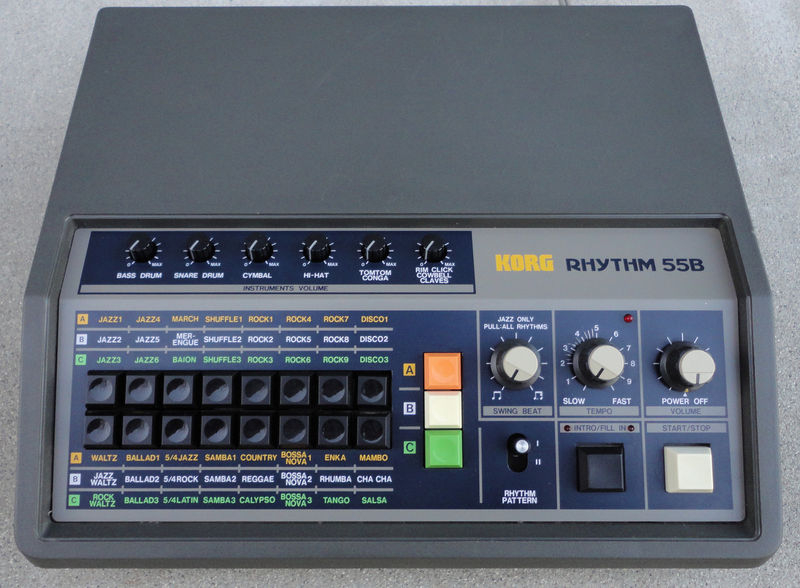

Description | The KR55 was, for its time (1979), an advanced preset rhythm drum machine with up to 96 preset rhythm patterns! These patterns cover the whole gamut of presets (Waltz, Samba, Rhumba, Bossa Nova, Tango, Slow Rock, Swing, Rock, etc.). The KR55 also featured a "swing beat" control to add a variation to the groove. Each drum sound's level can be individually adjusted for each pattern. It can also be externally controlled via footswitch jack for the Start/Stop and Intro/Fill switches. The KR55B was a black-chassis version released a few years later in 1982 with twice as many rhythm patterns. |
| Brand | Korg |
| Model | KR-55B |
| Device | Drum |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO Preset |
| Voices (max) | 12 |
| Engine Detailed | 12 Tones: Bass Drum, Snare Drum, HiHat x 2, Cymbal, Low Conga, High Conga, Rim Shot, Claves, Cowbell, Tom Tom x 2 |
| Sequencer | 96 Patterns, 43 intros, 32 fills. |
| Controllers | Level for each Drum Sound, Tempo, Swing Beat, Start/Stop, Intro/Fill (Start/Stop and Intro/Fill functions can be triggered by external footswitch) |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
|
Produced: | 1982 - 1986 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
