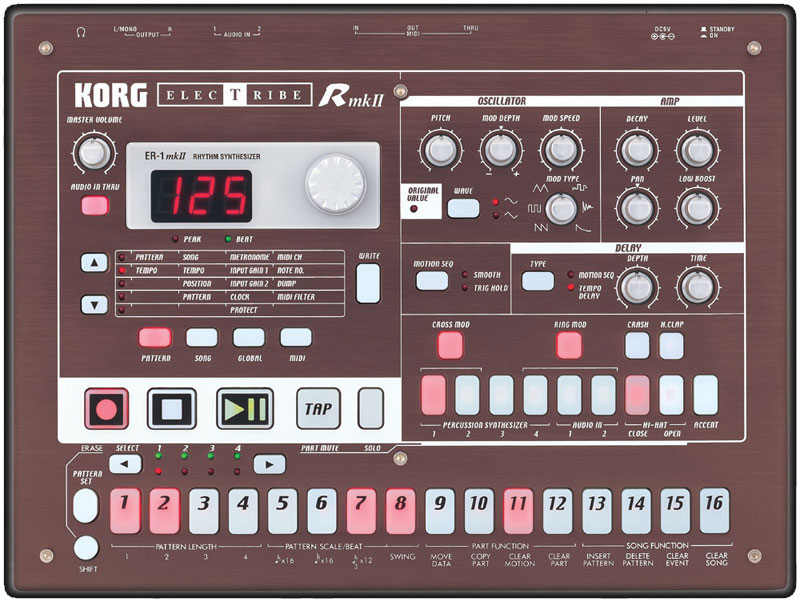

Korg | ElecTribe R (ER-1mkII)


Main features
• The ER-1mkII is a simple, analog-feeling percussion synthesizer with a four-part percussion synthesizer,
two audio input parts, four PCM sound parts, and an accent part.
• By combining percussion sound with audio input (external input) rhythms, the ER-1mkII gives
you the expressive possibilities of a completely new type of rhythm machine.
• The Motion Sequence function lets you record and loop knob movements, and these patterns can
be recorded independently for each part.
• Sixteen step grid input is featured --- the ideal way to input rhythms. It's also easy to record in
• You can quickly modify sounds or rhythm patterns to change your performance while you play.
• Sounds you create and up to 256 original rhythm patterns (each up to 64 steps long) can be stored
in memory.
• Up to sixteen songs can be created by combining multiple patterns and adding knob movements
etc. (event data), and stored in memory.
• Delay and low-boost effects are provided.
• Pattern Set Play lets you register sixty-four patterns in the sixteen step keys, and switch patterns as
you perform.
• Tap tempo and MIDI Clock can be used to synchronize the ER-1mkII's performance with an external
sequencer or turntable etc.
• The ER-1mkII can be controlled from an external sequencer or keyboard etc., and used as a MIDI
expansion tone generator.
• The MIDI Dump function lets you save data on a computer or external sequencer etc.
ModelElecTribe R (ER-1mkII)
Engine TypeDigital
EngineVA, PCM
Voices (max)10
Engine DetailedAnalog Modeling + PCM
Filter (VCF)1 Low Pass, Resonance
Envelope (VCA)AD
FXDelay (normal, motion sequence, tempo delay)
Memory256 Patterns, 16 songs (256 patterns maximum per song, event recording 35,700 events maximum)
Key typeTouch pads
AudioStereo out
Produced:2003 - 2005
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
