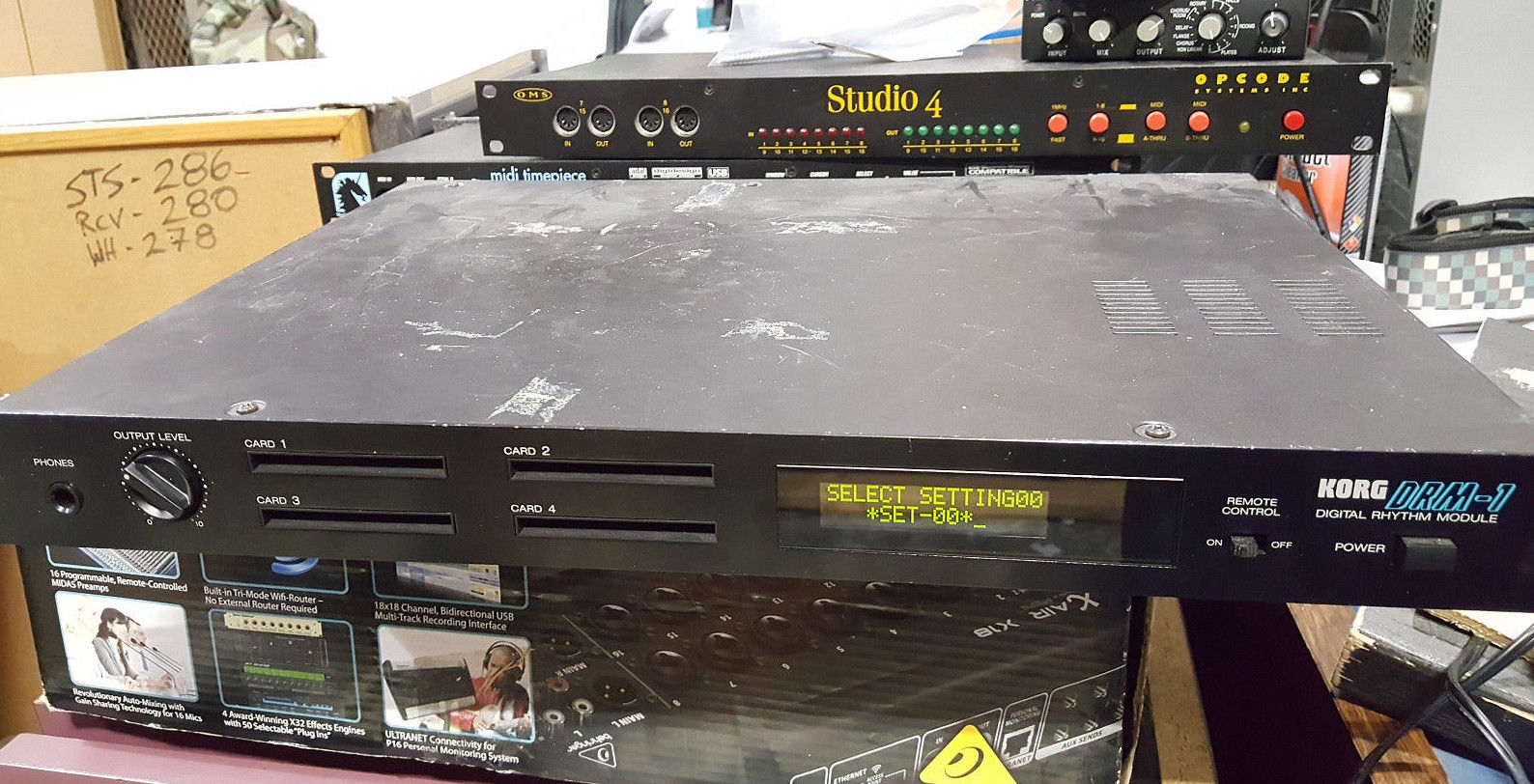

Korg | DRM-1 |
|
Description | KORG DRM-1 is a rack-version of drum machines DDD series has 8-note polyphony, 12-bit PCM samples (23), 16 drum kits in RAM memory, 16 tools in each editable parameters for a single sound - pitch, decay , pan, volume, velocity, phase, and others. There is a built-in real-time sequencer 16 user patterns, 8 individual mono outputs, 7 trigger inputs for use with external dynamic pads (with full settings in the menu), stereo output, inputs pedals and control the tempo. To access all functions of the module is attached remote control (remote control), there are 4 slots ext. ROM / RAM expansion cards (compatible with DDD series of drum machines), MIDI In / Out / Thru. |
| Brand | Korg |
| Model | DRM-1 |
| Device | Drum |
| Type | Rack |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 8 |
| Engine Detailed | 23 Sampled sounds |
| Envelope (VCA) | Decay |
| Drums | 16 Drum kits |
| Sequencer | 16 user patterns |
| Recording | 16 songs, 4400 notes |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

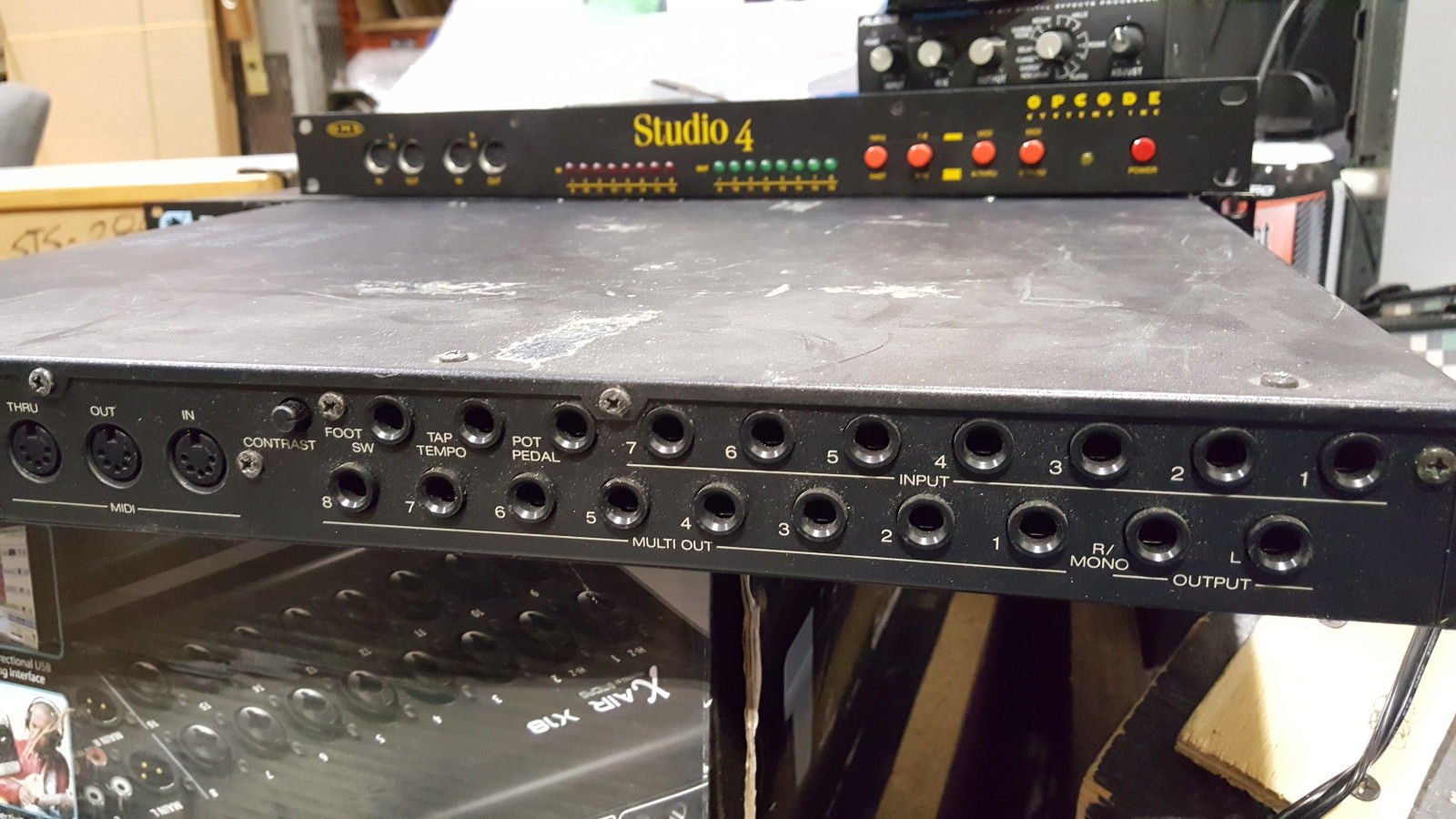

| Audio | Stereo main and 8 mono out |
| Midi | I-O-T |
| CV-gate | 7 trigger in |
| Produced: | 1987 - 1987 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
