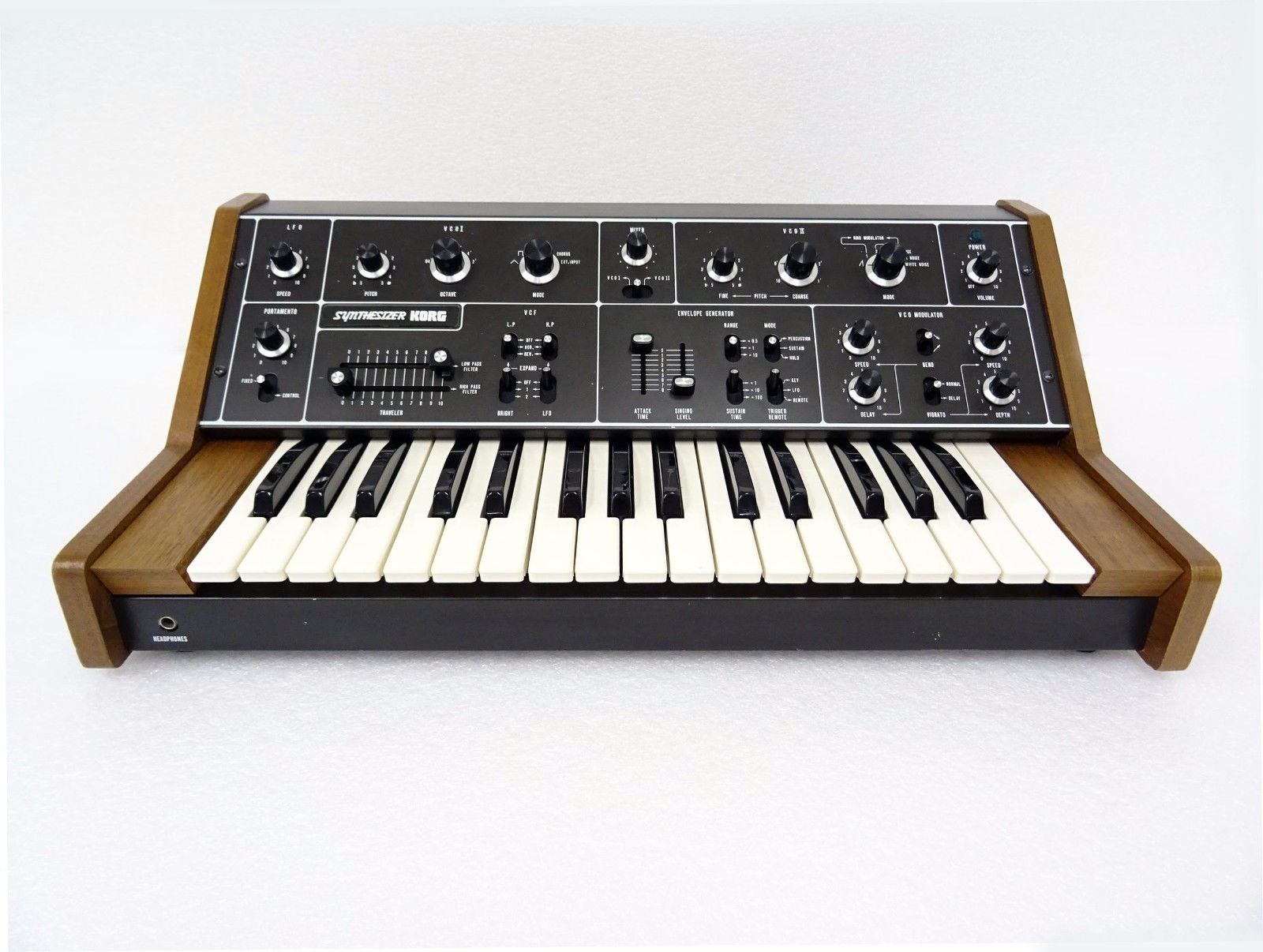

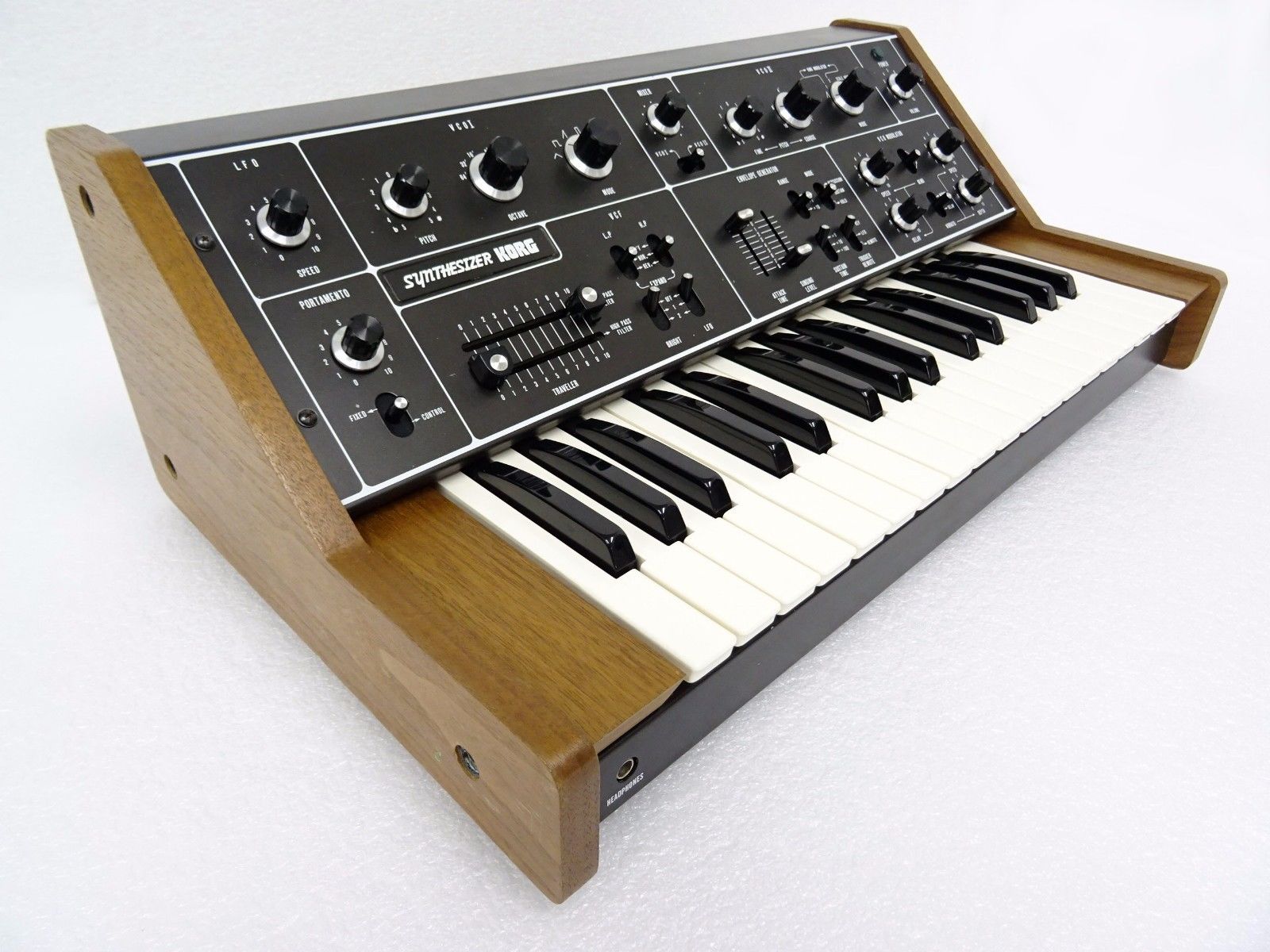

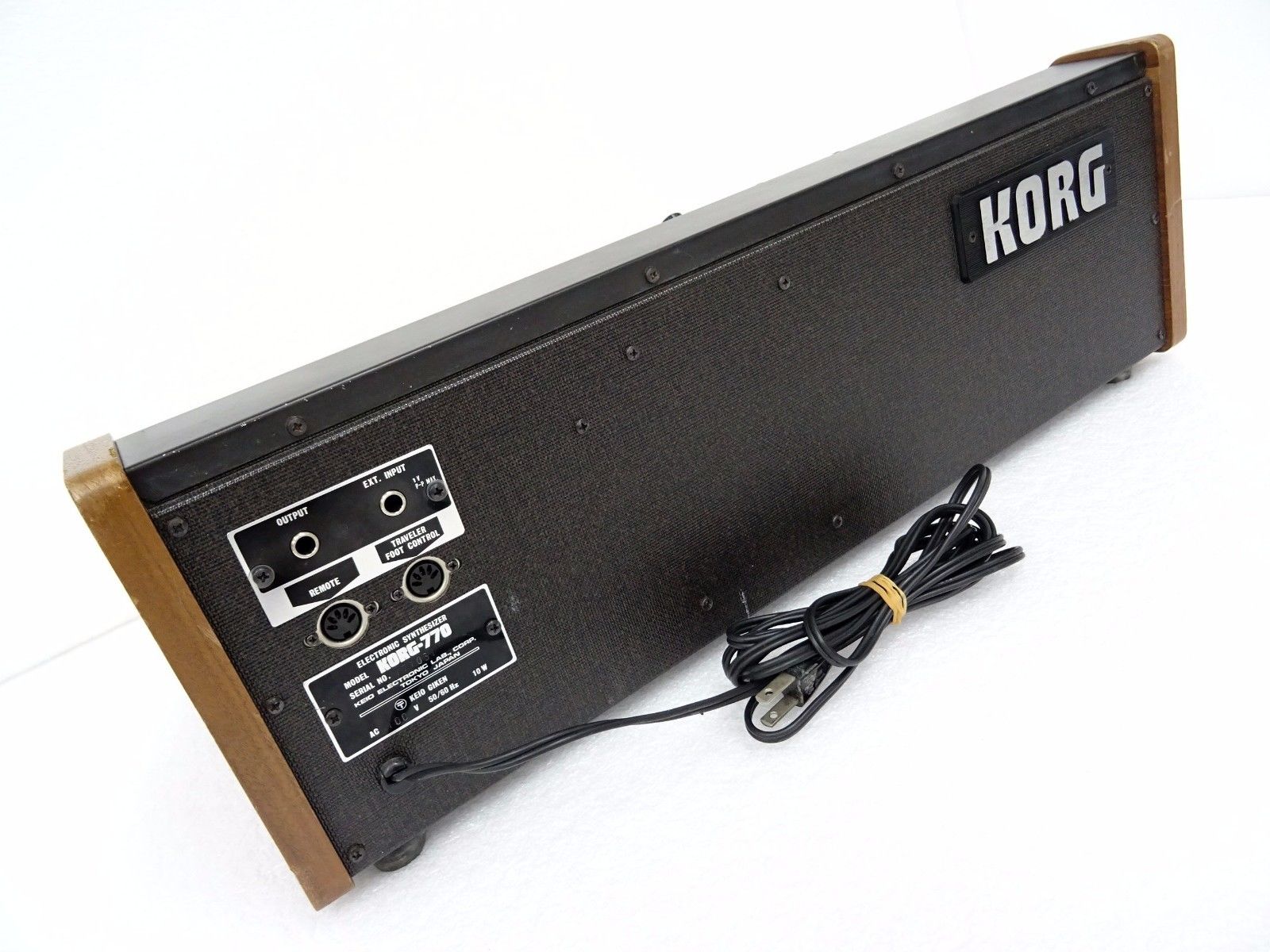

Description | An ancient synthesizer from Korg. Aside from being very old, there isn't much else to say about the 770. It was released in 1976, is monophonic, very limited in design, flexibility and sonic possibility. It can make some weird noises largely due to its retro-cool ring modulator. You can also run external sounds through it. Bass, string and lead sounds are ok. It's got a fast envelope, auto bend, and LFO re-trigger too. An ole' classic that's fun to play with and useful if you're in the mood for buzzy analog sounds. |
| Brand | Korg |
| Model | 770 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 2 |
| LFO | 2 (LFO2 is called VCO Vibrato) |
| Noise | Y |
| Engine Detailed | VCO-1: Scale (64', 32', 16', 8', 4', 2'), Waveform (triangle, square, sawtooth, pulse, PWM, External Signal). VCO-2: Coarse Tuning (16'-1'), Fine Tuning, Mode Selector (sawtooth, Ring 1, 2, Scale Noise, Pink Noise, White Noise). |
| Filter (VCF) | (2) VCF's: High Pass and Low Pass (Traveler). |
| Envelope (VCA) | VCA + ENVELOPE GENERATOR: Attack Time, Singing Level, Range Selector, Sustain Selector, Envelope Mode Selector, Trigger Mode Selector |
| Controllers | VCF foot pedal; CV/Gate mods can be added; Mouth/Breath Controller |
| Keys | 32 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
|
Produced: | 1976 - 1976 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
