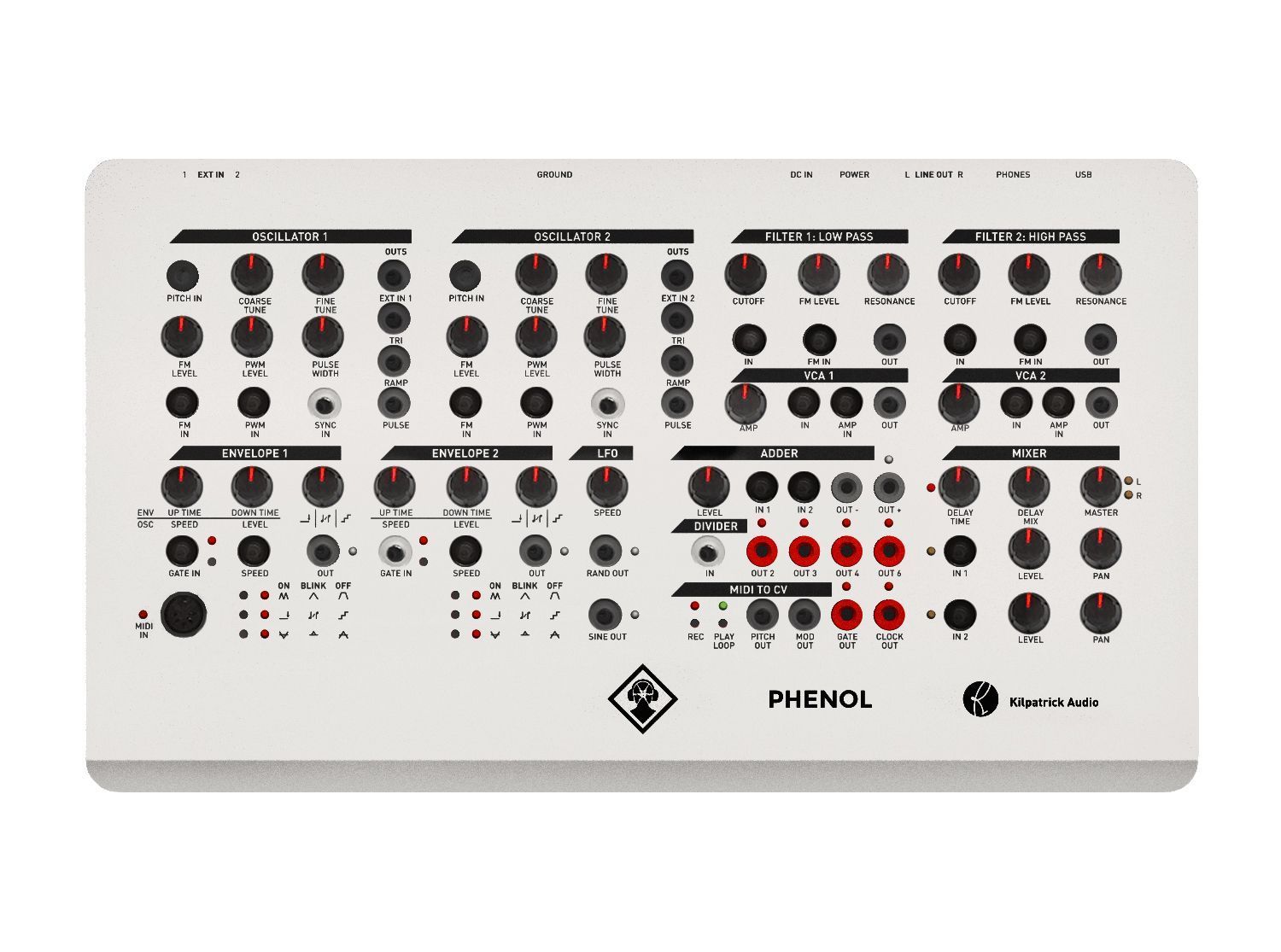

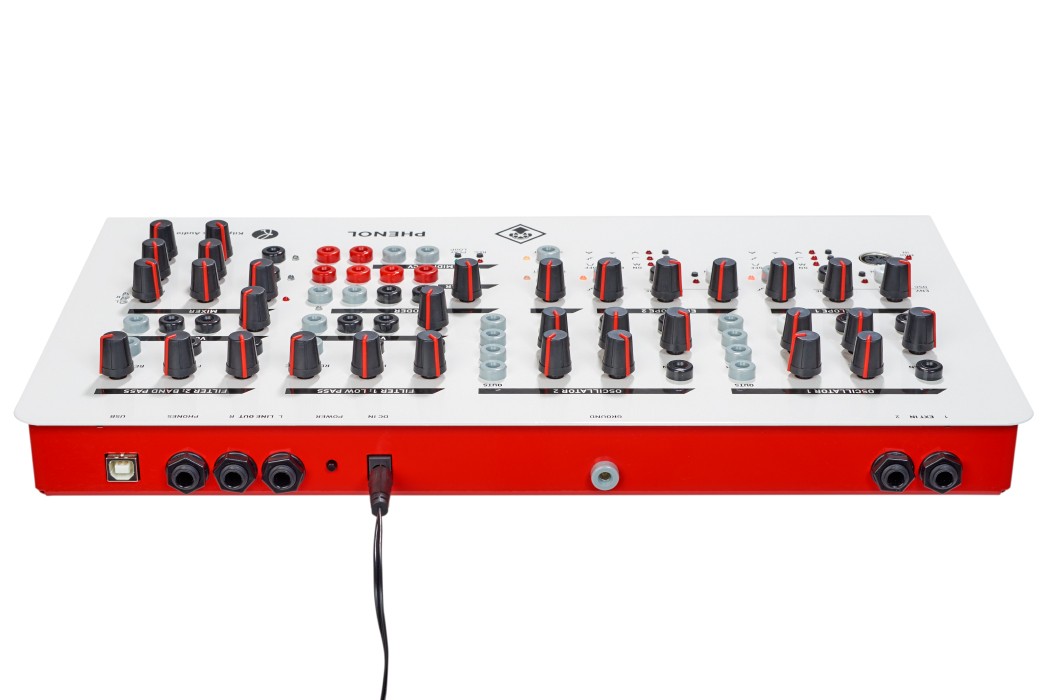

Kilpatrick Audio | PHENOL

Description

PHENOL is a new type of electronic instrument from Kilpatrick Audio. Inspired by modular synthesizers, PHENOL offers the creative potential, sound and hands-on experience of a modular synth, in a sleek, compact and affordable package. And best of all, PHENOL is compatible with modular systems because it uses the same voltages and banana connectors as the Kilpatrick Format and similar modular synthesizers.

Modular synthesis was the root inspiration for the PHENOL, and a cost and size that is a fraction of the original modular systems as well as modular systems that are available today, PHENOL offers the creative potential, sound and hands-on experience of a modular synth in a sleek, compact and affordable package. And if exposure to PHENOL inspires something in you to go head first into modular synths, your initial investment can be incorporated into your more ambitious modular systems. PHENOL is compatible with modular systems because it uses the same voltages and banana connectors as the Kilpatrick Format and similar modular synthesizers.

Whether you already love modular synthesizers and want a smaller instrument for portability, or whether you've heard about modular synths and want to get your feet wet, PHENOL offers an amazing instrument at a great price.
BrandKilpatrick Audio
ModelPHENOL
DeviceSynth
TypeDesktop
Engine TypeAnalog
EngineModular (Semi)
Voices (max)1
Oscillators2
LFO1 Sine
Engine Detailed2 VCO, Pulse, Triangle
Filter (VCF)2 Band Pass, Low Pass
Envelope (VCA)2 ADSR
FXDigital delay 330 ms
Keys0
Key typeN/A
VelocityN/A
AftertouchN/A
AudioStereo Out, 2 in
MidiI, USB
CV-gateCV/Gate I-O
Produced:2015
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
