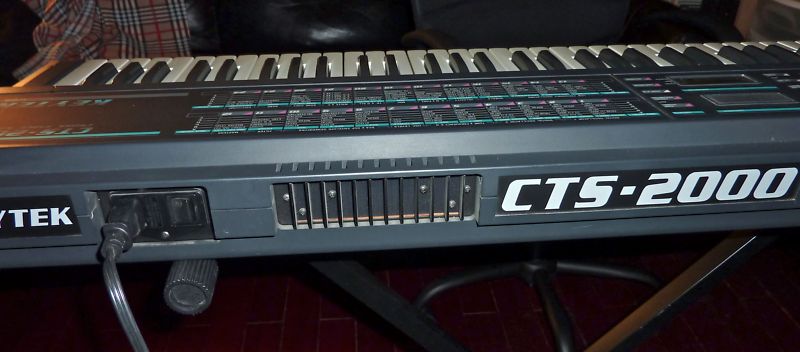

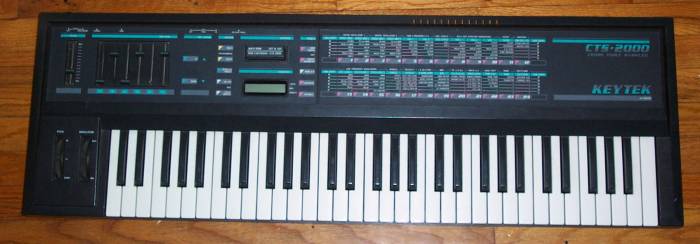

Keytek | CTS-2000
|Originally made by Italian synth maker Siel. The Keytek CTS 2000 is an analog synthesizer with analog resonant filters. It has 2 oscillators per voice with 8 voices and analogue CEM 3389 filters. The same as in the Waldorf Microwave I.
Additionally it features Cross Table Synthesis which is described as wavetable synthesis with 333 digitally sampled waveforms. You can control up to 6 wavetables per voice with complete analog processing for each voice including 24db per octave filter. 2 envelope generators with up to 5 parameters and 3 LFO's. 6 data entry slider for real time editing of all parameters.
|LFO||3 Saw Up, Square, Triangle|
|Engine Detailed||2 DCO and 6 WT per voice|
|Filter (VCF)||1 24dB Slope (4-pole), Resonance|
|Envelope (VCA)||2 ADSR|
|Audio||Stereo outputs plus 6 individual outs|
|Produced:||1987 - 1988|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
