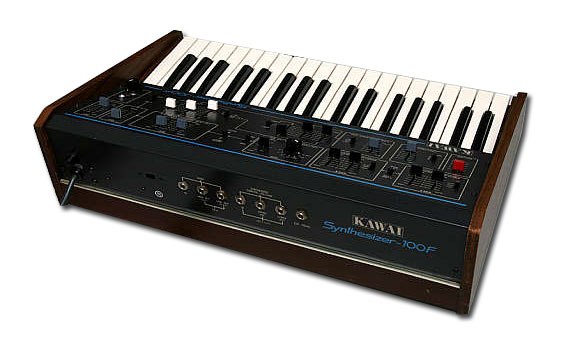

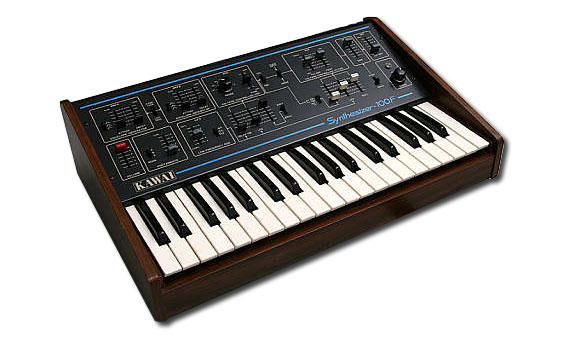

Kawai | Synthesizer 100F

Description

Although Kawai began manufacturing synthesizers under the company name of Teisco, they soon took over as Kawai which resulted in synths like the S100F above which can be found labeled either Teisco or Kawai. The Synthesizer 100F is a very good and classic single-vco monophonic analog synth. It has a small but usable 37 note keyboard. Sawtooth, square and noise waveforms and external sounds can be run through the synth's filters and envelopes and mixed with the oscillator.

Although there is only one oscillator, there's plenty of modulation ability to really liven up the sound. There's an LFO which can modulate the VCO, VCF and VCA. The VCF resonant filter is good and can be modulated by the LFO, Envelope 1, the external input or even the VCO! There's also a VCA section with Attack, Decay, Sustain and Release controls and finally there's a Hi-Pass filter. There is also a portamento effect for that final crucial analog synth effect! A typical analog synth with just about all the features and functions you'd need. It's got the classic wood side panels and a front panel layout that leads to very straight forward programming resulting in good analog bass, lead and synth sounds.

BrandKawai
ModelSynthesizer 100F
DeviceSynth
TypeKeys
Engine TypeAnalog
EngineVCO
Voices (max)1
Oscillators1
LFOSaw, Triangle, square waveforms with adjustable Rate
NoiseY
Engine Detailed1 VCO: saw, square, noise, external audio in (2', 4', 8', 16', 32', 64' and "low" pitches)
Filter (VCF)Low Pass resonant filter and High Pass non-resonant filter
Envelope (VCA)Simple AD, ADS or ADR envelope modes
Keys37
Key typeKeys
VelocityNo
AftertouchNo
CV-gateCV/GATE
Produced:1977 - 1977
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
