Description | |

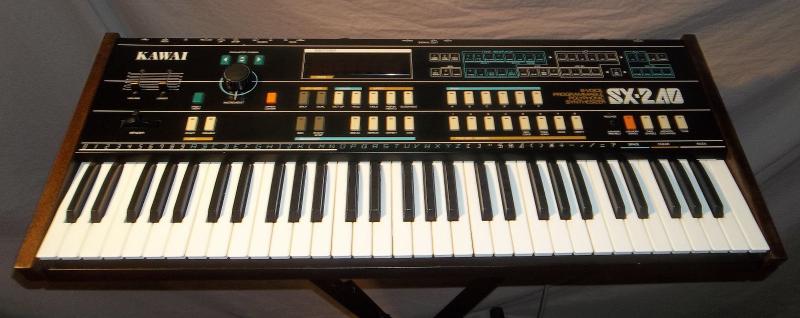

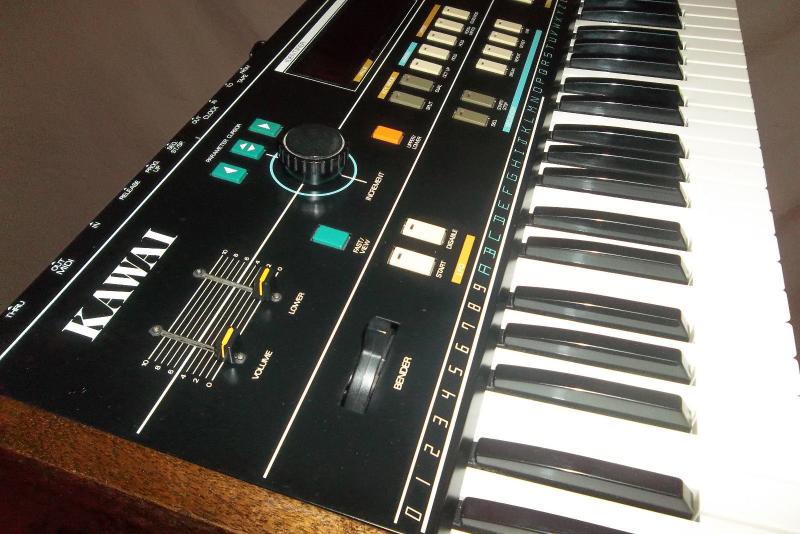

| Brand | Kawai |
| Model | SX-240 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 8 |
| Multitimbral | 2 |
| Oscillators | 2 |
| Sub | 1 |
| LFO | 1 LFO with 3 waveforms: saw, square and tri. Speed, Delay, Reverse and Depth controls. Can modulate the DCOs, VCA, or VCF. |
| Engine Detailed | 2 DCOs and 1 Sub-oscillator. Waveforms - Saw, Sine and Pulse with PW and PWM |
| Filter (VCF) | 24 dB/oct four-pole Lowpass with resonance, cutoff, envelope amount and dedicated ADSR envelope generator |
| Envelope (VCA) | 1 VCA with HPF and ADSR envelope |
| FX | Chorus, Hold, Portamento and Glissando |
| Memory | 48 Tone memories. Sequencer has 8 memories. |
| Recording | 1,500 note max |
| Keys | 61 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
|
Produced: | 1984 - 1984 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
