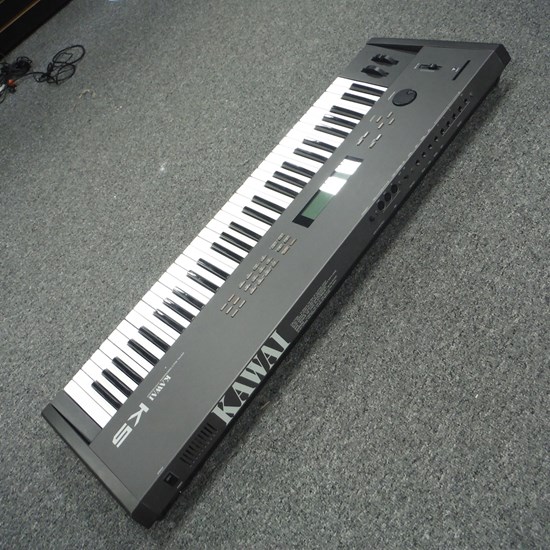

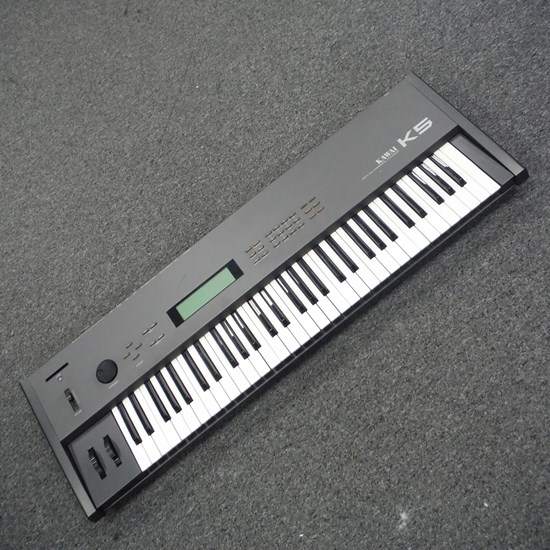

Kawai | K5
The K5 is a digital synthesizer that employs additive synthesis harmonic-building as its method of sound creation. Basically, you can vary up to 126 harmonic levels generated by a sine wave via a bar-graph type graphic display to create, shape and change your sound. De-tuning can also be used to thicken or augment sounds too. In addition, each harmonic has an independent choice of four 6-stage envelopes for further tweaking and shaping. The K5 is also 15-part multi-timbral. Sounds can be split, layered, overlapped and de-tuned for creating thicker sounds or ensembles of instruments and sounds. It has 48 internal patches for memory storage as well as a 48 patch external memory card. There are also 48 patches for the multi-mode settings as well.
The K5 is very digital in its synthesis approach and its overall sound quality. However it has some surprisingly analog-like parameters. Its filter is a Dynamic Digital Filter that has familiar slope, cutoff, envelope amount, keyboard tracking and independent 6-stage envelope controls. The Digital Dynamic Amplifier is set up like a 6-stage envelope for overall sound shaping. The LFO has about six waveform shapes, speed, delay and a new Trend setting which is related to the delay parameter of the LFO. But programming Multi-Mode sounds is a bit more modern in its approach to synthesis than analogs and requires a bit of planning and experimenting.
It should be noted that the user interface makes it particularly difficult to program the K5 well. It's especially hard to tell the envelope-to-harmonic routings, and the various bits of nomenclature used by Kawai to indicate what does what can be a bit misleading. Nonetheless, the K5 is a very powerful instrument for creating digital sounds unlike any other. It works great in any MIDI studio or live situation due mostly in part to its multitimbral abilities, unique sounds and its approach to synthesis.
|LFO||6 waveforms, speed, delay, trend|
|Engine Detailed||Digital Harmonic Generator (DHG)|
|Filter (VCF)||Digital Dynamic Filter (DDF) with cutoff, slope, envelope amount, keyboard, velocity, aftertouch, independent 6-stage envelope; Digital Formant Filter (DFT) 11-band graphic eq|
|Envelope (VCA)||Dynamic Digital Amplifier (DDA) with independent 6-stage envelopes|
|Memory||48 patches internal, 48 patches external memory card, 48 multi-mode memories|
|Produced:||1987 - 1987|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
