JoMoX | XBase 888
|We are proud to introduce the JoMoX XBASE 888, our newest analog drum machine. It combines the ultimate vintage sound with a modern, intuitive interface for both modern studio and live requirements. It combines the ultimate vintage sound with a modern, intuitive interface for both modern studio and live requirements.
There are several notable new features on the XBASE 888:
The kick drum and the tom toms now each have an adjustable pitch envelope and sound even phatter than before! The analog noise parameter of the snare and hi hat can be “metal-ized” to create sounds extremely similar to vintage drum machines and is fully adjustable!
And, because it has no X-Filter, the XBASE 888 is more affordable than the 999. But it still has an unbeatable sound, this little beauty!
· 9 Instruments
Bass Drum, Snare Drum, Lo Tom, Hi Tom, Hi Hat, Clap, Rim, Crash and Ride. All instruments are polyphonically playable and have individual outs. The bass drum, snare drum, lo tom and high tom are true analog circuits, and for the remainder of the sounds, the XBASE 888 uses short 8-bit samples, each routed through an analog envelope. The sample flash ROM contains 31 samples per instrument, so there's a total of 186 samples (The Hi Hat section contains 2 separate samples for Closed and Open HH).
· Real analog sound production
The BD, SD, LT and HT use true analog circuits with full digital control, which allows the storage of presets and full midi control of all parameters. To keep the analog circuitry as pristine as possible, all D/A converters are specially designed for and integrated into the circuits with proven XBASE/AirBase technology.
· 16 knobs
Sound editing is made by continuous rotary encoders for every analog parameter, allowing you to edit the sounds without jumps or awkward turning situations. Close to each knob there is a 3-color LED indicating which parameters are editable for the selected instrument.
· Improved kick drum
The most famous sound of the original XBase-09 was clearly the kick drum. Now, on the XBASE 888, that famed kick drum circuit adds an adjustable pitch envelope. With this added feature, the decay time constant is changed, and you can create 808-like slow pitch decays. Additionally, the new compression parameter is useful to morph between a 909-style ultra compressed envelope or an 808-ish exponential curve.
· Analog tom toms
The XBASE 888 also offers the extremely phat, punchy and widely editable analog tom toms as originally included on the AirBase99/JaZBase03/XBASE 999. However, now they each employ an adjustable pitch envelope.
· Internal step sequencer
The XBASE 888 also features the renowned JoMoX step sequencer, with some notable improvements: all patterns are A/B patterns, and you can now choose between having two alternating 16 step patterns or one 32 step pattern. The sequencer utilizes 3-color LEDs to indicate the individual step edit modes even better and more intuitively. The micro shuffle can now be edited for each instrument individually. Bank select now has its own switch. 4 banks with each 16 A/B patterns are now available, resulting in 128 actual 16 step patterns.
· Stereo mix with pan control

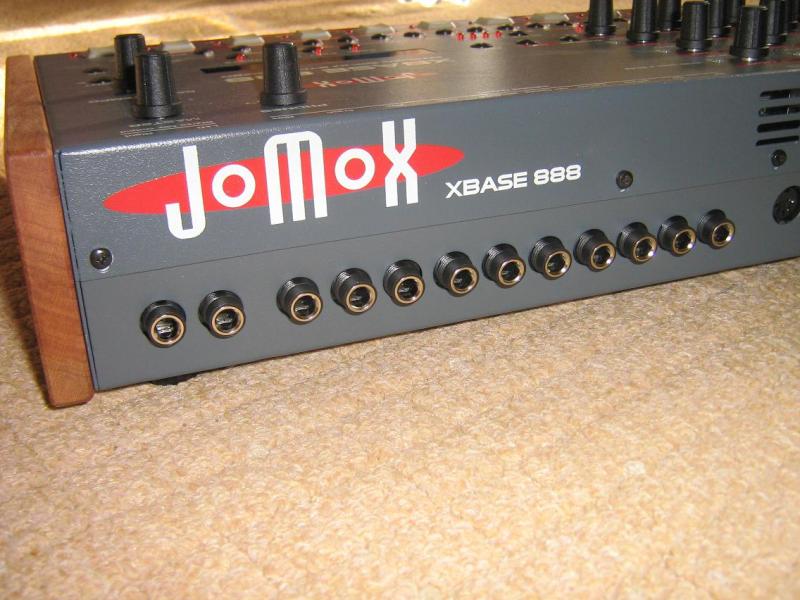

All instruments except for the kick drum can be panned in the stereo bus. If a cable is inserted into any individual output, the corresponding sound is removed from the stereo bus.
· External midi tracks
As on the XBASE 999, there are 4 tracks with which to control external devices by programmable midi notes, and the knobs on the XBASE can also send midi cc messages to your external devices.
· 2 LFOs
Of course the XBASE 888 retains two phat LFOs which can be clocked to tempo or run freely and which can be routed to any destination.
· Hi Hat filter
The Hi Hat section contains a great sounding analog band pass filter with independent lowpass, highpass and resonance controls. In addition to the 8-bit HH samples, analog noise can be the sound source as well.
New: instead of pure white noise you can now create a wide variety of “metal-ized” noise signals, tweakable by 2 parameters, which can be the source for the snare or hi hat.
· Large alphanumeric LCD display
For a more convenient and clear operation the XBASE 888 has a big alphanumerical LCD display with 2x24 characters. Kits can be named and the analog step sequencer has a bar display.
· Flash sound ROM
The sound flash memory in the percussion section (HH, Clap, Rim, Crash, Ride), which contains 31 samples per instrument, can be overwritten by the user via midi sample dump in order to create your own samples.
· Sample editor
We provide a free tool that converts your *.wav or *.AIFF samples into the properly formatted XBASE 888 structure and lets you dump your own short samples into the XBASE 888.
· 19" Rack mounting angles are available as accessories, and you can find them in the JoMoX Webshop.
|Engine||DCO, PCM, sample|
|LFO||2 Sample & Hold, Saw Up, Saw Down, Square, Triangle|
|Engine Detailed||1, Pulse, Pulse Variable, ROM, Sample|
|Filter (VCF)||1 12dB Slope (2-pole)|
|Envelope (VCA)||1 AD|
|Sequencer||128 16 step patterns|
|Audio||Stereo out + 9 individual outs and a stereo input.|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
