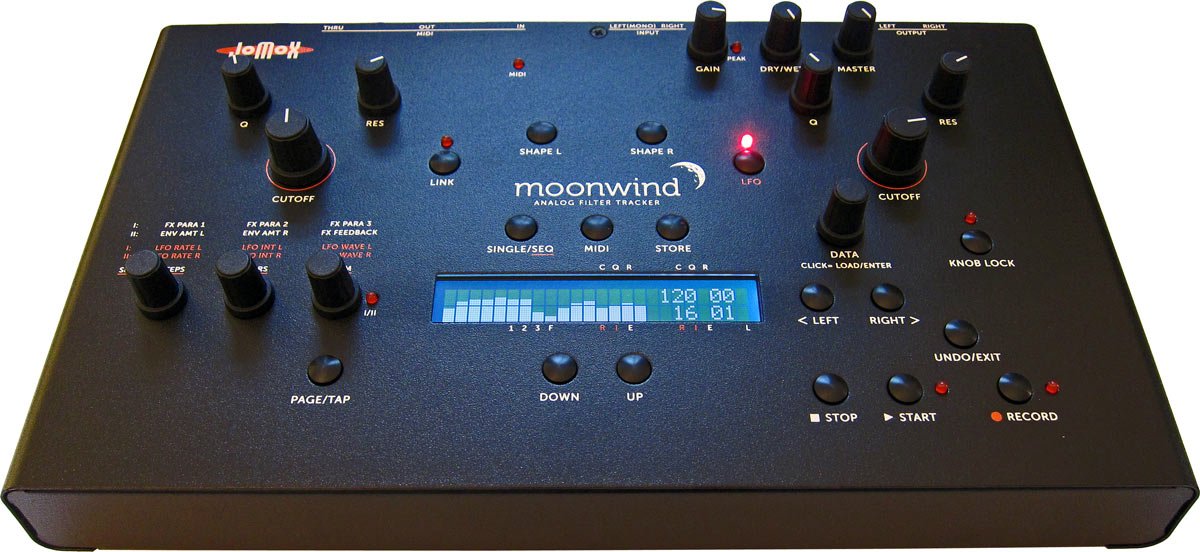

Description | The Moonwind Analog Filter Tracker is a true analog stereo filter with built-in step sequencer, a fantastic sounding digital FX chip, two LFOs and envelope modulation.
Everything is storable and controllable via Midi.
You can play the Moonwind like a synth by Midi notes and play melodies on the filters if they whistle in self-resonant mode.
The sequencer is able to control cutoff, Q, and, resonance per step and filter. This makes the Moonwind an easy-to-use and awesome analog sounding engine that is playable like a synth and can be seamlessly integrated into a DAW recording system. |
| Brand | JoMoX |
| Model | Moonwind Analog Filter Tracker |
| Device | Misc |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| LFO | 2 Saw Up, Saw Down, Sine, Triangle |
| Engine Detailed | Filter in self-resonant mode as synth |
| Filter (VCF) | 2 Band Pass, High Pass, Low Pass, Notch |
| Envelope (VCA) | Tigger |
| FX | 15 algorithms |
| Sequencer | 64 steps per pattern, 16 steps per bar |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Stereo I-O |
| Midi | I-O-T |
|
Produced: | 2012 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
