JoMoX | JaZBase 03
|The JaZBase03 provides a totally new set of percussion sounds for the musician. As on the AirBase99, the percussion section contains short 8-bit samples that can be post-processed with an analog envelope and partly with an analog filter. It contains an advanced mixture of analog kick, snare and tom toms with acoustic shakers, claves, rims, hi hats and other really cool samples.
Furthermore, the JaZBase03 provides adjustable start points for the samples, which once again, increases the musical expression capabilities. This differs to the AiRBase99 and can be very useful for the complex samples of the JaZBase03 sample set. The focus is on acoustic samples, which fit in excellently in ethno and world music but also complements and enhances styles as varied as ambient to triphop or dance. Basically the JaZbase03 is a great tool for all electronic and crossover styles of music in general.

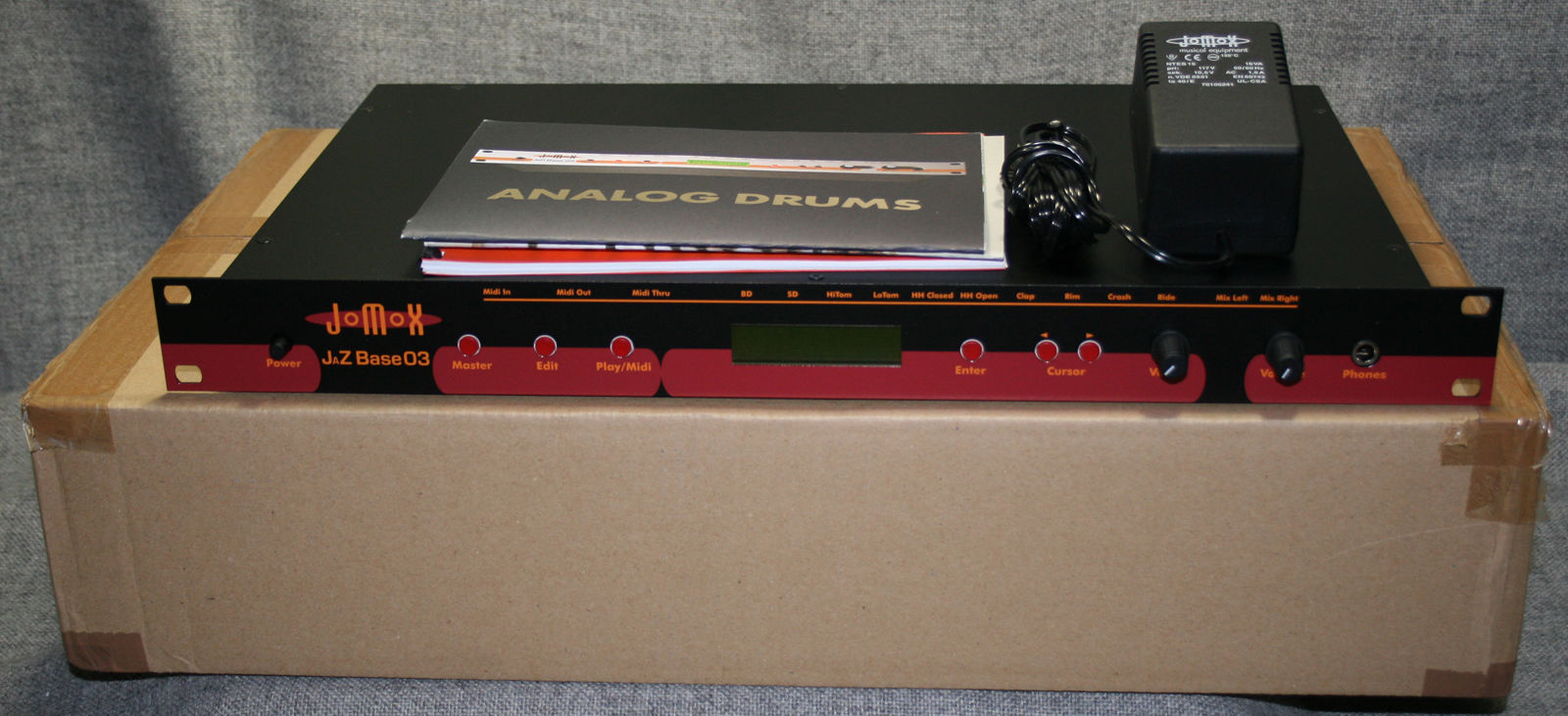

Due to the variation of styles, the JaZBase03 still contains the good old 808 hi hat (909 excluded). The JaZBase03 is a 19" 1RU midi expander with an lcd display, data wheel and a few edit buttons, but with full sound performance at a comparably low price. All parameters on the JaZBase03 are storeable and controllable by midi. Instead of implementing a sophisticated and expensive knob user interface on this unit, all parameters are externally controllable by midi or accessable through a simple internal serial menu guide.
There are JoMoX mixer maps or environments available for the most commonly-used sequencer systems available in their download area.
* Bass Drum
All bass drum parameter and the sound production are 100% identical to the XBase09 and the AirBase99.
* Snare Drum
The snare drum parameter and the sound production are also 100% identical to the Xbase09/AirBase99.
* Tom Toms
There are 2 analog tom toms which offer a wide tuning range.
* Hi Hats
The hi hat section contains an analog filter and a sophisticated analog envelope to post-process the 8-bit samples.
The sounds clap, rim shot, crash and ride are fully polyphonic, meaning they can be all be played back all at the same time.
The JaZBase03 contains 24 different acoustic samples plus noise and filtered noise with adjustable center frequency of the analog filter.
All percussion/cymbal envelopes are true analog! All hi hats, cymbals and percussions can be played back in reverse.
Furthermore, the JaZBase03 provides adjustable start points for the samples, which increases the musical expression capabilities even more. This is different to the AirBase99 and is very useful for the complex samples of the JaZBase03 sample set.

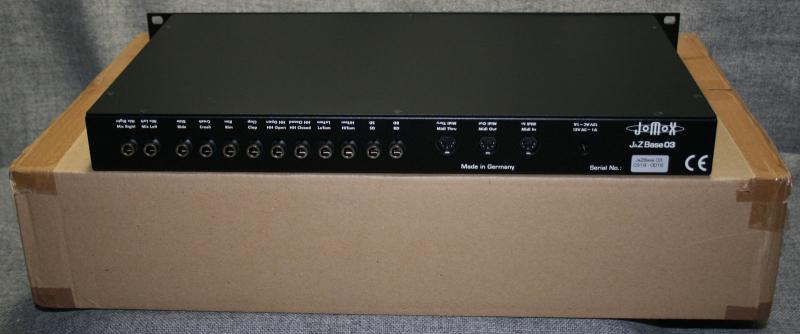

Each sound generator features its own individual output, 10 in total. They are: Bass Drum, Snare Drum, Lo Tom, Hi Tom, Open Hi Hat, Closed Hi Hat, Clap, Rim Shot, Crash, Ride.
Additionally, the hi hat section contains a resonating 2 pole HP/LP filter, where parameters can be changed separately. With this filter you can process an analog noise signal or the raw sample of the hi hat.
The JaZBase03 has 2 LFOs that can be routed to different parameters of the various instruments. The LFO speed can be edited in BPM, midi clock or a rate parameter.
* Sound Storage
The JaZBase03 internal memory can hold 256 RAM- and 100 preprogrammed ROM-sounds for each of the 9 instruments plus the LFO-settings. Makes a total amount of 3204 different instrument settings. These instrument sounds can be arranged in 1024 different drumkits, 256 of them in the ROM.
|LFO||2 Sample & Hold, Saw Up, Saw Down, Square, Triangle|
|Engine Detailed||PCM Samples|
|Filter (VCF)||1 High Pass, Low Pass, Resonance|
|Envelope (VCA)||2 ADS|
|Memory||256 RAM and 100 ROM sounds for each of the 9 instruments (O/C HH is seen as 1) plus the LFO-settings. Total of 3204 different instrument settings. Instrument sounds can be arranged in 1024 different drumkits, 256 of them in the ROM.|
|Drums||Bass Drum, Snare Drum, Lo Tom, Hi Tom, Open Hi Hat, Closed Hi Hat, Clap, Rim Shot, Crash, Ride base sounds in ROM|
|Audio||Stereo Out and 10 individual outs.|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
