Jen Electronics | SX-1000

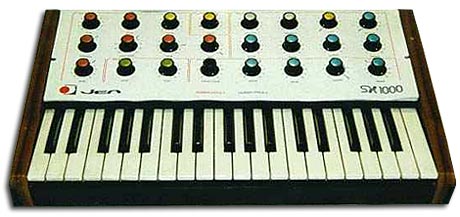

The Synthetone SX-1000 is an old Italian basic mono-synth. It has a single analog DCO with three waveforms: sawtooth, square, and PWM (Pulse Width Modulation). There is an analog filter (12dB/octave) with cutoff, resonance, and LFO modulation. There is also a simple ADSR envelope for shaping your sounds. In addition there are also white/pink noise generators a glide effect and a vibrato effect. It's known for fairly stable tuning too. Probably its best sounds are the lead ones, the basses aren't that deep but it sure can scream!
What it doesn't have is MIDI, CV/Gate or any other form of control. MIDI retrofits can take care of this however. Unfortunately there is no patch memory, and there is no way around this limitation. Its knobs are boldly colored and well layed-out for easy hands-on access; but you'll need a Polaroid camera if you want to store your patch settings! Also lacking are an arpeggiator, sequencer, pitch/mod wheels, and effects. Nevertheless, this Italian vintage synth is a very cheap entry-level analog synth that has some unique sounds and characteristics worth checking out if you find one.
|Engine Detailed||One DCO (sawtooth, square, pulse-width modulation); 4-octave range (32', 16', 8', 4'); white and pink noise generators|
|Filter (VCF)||1 Low-pass filter, 12dB/octave, with ADSR|
|Envelope (VCA)||1 ADSR|
|Extra info||Kenton Midi Retrofits available|
|Produced:||1978 - 1982|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
