Jörgensen Electronics | Tuttivox

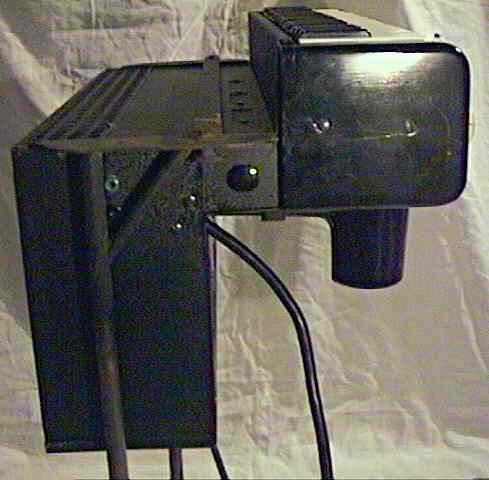

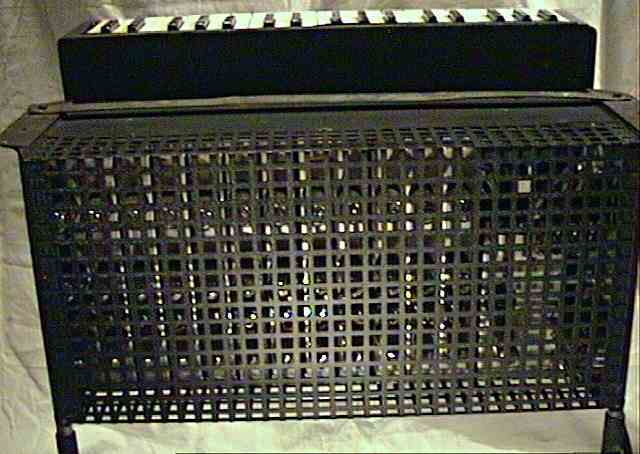

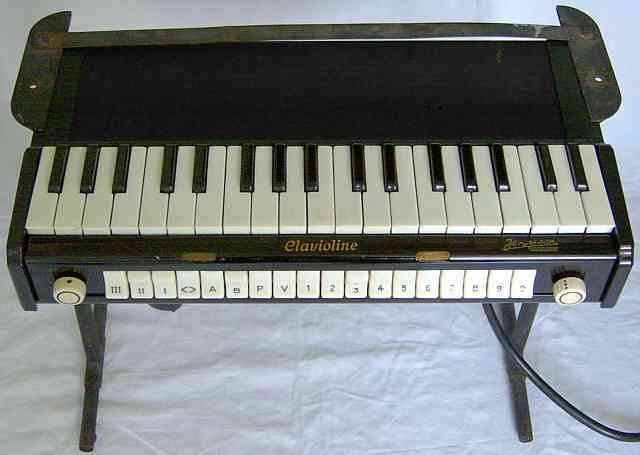

|The Tuttivox was essentially a polyphonic German licensed version of Raymond Martin’s Clavioline, manufactured by the Danish company Jörgensen Electronics, in Düsseldorf, Germany . This updated Clavioline was created by the pioneering German engineer, Harald Bode. The Tuttivox was a small portable one keyboard, amplifier and speaker combination buitl into a wooden carrying case. the keyboard was usually played attached to a piano and intended for use with commercial dance and popular music bands of the day. the instrument created it’s sound using fourtyE- series valves; thirty six as audio oscillators with filtering provided by coils and capacitors. There are 3 foot positions available and 36 filter settings, which could be combined to enable a variety of tone colors. the Tuttivox remained in production until the 1960s.
Bode, in collaboration with French instrument maker René Seybold, later developed an extended version of the Clavioline with an extra two octaves on the keyboard called the ‘Concert Clavioline’ and a combination of the Concert Clavioline and the Tuttivox was marketed as the ‘Combichord’ “The smallest church organ in the world”.
|Engine Detailed||1 VCO Square, Sub Oscillator|
|Envelope (VCA)||1 Attack|
|Produced:||1946 - 1961|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
