Hammond | 102200 Preset Synth

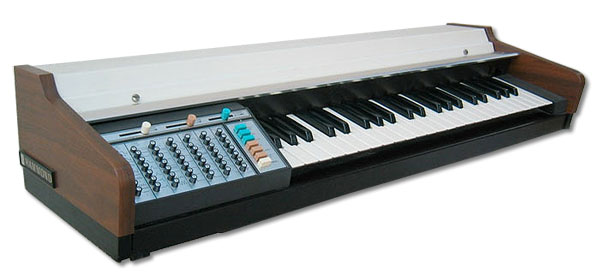

Around 1974/75 Hammond Japan released the 102200 Preset Synth - a single oscillator keyboard that was intended to complement (or sit on top of) your Hammond Organ or Piano. It is in the same league as the Pro-Soloist from Arp, the Satellite from Moog and the SH-1000 from Roland.
There are a desultory six presets. These are French Horn, Tuba, Violin, Sax, Clarinet and Solar Echo. The two things that make this synth very cool indeed are its rarity (around 200 were made and most of them were probably junked years ago) and the patch matrix that allows even a simple organist to get some pretty synth-like sounds by selecting buttons alongside a graphic of what the button does to the sound.

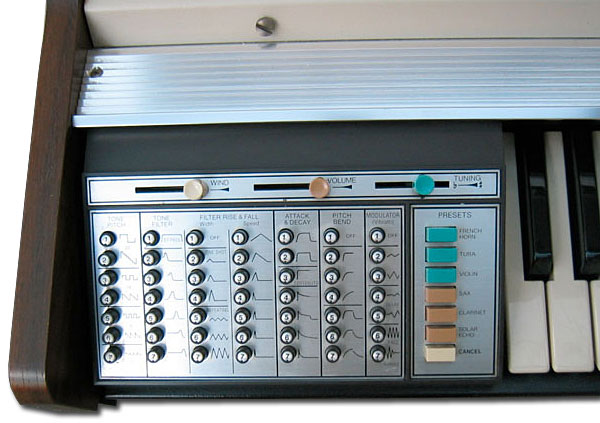

There probably is divide-down technology in there somewhere as the manual suggests multiple selection of octaves. A square and a triangle wave are available at 32',16', 8' and a saw wave only at 4'. There are over 300 possibilities using the matrix which is divided into: Tone Pitch, Tone Filter, Filter Rise and Fall, Attack and Decay, Pitch Bend, and Modulation. There's a filter modulatable noise source too.
|Model||102200 Preset Synth|
|Engine Detailed||1 VCO|
|Memory||Presets: French Horn, Tuba, Sax, Violin, Clarinet, Solar Echo. No User Memory|
|Produced:||1974 - 1975|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
