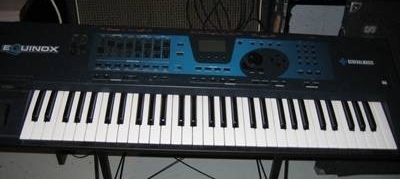

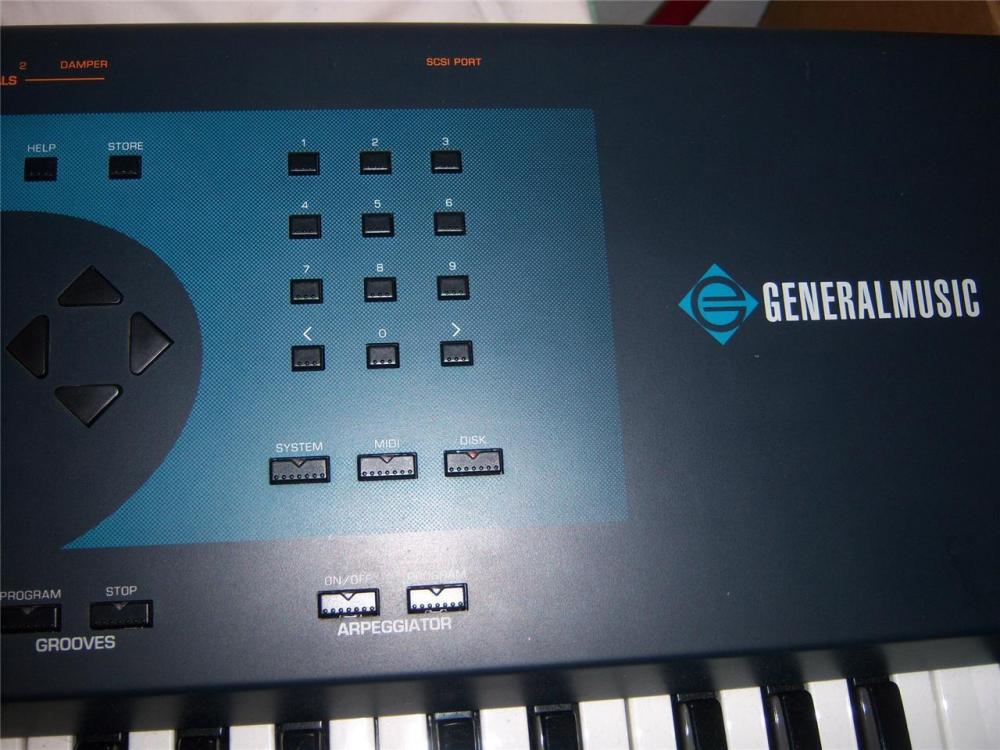

Generalmusic (GEM) | Equinox


The Equinox is a full featured music workstation with 16 MB of waveform ram with a powerful editable synth engine, excellent resonant filters, a 250,000 note sequencer, ability to load samples, groove library, and, a drawbar organ. The instrument also has four effects blocks.

The Equinox has 76 keys with Aftertouch, Velocity, Pitch and, Modulation Wheels. It also offers hard drive options, floppy drive with OS updates done with floppy disks. It also has 32 megabytes of SIMM memory and 8 megabytes of battery backed RAM.

Like previous instruments from GeneralMusic the Equinox is made for being a MIDI Master Keyboard with two sets of MIDI ports.
BrandGeneralmusic (GEM)
Engine TypeDigital
EnginePCM, Sample
Voices (max)64
LFO3 Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle
Engine Detailed16 MB Rom waveforms
Sampler16 bit, 44.1 kHz, 8MB RAM, 32 MB SIMM memory
Filter (VCF)2 Band Pass, High Pass, Low Pass, Resonance, Parametric
Envelope (VCA)2 ADSR
FX4 fx blocks
Memory2000 patches, 112 multipatch
Arpeggiator16 Presets
Recording250,000 event sequencer
Key typeKeys
AudioStereo I-O
Midi2x I-O-T
Produced:1998 - 2004
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
