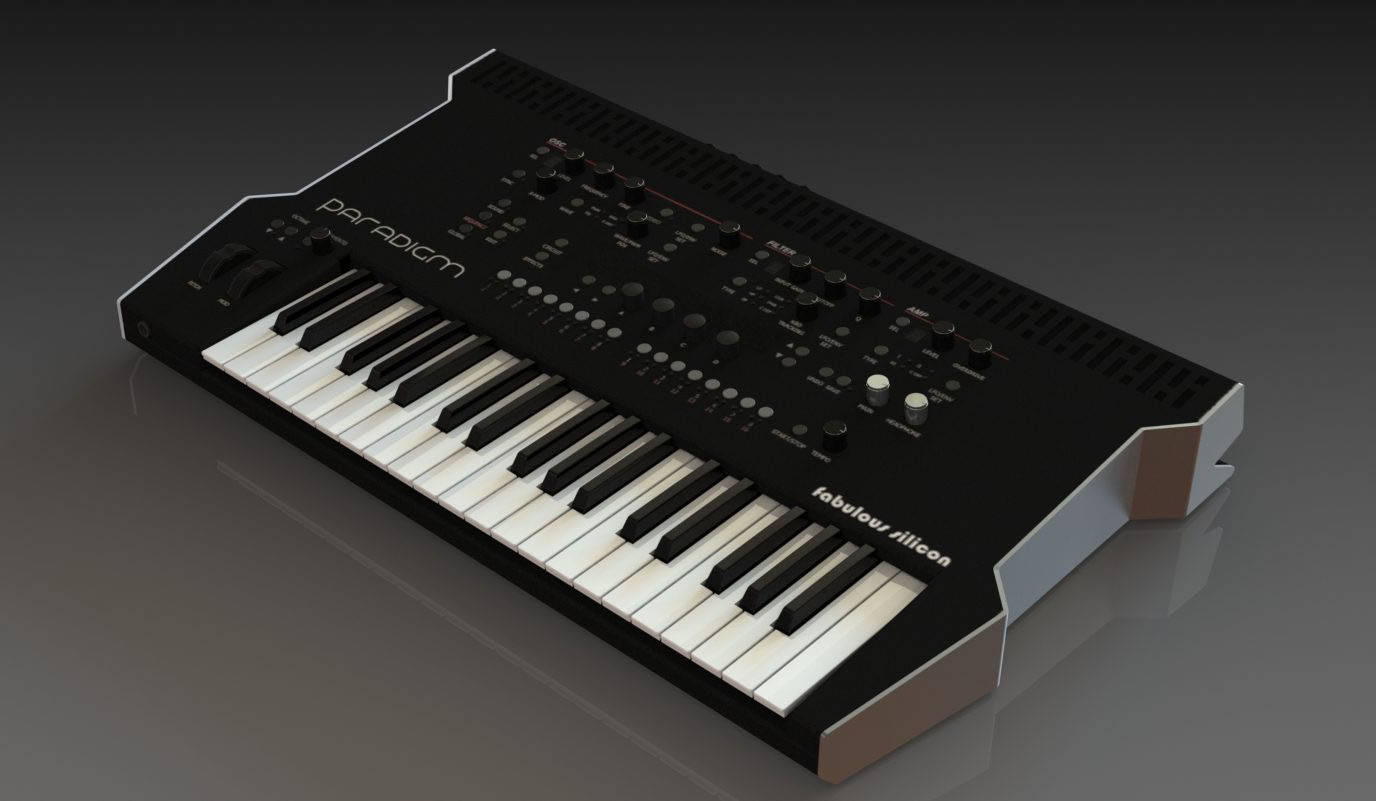

Description | The Fabulous Silicon Paradigm is the product of five years of research and development resulting in the first commercially available synthesizer based on dynamically programmable analog signal processing technology.
Unlike conventional analog synthesizers, Paradigm is uniquely capable of dynamically restructuring its own circuitry in real-time, thereby enabling a degree of flexibility and control that has not been previously possible in the analog domain.
This is made possible by an array of four “Apex” programmable analog chips, the third generation of such devices developed by Anadigm Corporation.
Kickstarter funding campaign to began in Feburary 2017. |
| Brand | Fabulous Silicon |
| Model | Paradigm |
| Device | Synth |
| Type | Keys |
| Engine Type | Hybrid |
| Engine | VCO, WT |
| Voices (max) | 4 |
| Oscillators | 5 |
| Noise | Y |
| Engine Detailed | 3 VCO, Pink Noise, Pulse Variable, Square, Wave Table, White Noise, 2 WT |
| Filter (VCF) | 2 12dB Slope (2-pole), 24dB Slope (4-pole), Band Limit, Band Stop, High Pass, Low Pass |
| FX | Chorus, Phaser, Flanger, Reverb, Delay |
| Keys | 37 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Audio | Stereo I-O, SPDIF I-O |
| Midi | I-O-T |
| CV-gate | 2 CV in, gate/sync |
| Extra info | Bluetooth, USB port for storage and update. |
|
Produced: | 2017 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
