Erica Synths | Polivoks Clone |
|

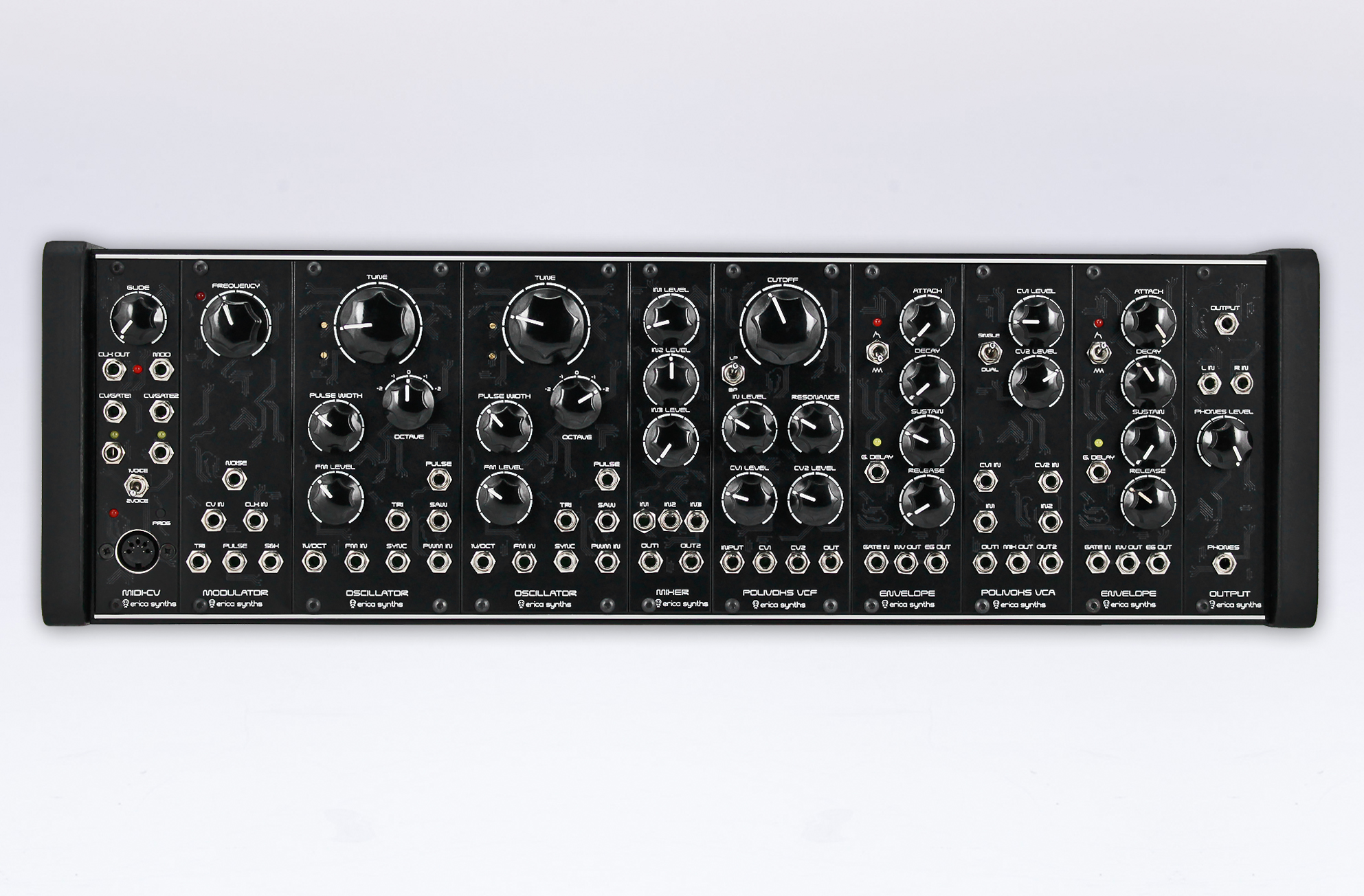

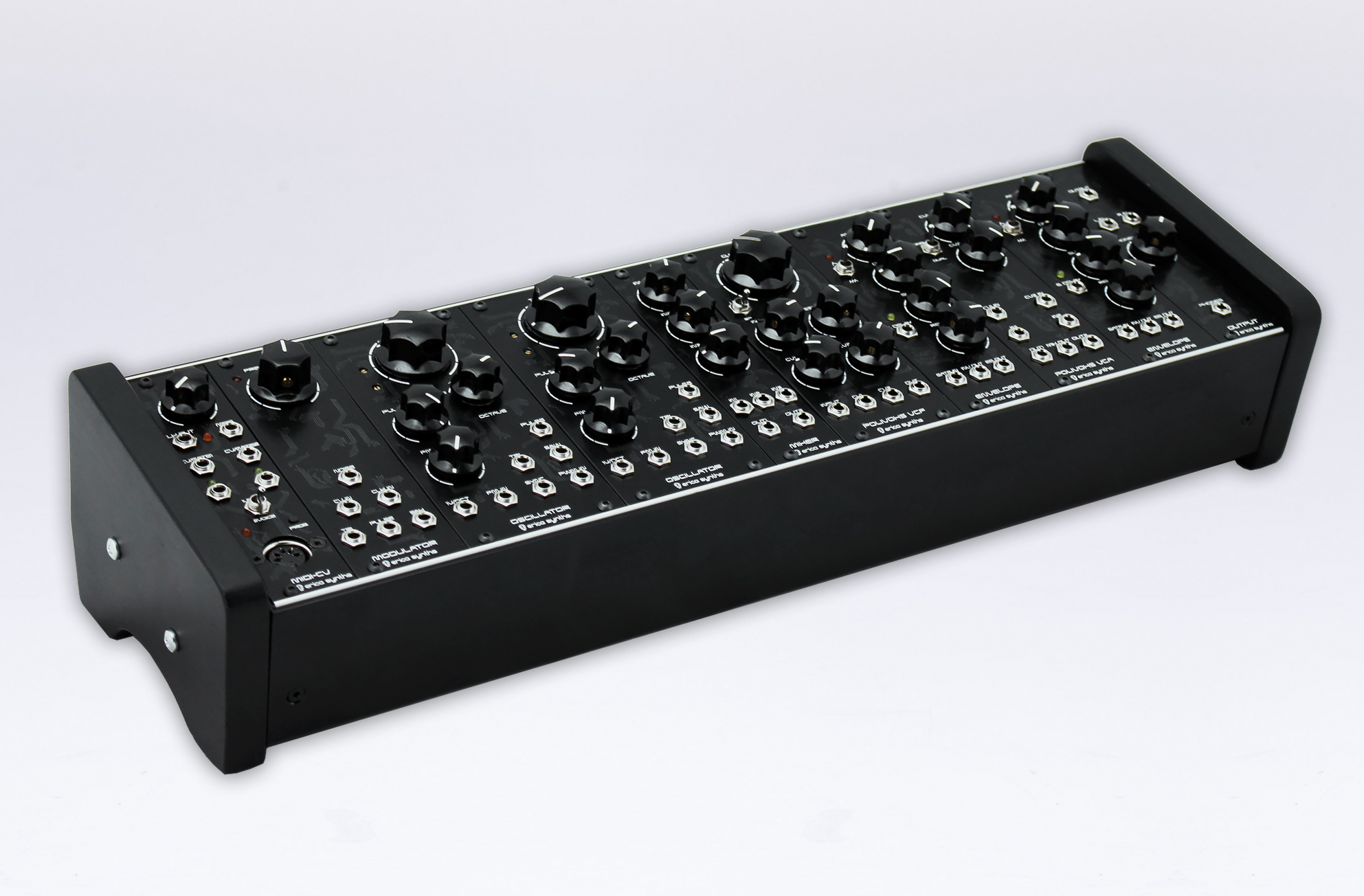

Description | The Erica Synths DIY Module Bundle is a 84HP two- VCO modular system with 53 patch points that go well beyond classical monosynths. This is not just a Polivoks clone. DIY module system includes: + DIY MIDI-CV emulates classical monophonic and duophonic synth behaviour. + DIY Modulator essentially is LFO with simultaneous triangle and square wave outputs, clockable S&H with external CV input and noise source. + DIY Polivoks-inspired VCO with simultaneous triangle, ramp and pulse wave outputs, sync and PWM CV inputs. In VCO’s exponential converter we use the original matched transistor IC that was used in Polivoks. + DIY Mixer is simple, straight-forward audio mixer an essential part of any modular setup. + DIY Polivoks VCF is famous for its’ crazy resonance sweeps and deep, bassy sound, which makes it ideal for acid basslines. A kit comes with two K140UD12 opamps that were used in the original Polivoks. + DIY Polivoks-inspired looping ADSR Envelope generator with gate delay, direct and inverted envelope outputs. + DIY Polivoks-inspired VCA - two differential opamp-based VCAs in series each for LFO and ADSR control over signal amplitude independently; it can be used as dual VCA, as well. Kit comes with two K118UD1 differential opamp ICs. + DIY Output module allows you to interface modular system with external gear via 3,5mm stereo jack and monitor compositions on headphones. To complete the System, we have added: + One row 84HP skiff case + External, universal PSU module + Horizontal wooden side panels |
| Brand | Erica Synths |
| Model | Polivoks Clone |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | Modular |
| Voices (max) | 2 |
| Multitimbral | 2 |
| Oscillators | 2 |
| LFO | 1 Sample & Hold, Square, Triangle, Clocked |
| Noise | Y |
| Engine Detailed | 2 VCO, Pulse, Pulse Variable, Saw Up, Square, Triangle, White Noise |
| Filter (VCF) | 1 24dB Slope (4-pole), Band Pass, Low Pass, Resonance |
| Envelope (VCA) | 2 Delay, Attack, Decay, Sustain, Release, Triggered |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Stereo out |
| Midi | I |
| CV-gate | CV/Gate I-O |
| Produced: | 2017 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
