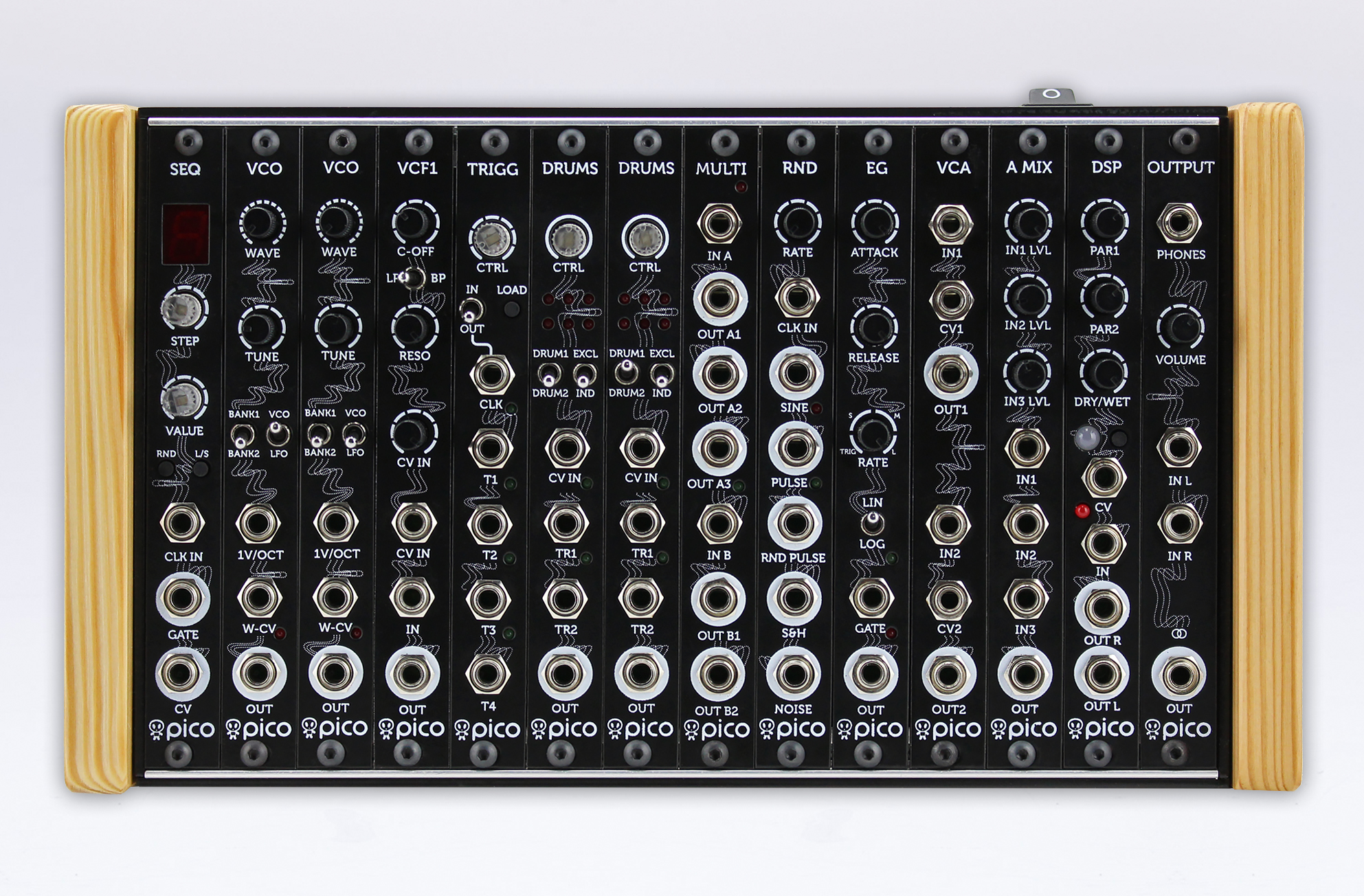

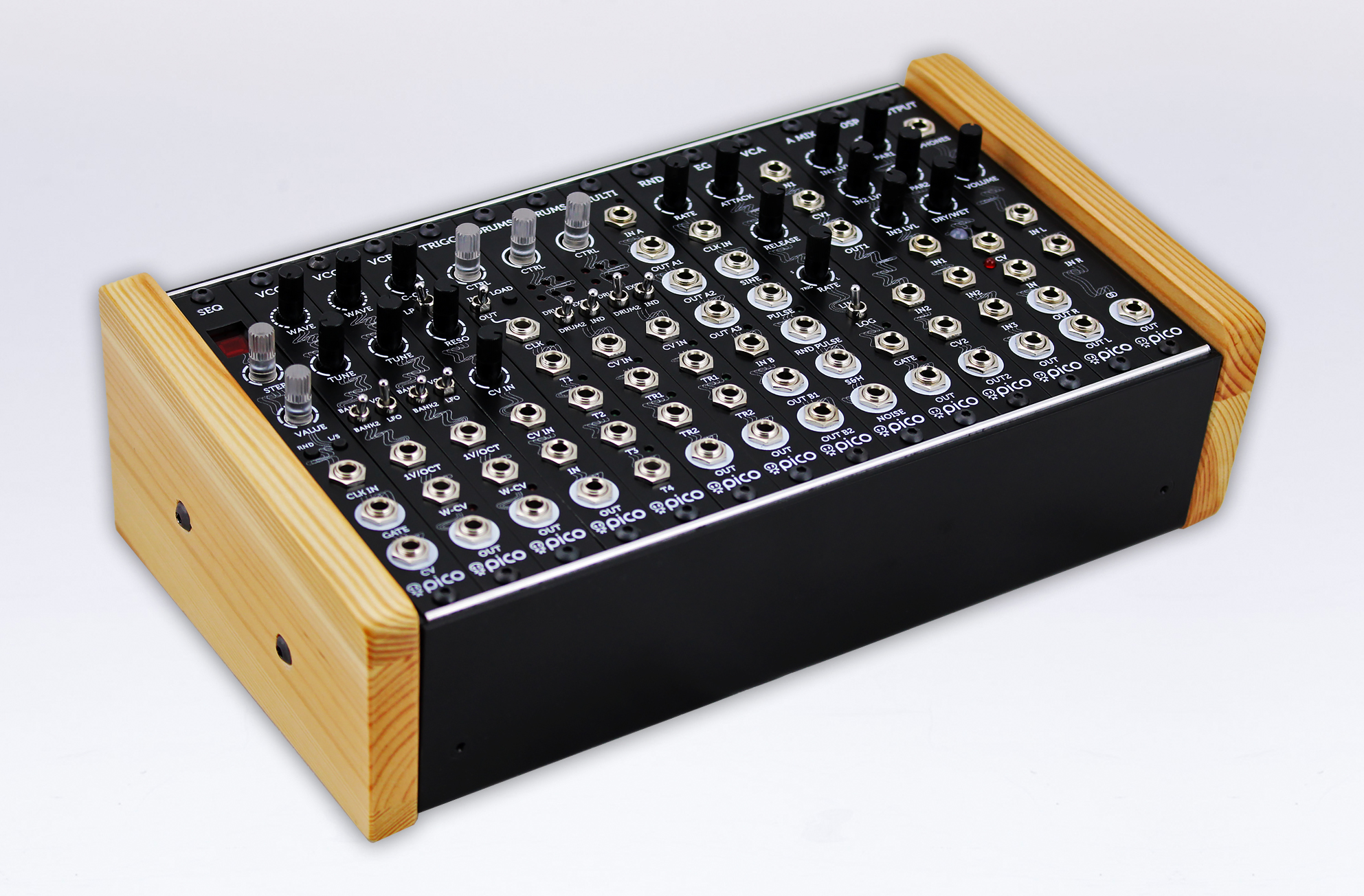

Erica Synths | Pico System


Erica Pico System I is one of the world’s smallest modular synthesizer of its functionality. It contains wisely selected modules so that beginners are introduced with basics of modular synthesizers and advanced users can play hours long live gigs. Pico System comes with patch book and 25 patch cables so you can start patching it right away!

Pico modules included in the system are:

+ SEQ – powerful 16 step sequencer with 16 pattern memory
+ 2xVCO – 32 custom waves in 2 banks, great 1V/oct tracking and LFO mode
+ VCF1 – Polivoks-inspired LP/BP VCF, ideal for acidish basslines
+ TRIGG – 4 trigger polyrhytmic pattern generator that also serves as a master clock for the system. Web-based pattern designer app allows user to upload own patterns
+ 2xDRUMS – 64 sample player with 3 adjustable parameters and CV control over them. Web-based app and Pico Programmer (included) allows user to upload his own sound samples
+ MULTI – buffered audio/CV/clock signal splitter
+ EG – lin/log ASR envelope generator that works also as LFO
+ VCA – dual linear VCA
+ RND – sine/pulse LFO and random events (random trigger, S&H and noise) generator
+ DSP – stereo effects processor with 8 great sounding custom effects
+ A MIX – 3 input audio mixer
+ OUTPUT – stereo output module with headphone amplifier
BrandErica Synths
ModelPico System
Engine TypeAnalog
Voices (max)1
LFO1 sine/pulse LFO and random events (random trigger, S&H and noise) generator
Engine Detailed2 VCO, Pulse Variable, Saw Down, Saw Up, Sine, Square, Super Saw, Triangle, White Noise
Filter (VCF)1 24dB Slope (4-pole), Band Pass, Low Pass, Resonance
Envelope (VCA)2 Attack, Sustain, Release, Looping
DrumsDual Percussion modules. 64 sample player with 3 adjustable parameters and CV control over them.
Sequencer16 step sequencer with 16 pattern memory. 4 trigger polyrhytmic pattern generator
Key typeN/A
CV-gateCV/Gate I-O
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
