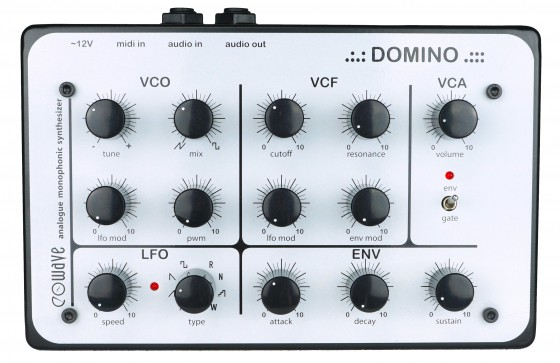

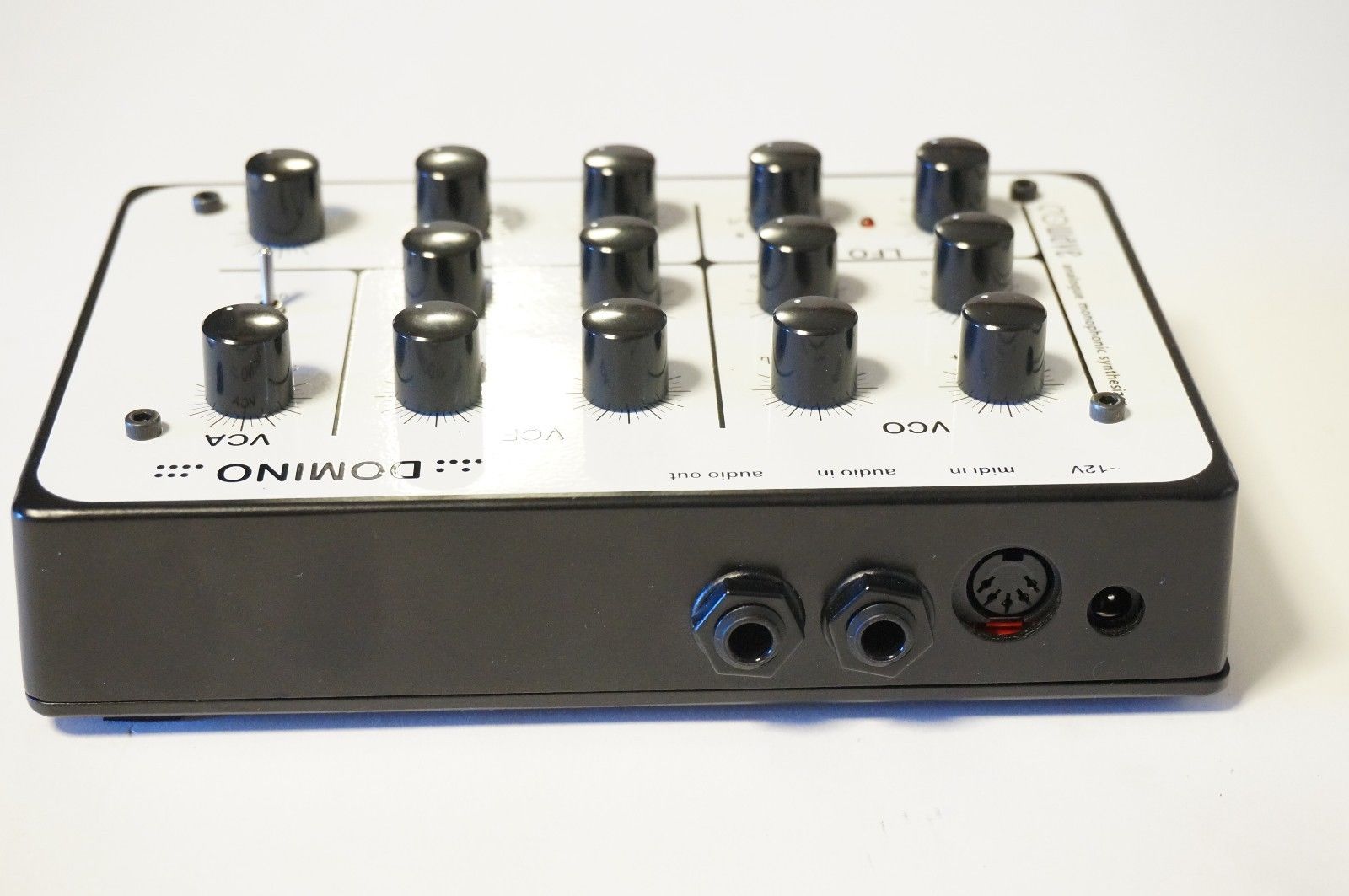

Description | .:.:DOMINO.::: is a discrete analogue synthesizer with a VCO in the tradition of the MS20 and TB303. The VCO, filter & VCA are transistor made. This transistor architecture gives .:.:DOMINO.::: a unique sound. Rich and raw at the same time, with no need of additional external effects to give it life. The VCO offers a mix between sawtooth and square. Pulsewidth can be modulated by the LFO. The filter is a 24dB resonant filter. The analogue envelope range is from 1ms to 10s with attack, decay, sustain/release. The LFO has 8 different waveforms. On waveform 8, the modulation wheel can replace the LFO. MIDI CC 8 to 16 can transform the LFO in a sequencer to modulate pitch, pulsewidth, filter cutoff. The VCA can be modulated by a gate or by an envelope. In legato mode, playing notes will generate glide between two notes. The glide time can be edited via MIDI CC. We’ve added a few more features like an arpeggiator and an accent recognition capability: all velocity values above 100 are recognised as an accent. With its small size and metal enclosure, .:.:DOMINO.::: will follow you everywhere! |
| Brand | Eowave |
| Model | Domino |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | 1 Noise, Saw Up, Saw Down, Square, Key Sync |
| Engine Detailed | 1 VCO Saw Up, Square |
| Filter (VCF) | 1 24dB Slope (4-pole), Low Pass, Resonance |
| Envelope (VCA) | ADSR |
| Sequencer | 8 step via Midi CC |
| Arpeggiator | Via Midi CC |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Mono I-O |
| Midi | I |
|
Produced: | 2012 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
