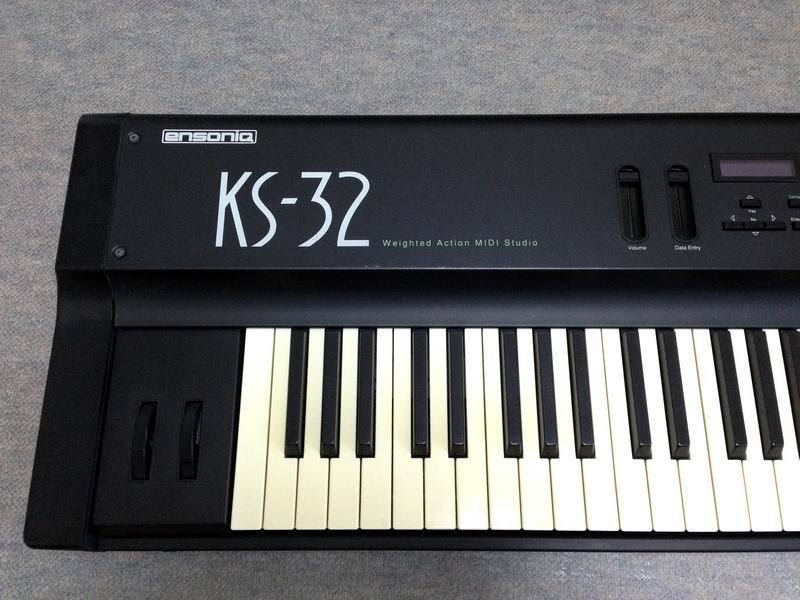

Description | The Ensoniq KS 32 Weighted Action MIDI Studio was another release in the product that started with the ESQ-1. |
| Brand | Ensoniq |
| Model | KS32 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PCM, WT |
| Voices (max) | 32 |
| Multitimbral | 16 |
| Oscillators | 3 |
| LFO | 4 Noise, Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle, Clocked, Delay, Freerun, Key Sync |
| Noise | Y |
| Engine Detailed | Pink Noise, Pulse, Pulse Variable, ROM, Saw Down, Saw Up, Sine, Square, Triangle, Wave Table, White Noise |
| Filter (VCF) | 1 24dB Slope (4-pole), Band Pass, Low Pass, Resonance |
| Envelope (VCA) | 3 Delay, Attack, Decay, Decay 2, Sustain, Sustain Level, Release, Release 2, Rate 1, Level 1, Rate 2, Level 2, Rate 3, Level 3, Rate 4, Level 4, Bi-Polar, Freerun, Looping, Monophonic, Offset, Polyphonic, Slope, Time |
| FX | Reverb, chorus, flange, phasing, delay, distortion, rotating speaker, compression, wah. |
| Memory | 100 ROM, 80 RM |
| Recording | 8 Track |
| Keys | 76 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Audio | 2x stereo out |
| Midi | I-O-T |
|
Produced: | 1992 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
